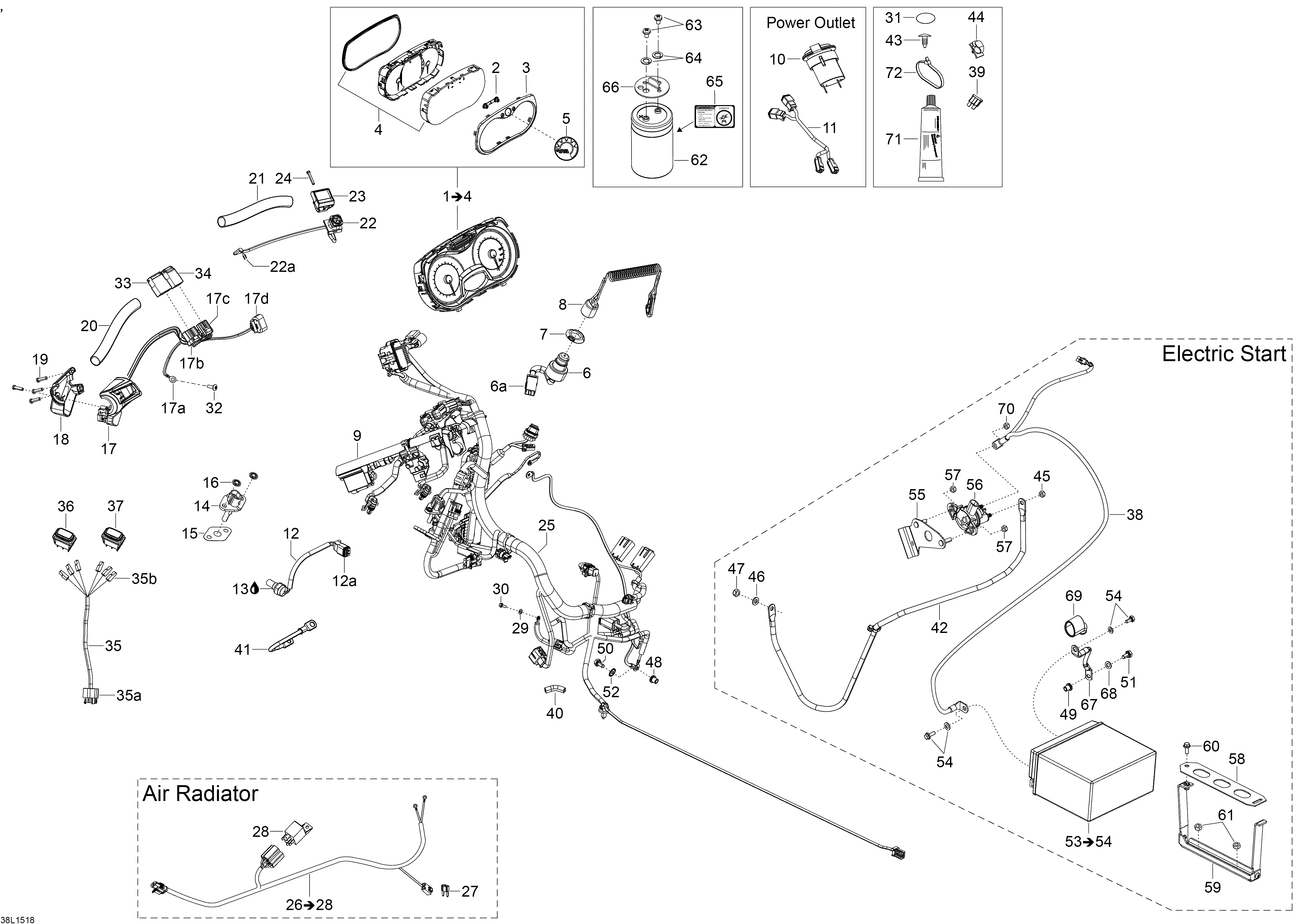

10- Electrical System для BRP Lynx BoonDocker 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177841 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
1515177839 Speedometer. (Electric Starter) Includes 1 To 4Speedometer. (Electric Starter) Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5704904616 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175232 Male TerminalMale Terminal
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178002 DESS CapDESS Cap
-
9515177134 PlatePlate
-
10710001248 DC Power OutletDC Power Outlet
-
11515177400 HarnessHarness
-
12515177813 Temperature SensorTemperature Sensor
-
12a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
12a278000632 Female TerminalFemale Terminal
-
12a278001661 Female TerminalFemale Terminal
-
12a293000052 Sealing CapSealing Cap
-
12a515175675 Female LockFemale Lock
-
14515176366 Air Temperature SensorAir Temperature Sensor
-
15508000769 RingRing
-
16389804300 Push NutPush Nut
-
17515177678 HousingHousing
-
17a515175504 Ring TerminalRing Terminal
-
17b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
17b515175231 Female TerminalFemale Terminal
-
17c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
17c515175231 Female TerminalFemale Terminal
-
17d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
18515177149 Housing PlateHousing Plate
-
19250000671 Torx ScrewTorx Screw
-
20415129879 Protector TubeProtector Tube
-
21415129879 Protector TubeProtector Tube
-
22515177362 Kill SwitchKill Switch
-
22a515175232 Male TerminalMale Terminal
-
23515177310 SupportSupport
-
24250000263 Torx ScrewTorx Screw
-
25515177541 Main HarnessMain Harness
-
26515177006 Fan Harness. (Air Radiator) Includes 26 To 28Fan Harness. (Air Radiator) Includes 26 To 28
-
27278001197 Fuse 10AFuse 10A
-
29234141601 Lock WasherLock Washer
-
30250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
31518325560 Adhesive PatchAdhesive Patch
-
32250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
33515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
33515175232 Male TerminalMale Terminal
-
34515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
34515175232 Male TerminalMale Terminal
-
35515177495 Warmer HarnessWarmer Harness
-
35a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
35b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
35b710002399 Female TerminalFemale Terminal
-
36515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
37515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
38515177496 Battery Cable With ChargingBattery Cable With Charging
-
39278001443 Fuse 25AFuse 25A
-
41515177289 Ground WireGround Wire
-
42515177208 Battery CableBattery Cable
-
43414644300 DartDart
-
44515177066 ClipClip
-
45232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
46234061410 Flat WasherFlat Washer
-
47232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
48293450275 InsertInsert
-
49293450275 InsertInsert
-
50207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
51207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
52250200041 Serrated Lock WasherSerrated Lock Washer
-
53410301203 Battery 18A. Includes 53 To 54Battery 18A. Includes 53 To 54
-
54250000282 Fastener KitFastener Kit
-
55515177558 Relay SupportRelay Support
-
56278003012 Starter RelayStarter Relay
-
57233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
58518327281 Battery StrapBattery Strap
-
59518327282 Battery StrapBattery Strap
-
60207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
61233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
62515177272 CapacitorCapacitor
-
63250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
64250200026 Lock WasherLock Washer
-
65516006206 Capacitor DecalCapacitor Decal
-
66515177193 CapCap
-
67515176780 Ground CableGround Cable
-
68234061410 Flat WasherFlat Washer
-
69570151000 Protection CapProtection Cap
-
70232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
71619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
72414115200 Tie Rap 180mmTie Rap 180mm
-
72293750008 Tie Rap 350mmTie Rap 350mm
-
72293750001 Tie Rap 94mmTie Rap 94mm
-
72605627000 Tie RapTie Rap
