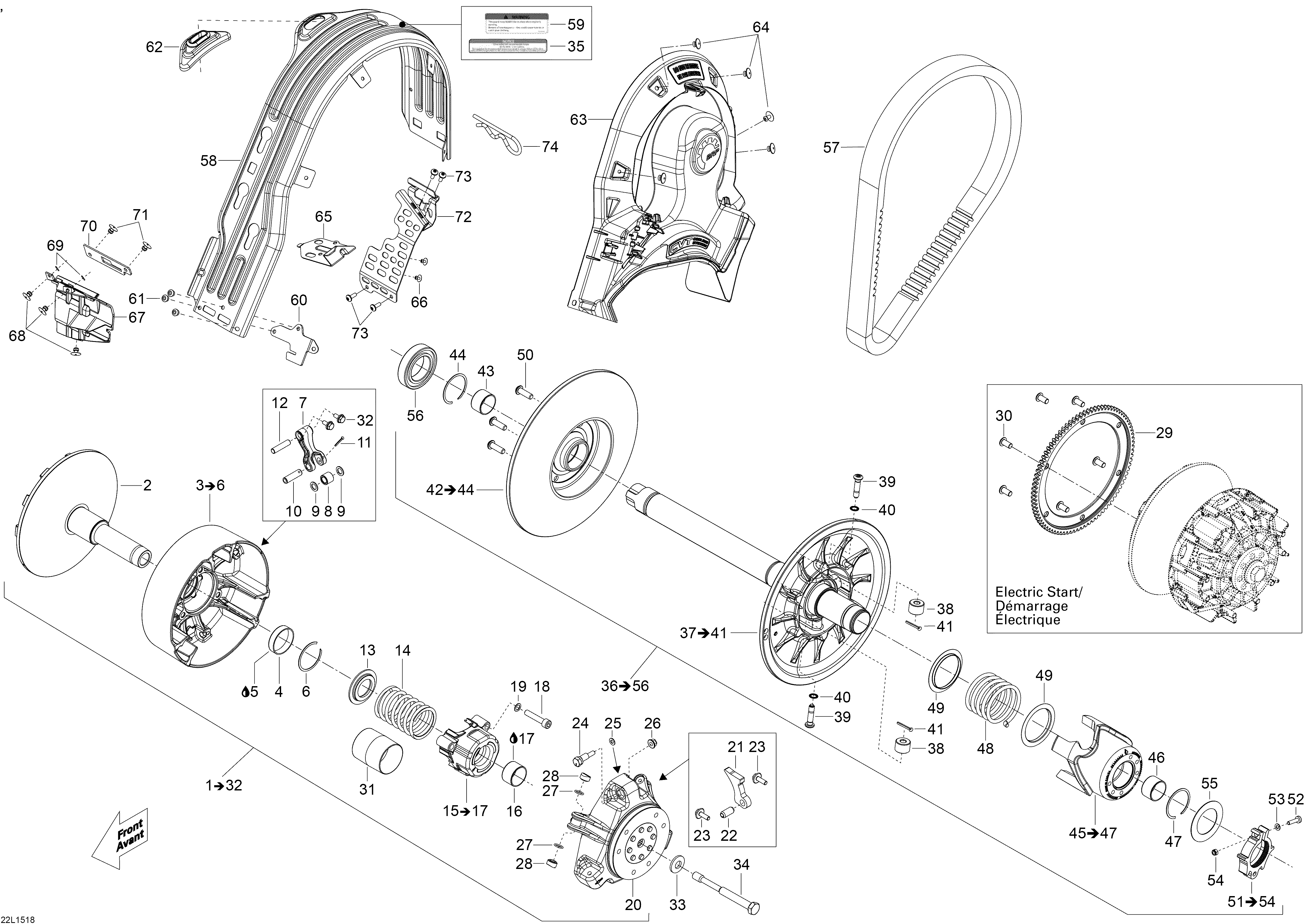

05- Pulley System для BRP Lynx BoonDocker 600 E-TEC - 2015
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4417222758 BushingBushing
-
5619600012 Loctite 609, 50mlLoctite 609, 50ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass?yLever Ass?y
-
8417222947 Roller Ass?yRoller Ass?y
-
9417004302 Stopper WasherStopper Washer
-
10417004308 PinPin
-
11250400060 Cotter PinCotter Pin
-
12417223164 Lever AxleLever Axle
-
13417222312 Spring SeatSpring Seat
-
14414817700 Spring (Blue / Green, 579-1157N)Spring (Blue / Green, 579-1157N)
-
15417007500 Spring Cover Ass'y. Includes 15 To 17Spring Cover Ass'y. Includes 15 To 17
-
16417009204 BushingBushing
-
17619600012 Loctite 609, 50mlLoctite 609, 50ml
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock Washer M8Lock Washer M8
-
20417223669 Governor CupGovernor Cup
-
21417222515 Ramp 412Ramp 412
-
22250400050 Spring Pin M10 x 22Spring Pin M10 x 22
-
23250000418 Hex. Flange Screw M6 x 18, Scotch GripHex. Flange Screw M6 x 18, Scotch Grip
-
24417223501 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
27732401030 O RingO Ring
-
28417222992 Slider ShoeSlider Shoe
-
29417223738 Ring GearRing Gear
-
30250000533 Hex. Flange Screw M8 x 16, Scotch GripHex. Flange Screw M8 x 16, Scotch Grip
-
31417009205 GuardGuard
-
32250000412 Hex. Flange Screw M6 x 12, Scotch GripHex. Flange Screw M6 x 12, Scotch Grip
-
33250200144 Spring WasherSpring Washer
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35516005503 Drive Pulley Bolt Notice DecalDrive Pulley Bolt Notice Decal
-
37417127389 Fixed Flange Ass'y. Includes 37 To 41Fixed Flange Ass'y. Includes 37 To 41
-
38417127016 RollerRoller
-
39417127294 StudStud
-
40250200009 Lock Washer M8Lock Washer M8
-
41250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
42417127317 Sliding Flange Ass'y. Includes 42 To 44Sliding Flange Ass'y. Includes 42 To 44
-
43417127318 BushingBushing
-
44293370049 CirclipCirclip
-
45417127376 Cam Ass'y (41/45?). Includes 45 To 47Cam Ass'y (41/45?). Includes 45 To 47
-
46417127318 BushingBushing
-
47293370049 CirclipCirclip
-
48417127039 Spring (700 / 1350N)Spring (700 / 1350N)
-
49417127116 Swivel AbutmentSwivel Abutment
-
50250000707 Button Head Torx Screw M8 x 25Button Head Torx Screw M8 x 25
-
51415129604 Pulley Adjuster Ass'y. Includes 51 To 54Pulley Adjuster Ass'y. Includes 51 To 54
-
52205052544 Socket HD Screw M5 x 25Socket HD Screw M5 x 25
-
53234051410 Flat Washer M5Flat Washer M5
-
54232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
55417127155 WasherWasher
-
56504152574 Ball BearingBall Bearing
-
57417300383 BeltBelt
-
58417300357 Belt GuardBelt Guard
-
59516006900 Belt Guard Security LabelBelt Guard Security Label
-
60417300423 ReinforcementReinforcement
-
61390909200 RivetRivet
-
62417300381 GuideGuide
-
63417300441 CVT Air DuctCVT Air Duct
-
64293150103 Pop Rivet 3/16Pop Rivet 3/16
-
65417300445 StopperStopper
-
66390909200 RivetRivet
-
67417300430 Front SupportFront Support
-
68293150104 Pop Rivet 3/16Pop Rivet 3/16
-
69517225900 Flat WasherFlat Washer
-
70417300421 ReinforcementReinforcement
-
71390909100 RivetRivet
-
72417300448 Belt Guard BracketBelt Guard Bracket
-
73250000145 Torx Screw M5 x 14Torx Screw M5 x 14
-
74114045200 Hair PinHair Pin
