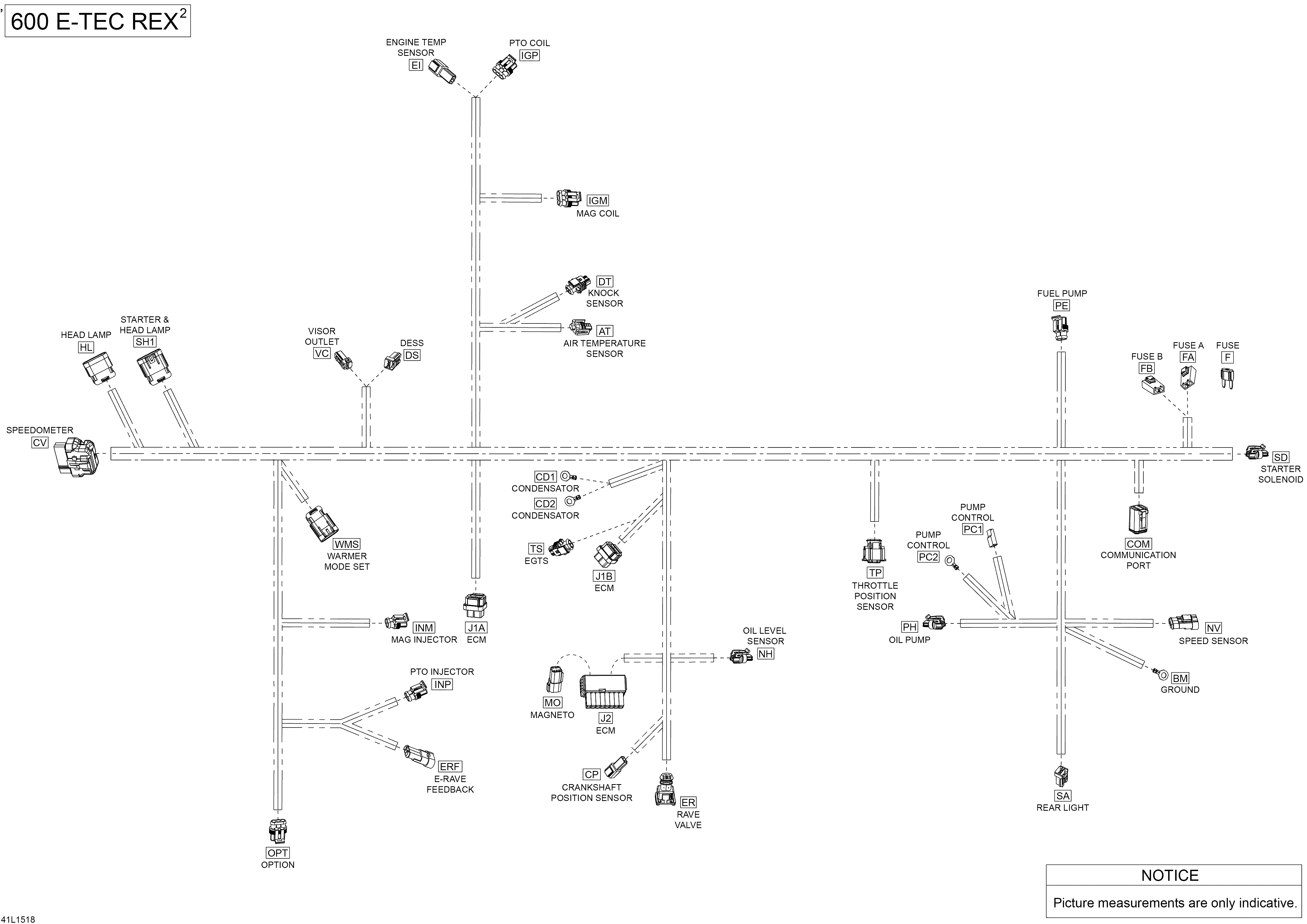

10- Electrical Harness для BRP Lynx BoonDocker 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177541 Main Harness. Includes 1 To WMSMain Harness. Includes 1 To WMS
-
2515175442 Tubing 6mmTubing 6mm
-
2409901700 Tubing 9mmTubing 9mm
-
2415079900 Tubing 11mmTubing 11mm
-
2409901800 Tubing 13mmTubing 13mm
-
2415080000 Tubing 16mmTubing 16mm
-
2409901600 Tubing 19mmTubing 19mm
-
2409902200 Tubing 25 mmTubing 25 mm
-
AT515176890 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
AT710001164 Female TerminalFemale Terminal
-
AT710001163 Wire SealWire Seal
-
BM278000992 Terminal Open BarrelTerminal Open Barrel
-
CD1515175504 Terminal Open BarrelTerminal Open Barrel
-
CD1515177246 TubingTubing
-
CD2515175504 Terminal Open BarrelTerminal Open Barrel
-
CD2515177246 TubingTubing
-
COM278002896 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
COM278001665 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
COM515175678 LockLock
-
CP278002381 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CP710001348 Male TerminalMale Terminal
-
CP409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV710000399 RetainerRetainer
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
CV515175812 PlugPlug
-
CV515175802 LockLock
-
CV515175803 Wire SealWire Seal
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
DT278002520 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DT278000998 Female TerminalFemale Terminal
-
DT415128501 Wire SealWire Seal
-
EI278002381 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
EI710001348 Male TerminalMale Terminal
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
ER415128500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ER278000998 Female TerminalFemale Terminal
-
ER415128501 Wire SealWire Seal
-
ERF710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
ERF515176164 Male TerminalMale Terminal
-
ERF515176621 Wire SealWire Seal
-
F278000344 Fuse 5AFuse 5A
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FA710000992 ClipClip
-
FA619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
FB409004000 Fuse HolderFuse Holder
-
FB409004200 Female TerminalFemale Terminal
-
FB409011600 Female TerminalFemale Terminal
-
FB710000992 ClipClip
-
FB619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
HL515177296 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
HL710001228 Female TerminalFemale Terminal
-
HL710001332 Wire SealWire Seal
-
IGM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGM278001014 Female TerminalFemale Terminal
-
IGM278001013 Wire SealWire Seal
-
IGP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGP278001014 Female TerminalFemale Terminal
-
IGP278001013 SealSeal
-
INM409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INM278001014 Female TerminalFemale Terminal
-
INM278001013 Wire SealWire Seal
-
INM619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
INP409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INP278001014 Female TerminalFemale Terminal
-
INP278001013 Wire SealWire Seal
-
INP619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
J1A515176342 Female Housing, 34 CircuitsFemale Housing, 34 Circuits
-
J1A515176541 Female TerminalFemale Terminal
-
J1A515176348 Female TerminalFemale Terminal
-
J1A515175812 PlugPlug
-
J1B515176341 Female Housing, 26 CircuitsFemale Housing, 26 Circuits
-
J1B515176541 Female TerminalFemale Terminal
-
J1B515176348 Female TerminalFemale Terminal
-
J1B515175812 PlugPlug
-
J2515176340 Female Housing, 16 CircuitsFemale Housing, 16 Circuits
-
J2278000998 Female TerminalFemale Terminal
-
J2278000999 Wire SealWire Seal
-
J2415128501 Wire SealWire Seal
-
MO710001539 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
MO278000631 Male TerminalMale Terminal
-
MO278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
NH515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
NH710001164 Female TerminalFemale Terminal
-
NH710001163 Wire SealWire Seal
-
NV710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
OPT409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
OPT710001340 Female TerminalFemale Terminal
-
OPT515176621 Wire SealWire Seal
-
PC1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
PC1409010100 Female TerminalFemale Terminal
-
PC2515175504 TerminalTerminal
-
PC2515177246 TubingTubing
-
PE710001132 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
PE278001481 Female TerminalFemale Terminal
-
PE710001133 LockLock
-
PE278001482 Wire SealWire Seal
-
PH515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PH710000925 Female TerminalFemale Terminal
-
PH710001332 Wire SealWire Seal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD710000925 Female TerminalFemale Terminal
-
SD710001332 Wire SealWire Seal
-
SH1710001929 Male Housing, 12 CircuitsMale Housing, 12 Circuits
-
SH1710001224 Male TerminalMale Terminal
-
SH1710001223 Male TerminalMale Terminal
-
SH1710001225 PlugPlug
-
SH1710001233 Wire SealWire Seal
-
SH1710001332 Wire SealWire Seal
-
TP278002521 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
TP278000998 Female TerminalFemale Terminal
-
TP415128501 Wire SealWire Seal
-
TS515177298 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
TS710001224 Female TerminalFemale Terminal
-
TS710001233 Wire SealWire Seal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
-
WMS710001927 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
WMS710001224 Female TerminalFemale Terminal
-
WMS710001233 Wire SealWire Seal
