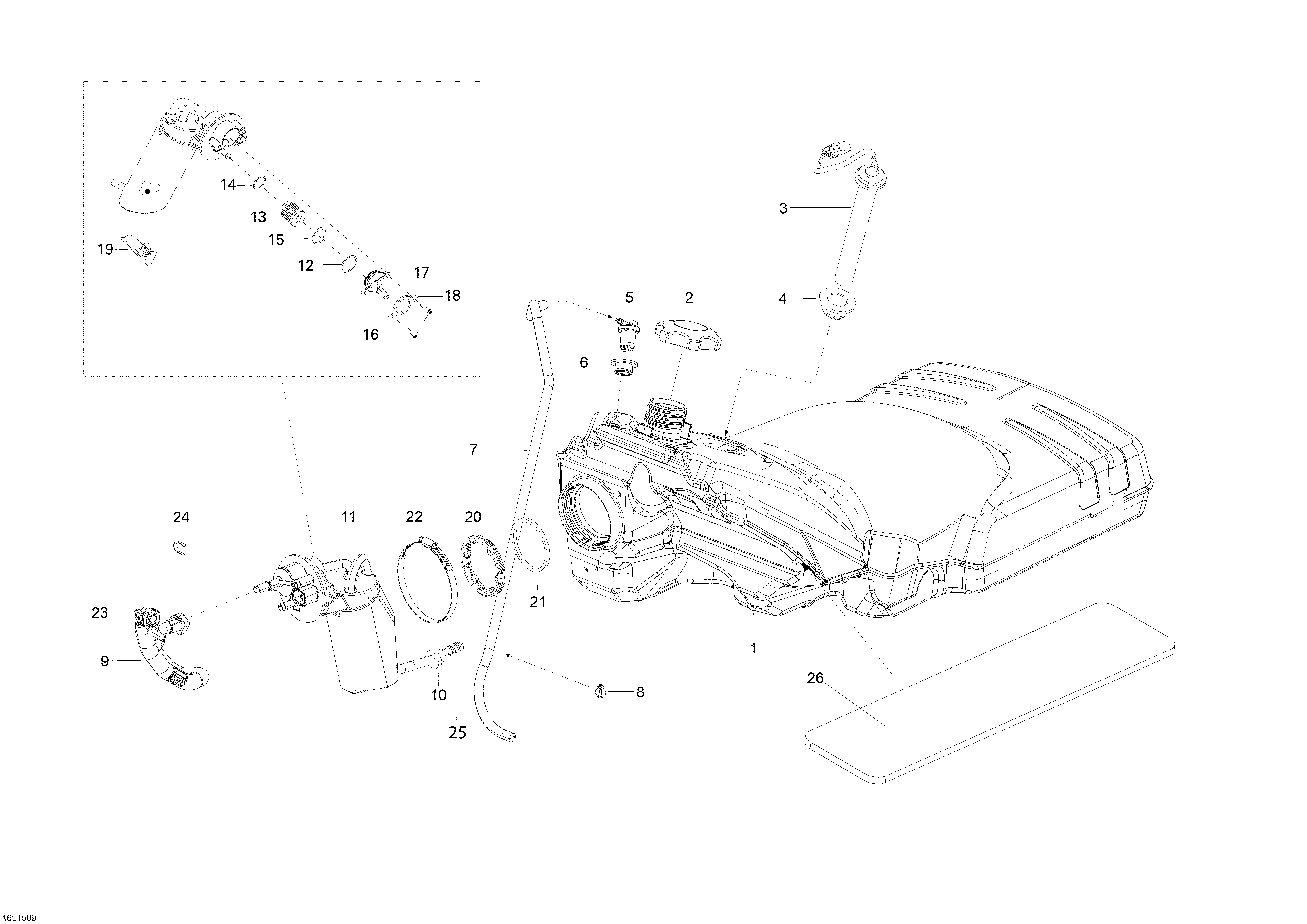

02- Fuel System для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015
-
№АртикулНазвание
-
1513033635 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 HoseHose
-
8414227300 ClipClip
-
9504153074 Protector TubeProtector Tube
-
10280000674 GrommetGrommet
-
11513033694 Fuel Pump Ass'yFuel Pump Ass'y
-
12415129509 O-RingO-Ring
-
13415129510 Fuel FilterFuel Filter
-
14415129511 O-RingO-Ring
-
15415129512 Wave WasherWave Washer
-
16415129513 ScrewScrew
-
17415129514 CoverCover
-
18415129569 Fuel Pump RingFuel Pump Ring
-
19415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
20513033180 RingRing
-
21513033334 GasketGasket
-
22513033628 ClampClamp
-
23513033583 Hose Ass'yHose Ass'y
-
24513033135 Locking ClipLocking Clip
-
25414872100 Fuel filter (in tank, fuel line)Fuel filter (in tank, fuel line)
-
26513033640 FoamFoam
