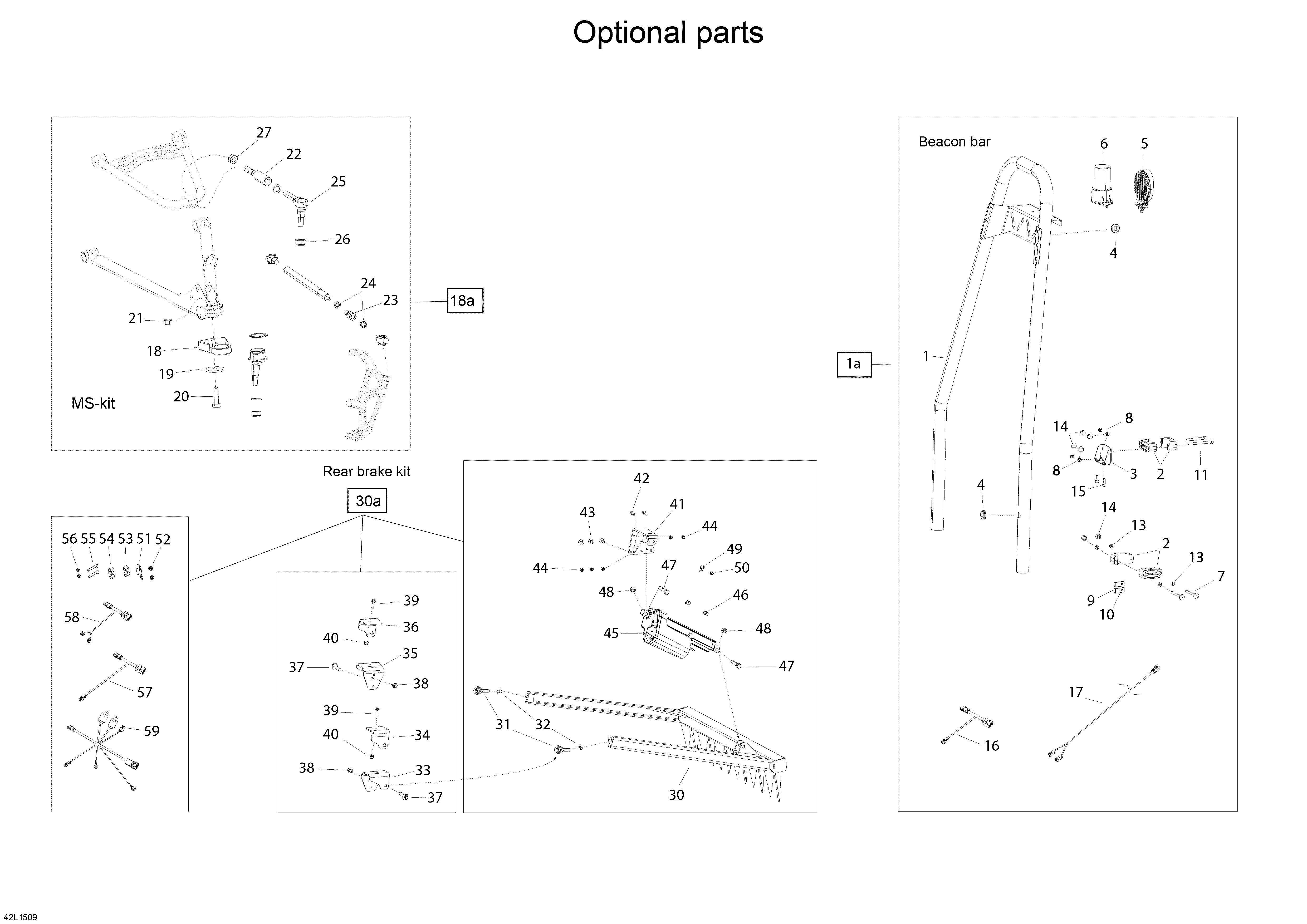

11- Optional для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015
-
№АртикулНазвание
-
1a860200755 BEACON BAR KIT (1-15). Includes 1-15.BEACON BAR KIT (1-15). Includes 1-15.
-
1520001337 BEACON BAR PREASSEMBLYBEACON BAR PREASSEMBLY
-
2520001141 BEACON BAR HALF FASTENERBEACON BAR HALF FASTENER
-
3520001202 BEACON BAR FASTENING PLATEBEACON BAR FASTENING PLATE
-
4517303756 GROMMETGROMMET
-
5520001293 WORKING LIGHT LEDWORKING LIGHT LED
-
6520001294 BEACON LIGHT ORANGE LEDBEACON LIGHT ORANGE LED
-
7207652044 SCREW-HEX.FLANGE DIN.6921SCREW-HEX.FLANGE DIN.6921
-
8233251434 NUT-FLANGE ELASTIC DIN.6926NUT-FLANGE ELASTIC DIN.6926
-
9270000141 CLIPCLIP
-
10293150144 RIVET STAVEX *STAVEX RIVETRIVET STAVEX *STAVEX RIVET
-
11207788044 BOLT-CARRIAGE DIN.603BOLT-CARRIAGE DIN.603
-
12510005735 SLEEVE 8,6 MMSLEEVE 8,6 MM
-
13232581434 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
1428056 COVERCOVER
-
15205082044 SCREW-SOCKET HD.DIN.912SCREW-SOCKET HD.DIN.912
-
16515177364 ACCESSORY HARNESSACCESSORY HARNESS
-
17515177455 LIGHT / BEACON HARNESSLIGHT / BEACON HARNESS
-
18a860200835 MS-KIT ( 18 - 29). Includes 18 - 29.MS-KIT ( 18 - 29). Includes 18 - 29.
-
18505073304 LOWER ARM EXTENSIONLOWER ARM EXTENSION
-
19505073305 WASHERWASHER
-
20207004044 SCREW-HEX.CAP DIN.931SCREW-HEX.CAP DIN.931
-
21232500416 NUT-STOP ELASTIC THIN DIN.985NUT-STOP ELASTIC THIN DIN.985
-
22505073306 UPPER ARM EXTENSIONUPPER ARM EXTENSION
-
23506152609 TIEROD EXTENSIONTIEROD EXTENSION
-
24732610010 NUT-JAM HEXAGONAL RH.NUT-JAM HEXAGONAL RH.
-
25505073308 BALL JOINTBALL JOINT
-
26250100089 NUT M12NUT M12
-
27250100088 NUT M10NUT M10
-
28232500416 NUT-STOP ELASTIC THIN DIN.985NUT-STOP ELASTIC THIN DIN.985
-
29233201414 NUT-FLANGE ELASTIC DIN.6926NUT-FLANGE ELASTIC DIN.6926
-
30a860200716 REAR BRAKE KIT (30 - 59). Includes 30 - 59.REAR BRAKE KIT (30 - 59). Includes 30 - 59.
-
30520001166 REAR BRAKE ASSEMBLYREAR BRAKE ASSEMBLY
-
31520001200 Rod endRod end
-
32250100045 NutNut
-
33520001198 BRAKE FASTENING BRACKET LHBRAKE FASTENING BRACKET LH
-
34520001320 BRAKE FASTENING BRACKET SUPPORT LHBRAKE FASTENING BRACKET SUPPORT LH
-
35520001199 BRAKE FASTENING BRACKET RHBRAKE FASTENING BRACKET RH
-
36520001321 BRAKE FASTENING BRACKET SUPPORT RHBRAKE FASTENING BRACKET SUPPORT RH
-
37207624544 SCREW-HEX.FLANGE DIN.6921SCREW-HEX.FLANGE DIN.6921
-
38232521414 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
39207683034 SCREW-HEX.FLANGE DIN.6921SCREW-HEX.FLANGE DIN.6921
-
40233281434 NUT-FLANGE ELASTIC DIN.6926NUT-FLANGE ELASTIC DIN.6926
-
41520001177 ENGINE UPPER BRACKET PAINTEDENGINE UPPER BRACKET PAINTED
-
42207182034 SCREW-HEX.CAP DIN.933SCREW-HEX.CAP DIN.933
-
43207782044 BOLT-CARRIAGE DIN.603BOLT-CARRIAGE DIN.603
-
44232581434 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
45520001201 LINEAR ACTUATORLINEAR ACTUATOR
-
46520001235 CABLE HOLDERCABLE HOLDER
-
47207125534 SCREW-HEX.CAP DIN.933SCREW-HEX.CAP DIN.933
-
48232521414 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
49705600459 CLAMPCLAMP
-
50210261040 SCREW-FORMING HEX.HD.FL.DIN.7500DSCREW-FORMING HEX.HD.FL.DIN.7500D
-
51520001197 SWITCH BRACKETSWITCH BRACKET
-
52515177436 RUBBER COVER FOR PUSH BUTTONRUBBER COVER FOR PUSH BUTTON
-
53506152395 SUPPORT GUIDON *STEERING SUPPORTSUPPORT GUIDON *STEERING SUPPORT
-
54506152610 STEERING BAR SUPPORT MACHINEDSTEERING BAR SUPPORT MACHINED
-
55250000298 TORX TRUSS M/S M8 X 50TORX TRUSS M/S M8 X 50
-
56232581434 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
57520001291 CABLE FOR LINEAR ACTUATORCABLE FOR LINEAR ACTUATOR
-
58515177489 ACCESSORY HARNESS SLOPE CONTROLACCESSORY HARNESS SLOPE CONTROL
-
59515177365 ACCESSORY HARNESSACCESSORY HARNESS
