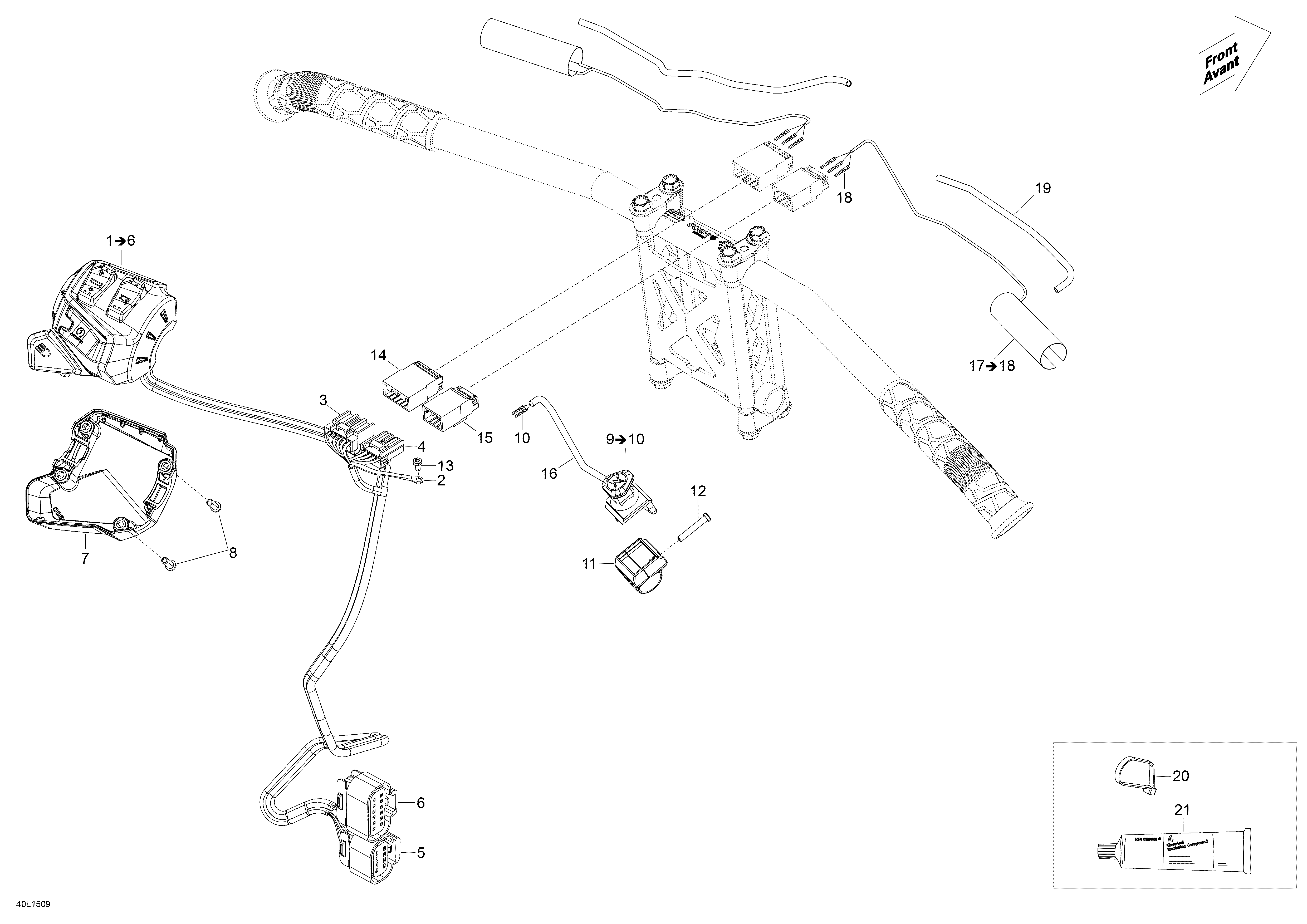

10- Steering Wiring Harness для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015
-
№АртикулНазвание
-
1515177677 LH Switch Housing. Includes 1 To 6LH Switch Housing. Includes 1 To 6
-
2515175504 Ring TerminalRing Terminal
-
3515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
3515175231 Female TerminalFemale Terminal
-
4515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
4515175231 Female TerminalFemale Terminal
-
5710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
6710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
7515177147 Switch Housing PlateSwitch Housing Plate
-
8250000671 Torx Screw #8-18Torx Screw #8-18
-
9515177362 Kill Switch. Includes 9 To 10Kill Switch. Includes 9 To 10
-
10515175232 Male TerminalMale Terminal
-
11515176825 Kill Switch SupportKill Switch Support
-
12250000263 Torx Screw #8-18Torx Screw #8-18
-
13250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
14515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
15515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
16515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
17506152428 Heated Film, 25W. Includes 17 To 18Heated Film, 25W. Includes 17 To 18
-
18515175232 Male TerminalMale Terminal
-
19515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
20414115200 Tie-Rap 180mmTie-Rap 180mm
-
21619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
