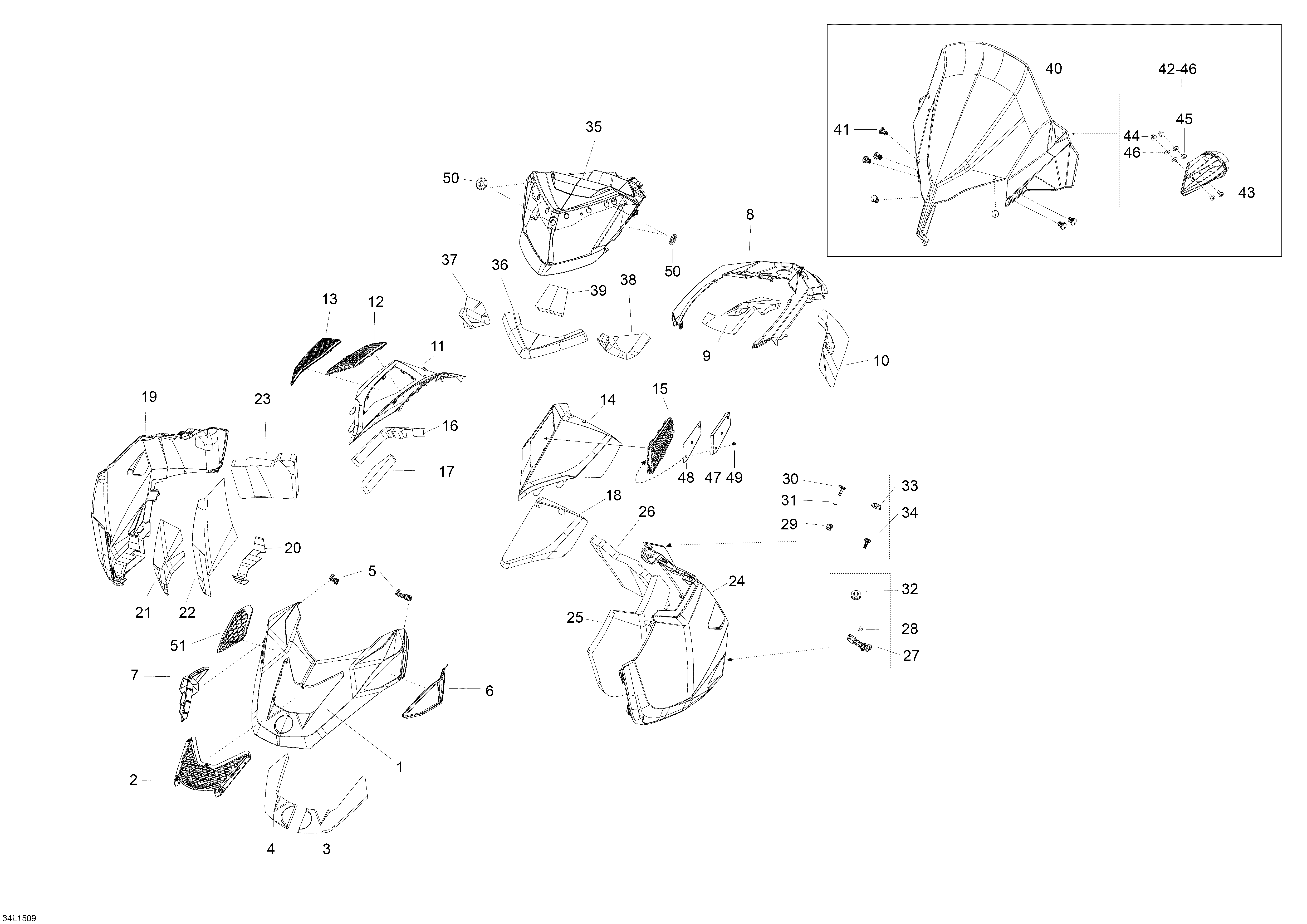

09- Hood And Windshield для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015
-
№АртикулНазвание
-
1517305257 HoodHood
-
2517304843 Hood grill frontHood grill front
-
3517304330 Isolation L.H.Isolation L.H.
-
4517304214 Isolation R.H.Isolation R.H.
-
5517304289 LatchLatch
-
6508000609 Air filterAir filter
-
7517304155 Scoop grillScoop grill
-
8517305258 ConsoleConsole
-
9517305326 Isolation rightIsolation right
-
10517305644 Isolation leftIsolation left
-
11517304826 R.H. Upper Side panel, whiteR.H. Upper Side panel, white
-
12517304015 R.H. Acces panel grillR.H. Acces panel grill
-
13517304016 R.H. Lower sidepanel grillR.H. Lower sidepanel grill
-
14517304837 L.H. Upper Side panel, whiteL.H. Upper Side panel, white
-
15517303893 L.H. Acces panel grillL.H. Acces panel grill
-
16517304311 IsolationIsolation
-
17517304312 IsolationIsolation
-
18517304313 IsolationIsolation
-
19517304866 R.H. Side panelR.H. Side panel
-
20517304215 Heat protector alu foilHeat protector alu foil
-
21517304216 Heat protector alu foilHeat protector alu foil
-
22517303890 R.H. IsolationR.H. Isolation
-
23517304310 R.H. Isolation rearR.H. Isolation rear
-
24517305533 L.H. SidepanelL.H. Sidepanel
-
25517303891 L.H. IsolationL.H. Isolation
-
26517304309 L.H. Isolation rearL.H. Isolation rear
-
27517304572 LatchLatch
-
28605636003 RivetRivet
-
29517304297 Quarter-turn fastenerQuarter-turn fastener
-
30517304296 Quarter-turn handleQuarter-turn handle
-
31517304538 Locking plateLocking plate
-
32517303756 GrommetGrommet
-
33517304075 End pieceEnd piece
-
34517304573 Latch-panelLatch-panel
-
35517305281 Indicator supportIndicator support
-
36517304314 Isolation frontIsolation front
-
37517304315 Isolation rightIsolation right
-
38517304316 Isolation leftIsolation left
-
39517304319 Isolation middleIsolation middle
-
40860201000 Windshield Ass`yWindshield Ass`y
-
41517304744 KnobKnob
-
42517305787 Mirror Ass'y RH/LHMirror Ass'y RH/LH
-
43250000129 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
44232361493 Nut Hexagonal Domed M6Nut Hexagonal Domed M6
-
45250200024 Rubber Washer M5Rubber Washer M5
-
4620117 WasherWasher
-
47517305311 InsulatorInsulator
-
48502007312 Grill plateGrill plate
-
49414644300 DartDart
-
50517303756 GrommetGrommet
-
51517304855 Intake grillIntake grill
