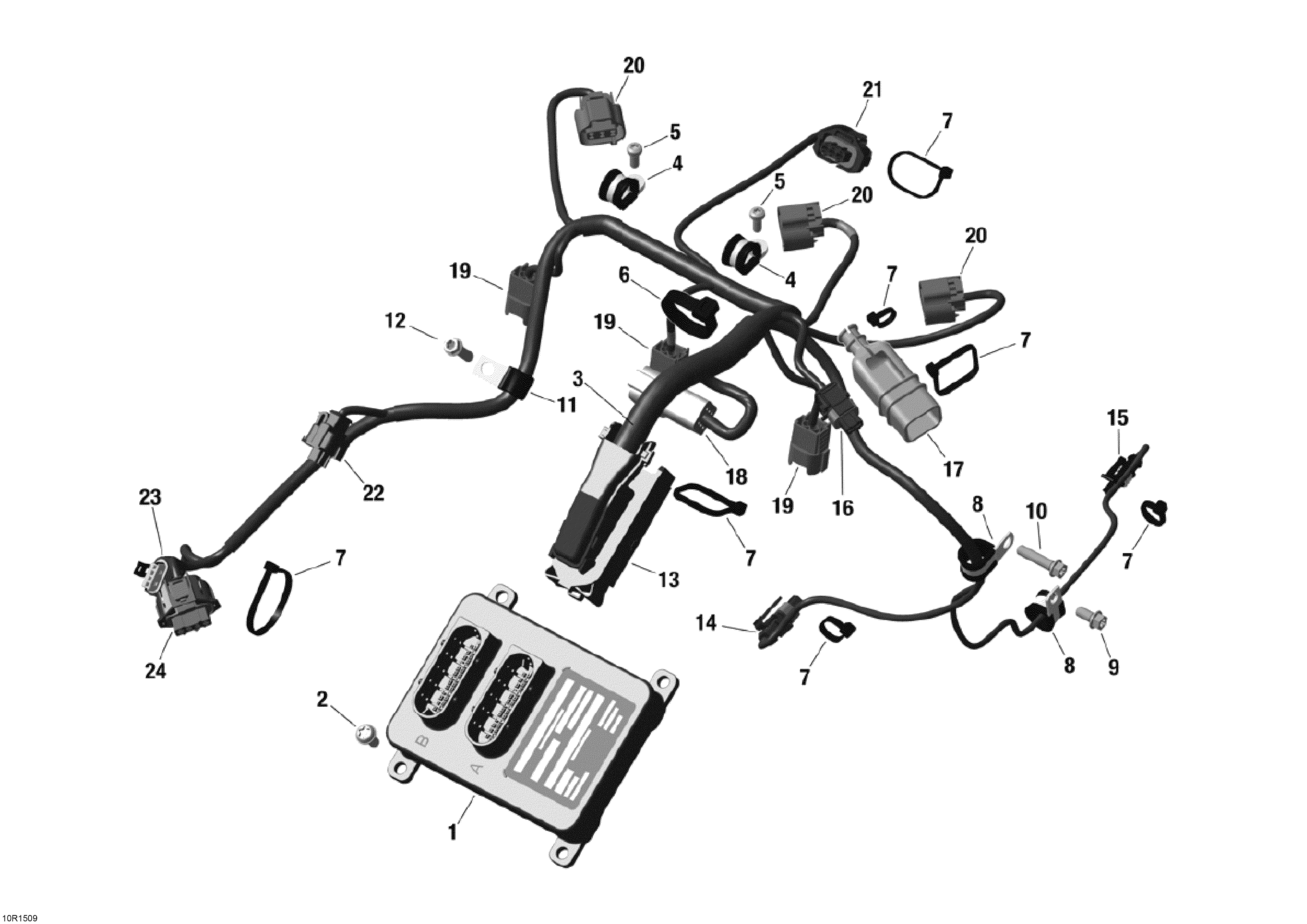

10- Engine Harness And Electric Module для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015
-
№АртикулНазвание
-
1420666128 Engine Control ModuleEngine Control Module
-
2420641588 Torx Flanged Screw M6 x 16. Tightening Torque 6 NmTorx Flanged Screw M6 x 16. Tightening Torque 6 Nm
-
3420665638 Wiring Harness Ass'yWiring Harness Ass'y
-
4420851108 ClampClamp
-
5420640086 Torx Screw M5 x 12. Tightening Torque 5 NmTorx Screw M5 x 12. Tightening Torque 5 Nm
-
6420866716 Tie-RapTie-Rap
-
7420651396 Tie RapTie Rap
-
8420851492 Cable ClampCable Clamp
-
9420440147 Torx Screw M6 x 12Torx Screw M6 x 12
-
10420440234 Torx Screw M6 x 25. Tightening Torque 11 NmTorx Screw M6 x 25. Tightening Torque 11 Nm
-
11420251812 Cable ClampCable Clamp
-
12420440234 Torx Screw M6 x 25. Tightening Torque 11 NmTorx Screw M6 x 25. Tightening Torque 11 Nm
-
13420664450 Connector HousingConnector Housing
-
17420201070 ProtectorProtector
