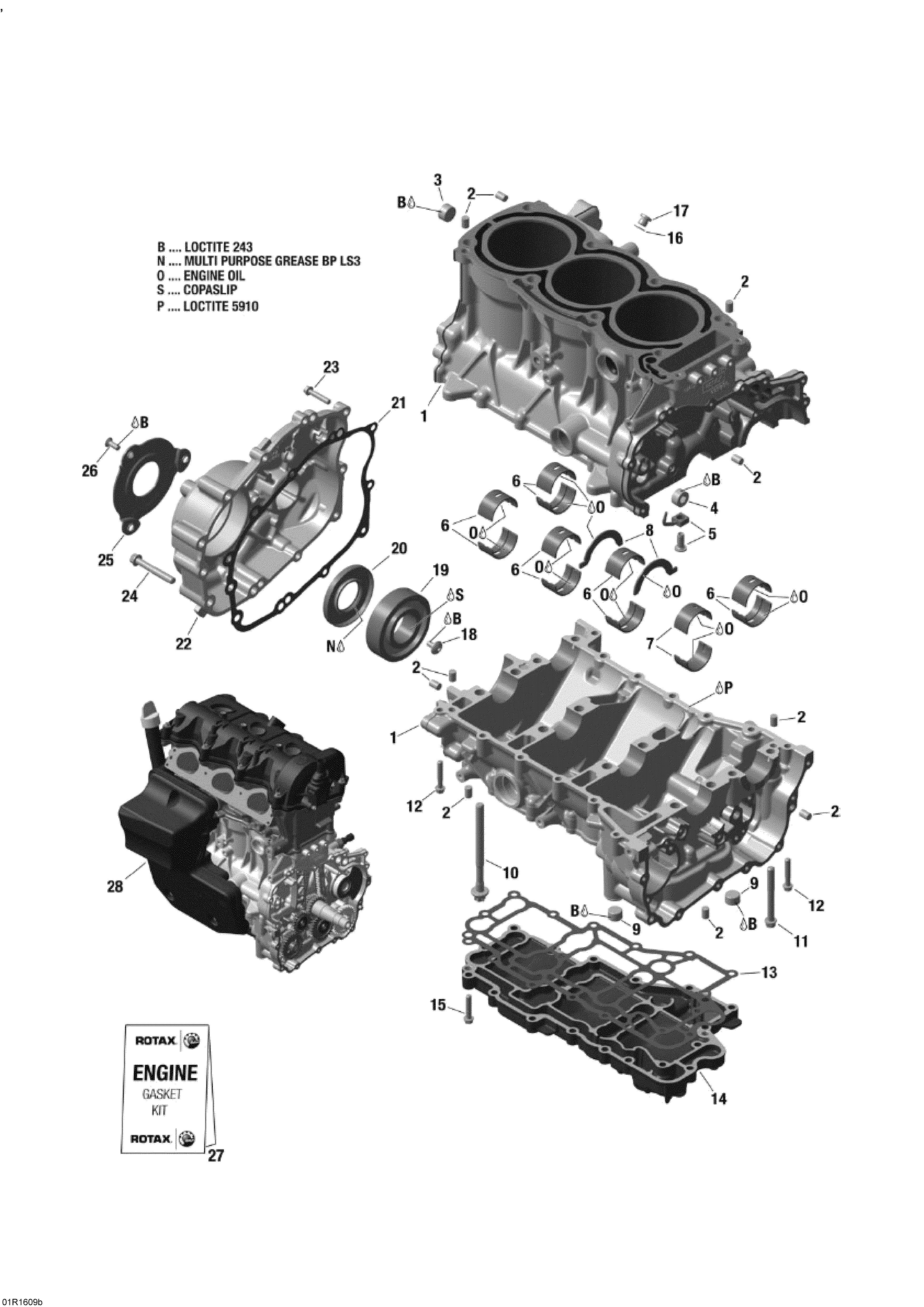

01- Engine Block - 1200 4-TEC для BRP Lynx Adventure GT (4-Stroke) - 2016
-
№АртикулНазвание
-
1420891887 Engine Block Ass'y. Includes 1 To 7Engine Block Ass'y. Includes 1 To 7
-
2420632010 Pin 8 x 12Pin 8 x 12
-
3420840415 Plug Screw M18 x 1.5. Tightening Torque 20 NmPlug Screw M18 x 1.5. Tightening Torque 20 Nm
-
4420240170 Plug Screw M18 x 1.5. Tightening Torque 20 NmPlug Screw M18 x 1.5. Tightening Torque 20 Nm
-
5420956774 Oil Spray Nozzle. Tightening Torque 19 NmOil Spray Nozzle. Tightening Torque 19 Nm
-
6420933852 Plain BearingPlain Bearing
-
7420933862 Plain BearingPlain Bearing
-
8420933140 Ring HalfRing Half
-
9420240178 Plug Screw M16 x 1.5. Tightening Torque 16 NmPlug Screw M16 x 1.5. Tightening Torque 16 Nm
-
10420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +120°Torx Screw M9 x 113. Tightening Torque 20 Nm +120°
-
11420840211 Flanged Torx Screw M8 x 70. Tightening Torque 25 NmFlanged Torx Screw M8 x 70. Tightening Torque 25 Nm
-
12420440274 Flanged Torx Screw M6 x 35. Tightening Torque 11 NmFlanged Torx Screw M6 x 35. Tightening Torque 11 Nm
-
13420430770 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
14420611822 Oil Sump CoverOil Sump Cover
-
15420440649 Flanged Torx Screw M6 x 30. Tightening Torque 11 NmFlanged Torx Screw M6 x 30. Tightening Torque 11 Nm
-
16420230150 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
17420641733 Plug Screw M10 x 1. Tightening Torque 12 NmPlug Screw M10 x 1. Tightening Torque 12 Nm
-
18420241535 Hex. Screw M6 x 13. Tightening Torque 11 NmHex. Screw M6 x 13. Tightening Torque 11 Nm
-
19420432125 Ball BearingBall Bearing
-
20420431402 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
21420430760 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
22420611845 PTO CoverPTO Cover
-
23420440647 Flanged Torx Screw M6 x 30. Tightening Torque 11 NmFlanged Torx Screw M6 x 30. Tightening Torque 11 Nm
-
24420641213 Flanged Torx Screw M8 x 55. Tightening Torque 25 NmFlanged Torx Screw M8 x 55. Tightening Torque 25 Nm
-
25420910240 Oil Seal CoverOil Seal Cover
-
26420440906 Countersunk Screw M6 x 16. Tightening Torque 11 NmCountersunk Screw M6 x 16. Tightening Torque 11 Nm
-
27420893054 Engine Gasket KitEngine Gasket Kit
-
28300120303 Long Block 1203 4-TECLong Block 1203 4-TEC
