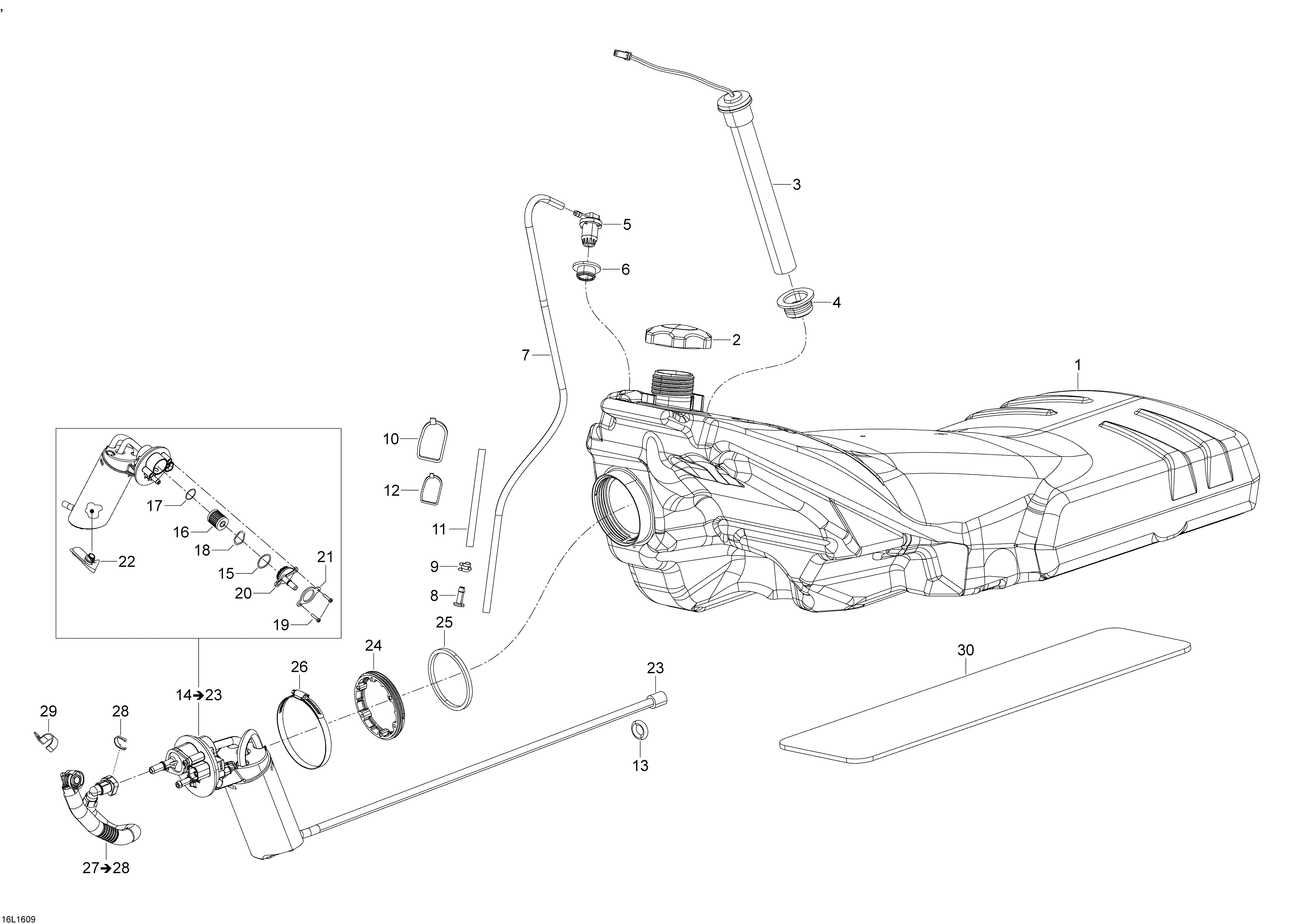

02- Fuel System для BRP Lynx Adventure GT (4-Stroke) - 2016
-
№АртикулНазвание
-
1513033757 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose (780mm)Hose (780mm)
-
8513033821 Hose ConnectorHose Connector
-
9414554800 Spring ClampSpring Clamp
-
10414115200 Tie-Rap 180mmTie-Rap 180mm
-
11504153468 Protector TubeProtector Tube
-
12293750002 Tie-Rap 142mm. Model-900 ACETie-Rap 142mm. Model-900 ACE
-
13293300184 O RingO Ring
-
14513033694 Fuel Pump Ass'y. Includes 14 To 23Fuel Pump Ass'y. Includes 14 To 23
-
15415129509 O-RingO-Ring
-
16415129510 Fuel FilterFuel Filter
-
17415129511 O-RingO-Ring
-
18415129512 Wave WasherWave Washer
-
19415129513 ScrewScrew
-
20415129685 CoverCover
-
21415129569 Fuel Pump RingFuel Pump Ring
-
22415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
23414872100 Fuel Filter (In Tank, Fuel Line)Fuel Filter (In Tank, Fuel Line)
-
24513033180 RingRing
-
25513033334 GasketGasket
-
26513033628 ClampClamp
-
27513033582 Hose Ass'y. Includes 27 To 28, Model-900 ACEHose Ass'y. Includes 27 To 28, Model-900 ACE
-
27513033583 Hose Ass'y. Includes 27 To 28, Model-1200 4-TECHose Ass'y. Includes 27 To 28, Model-1200 4-TEC
-
28513033135 Locking ClipLocking Clip
-
29293850125 Open Clamp. Model-1200 4-TECOpen Clamp. Model-1200 4-TEC
-
30513033788 Insulate FoamInsulate Foam
