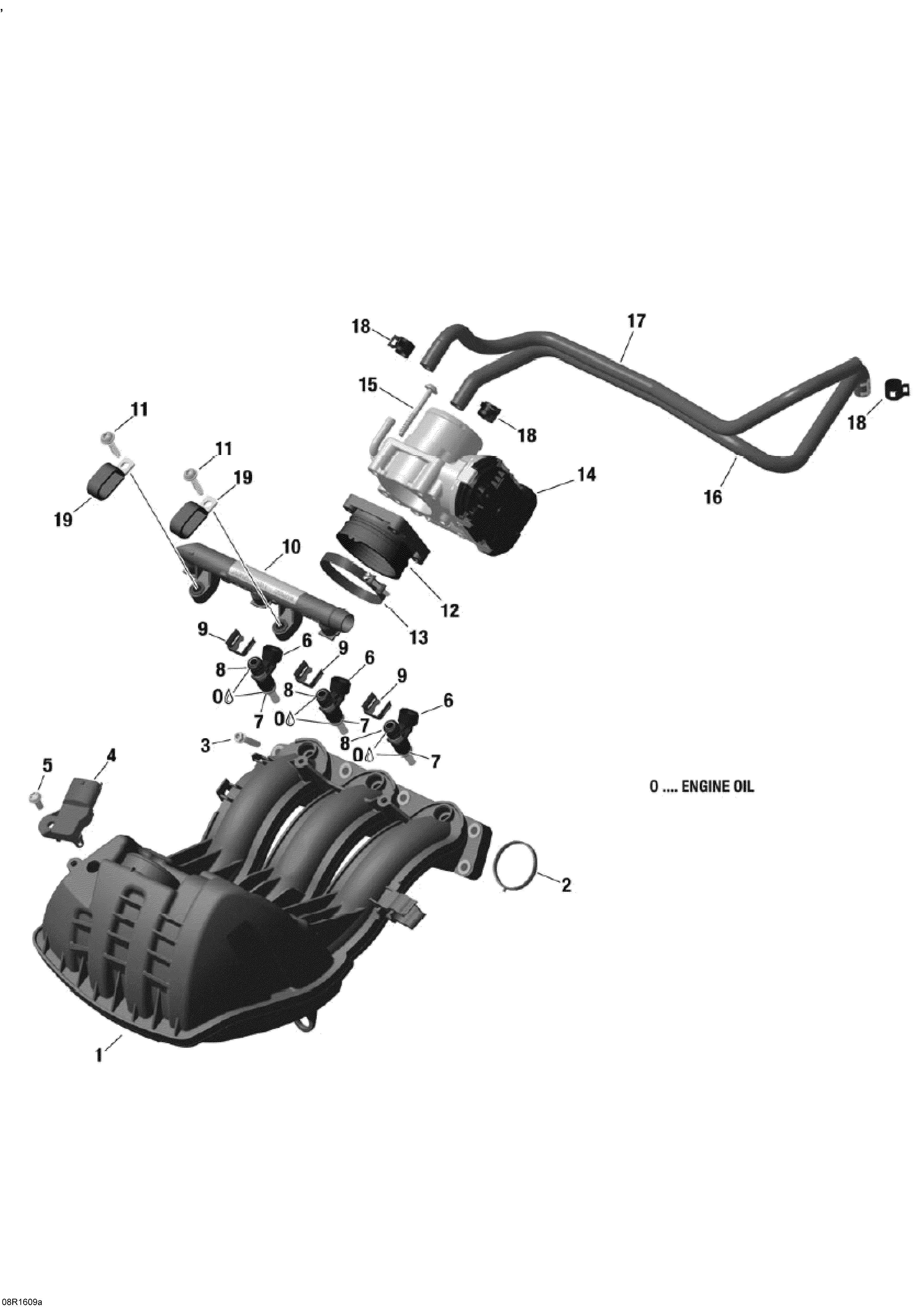

02- Air Intake Manifold And Throttle Body - 900 ACE для BRP Lynx Adventure GT (4-Stroke) - 2016
-
№АртикулНазвание
-
1420867340 Airbox Ass'y. Includes 1 To 2Airbox Ass'y. Includes 1 To 2
-
2420431662 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
4707000995 Pressure/Temp SensorPressure/Temp Sensor
-
5420641588 Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%
-
6420874838 Injection Valve (Deka VII Type 0). Includes 6 To 8Injection Valve (Deka VII Type 0). Includes 6 To 8
-
7420431890 O Ring. Included In Gasket KitO Ring. Included In Gasket Kit
-
8420631220 O Ring. Included In Gasket KitO Ring. Included In Gasket Kit
-
9420853030 Injector ClipInjector Clip
-
10420874965 Fuel RailFuel Rail
-
11420441573 Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
12420867110 Connecting SocketConnecting Socket
-
13420251830 Hose ClampHose Clamp
-
14420893148 Throttle Body Ass'yThrottle Body Ass'y
-
15420441588 Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
-
16420201505 Molded Hose (Water Out)Molded Hose (Water Out)
-
17420201500 Molded Hose (Water In)Molded Hose (Water In)
-
18420853511 ClampClamp
-
19420951830 Double ClampDouble Clamp
