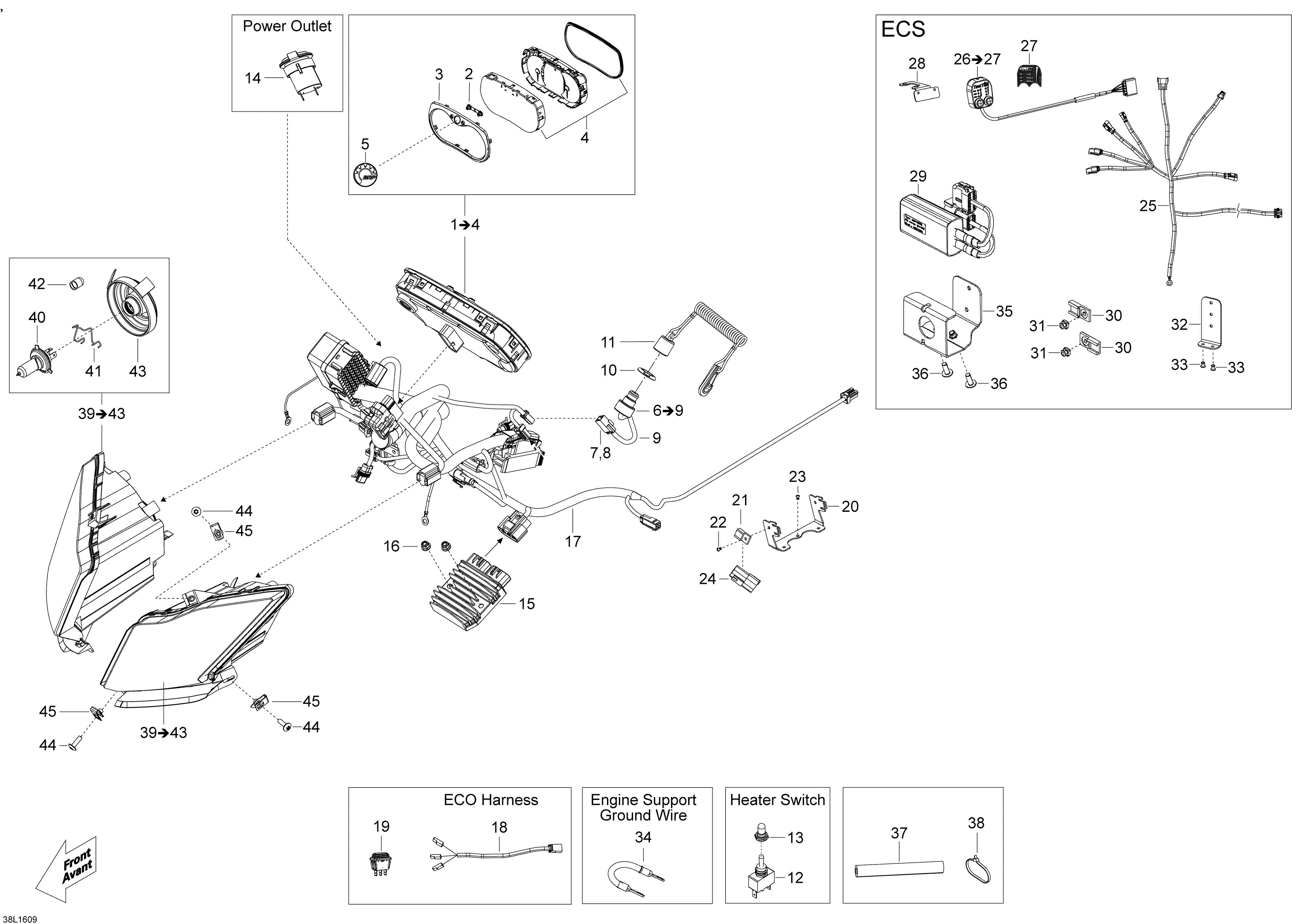

10- Electrical System для BRP Lynx Adventure GT (4-Stroke) - 2016
-
№АртикулНазвание
-
1515177913 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5516006224 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 TubingTubing
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
11515177807 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12410110700 Heater Switch. Model-ECSHeater Switch. Model-ECS
-
13515175281 Switch Cover. Model-ECSSwitch Cover. Model-ECS
-
14710001248 DC Power OutletDC Power Outlet
-
15515177325 RegulatorRegulator
-
16233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
17515177939 Main Harness. Model-900 ACEMain Harness. Model-900 ACE
-
17515177937 Main Harness. Model-1200 4-TECMain Harness. Model-1200 4-TEC
-
18515177568 ECO HarnessECO Harness
-
19515177569 ECO Rocker SwitchECO Rocker Switch
-
20515177073 Fusebox SupportFusebox Support
-
21270000141 ClipClip
-
22293150037 RivetRivet
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24710003006 HousingHousing
-
25515177976 ECS Harness. Model-ECSECS Harness. Model-ECS
-
26515177777 Control Box Ass'y. Includes 26 To 27, Model-ECSControl Box Ass'y. Includes 26 To 27, Model-ECS
-
27515177778 Control Box Decal. Model-ECSControl Box Decal. Model-ECS
-
28515178101 Control Box Fastener. Model-ECSControl Box Fastener. Model-ECS
-
29515177780 Control Box TCU-4. Model-ECSControl Box TCU-4. Model-ECS
-
30270000141 Clip. Model-ECSClip. Model-ECS
-
31293150037 Rivet. Model-ECSRivet. Model-ECS
-
32515177944 Wire Support Plate. Model-ECSWire Support Plate. Model-ECS
-
33390909200 Rivet. Model-ECSRivet. Model-ECS
-
34515176883 Ground CableGround Cable
-
35503194013 Support. Model-ECSSupport. Model-ECS
-
36250000721 Torx Truss Screw M6 x 16. Model-ECSTorx Truss Screw M6 x 16. Model-ECS
-
3739066 Aluminum Coated Tube (150mm). Model-1200 4-TECAluminum Coated Tube (150mm). Model-1200 4-TEC
-
38414115200 Tie Rap 180mmTie Rap 180mm
-
38293750001 Tie-Rap 94mmTie-Rap 94mm
-
38293750002 Tie-Rap 130mmTie-Rap 130mm
-
39517304194 RH Headlamp. Includes 39 To 43RH Headlamp. Includes 39 To 43
-
39517304195 LH Headlamp. Includes 39 To 43LH Headlamp. Includes 39 To 43
-
40515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
42515176498 CapCap
-
43515176499 CoverCover
-
44250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
45250100113 Panel Nut M6Panel Nut M6
