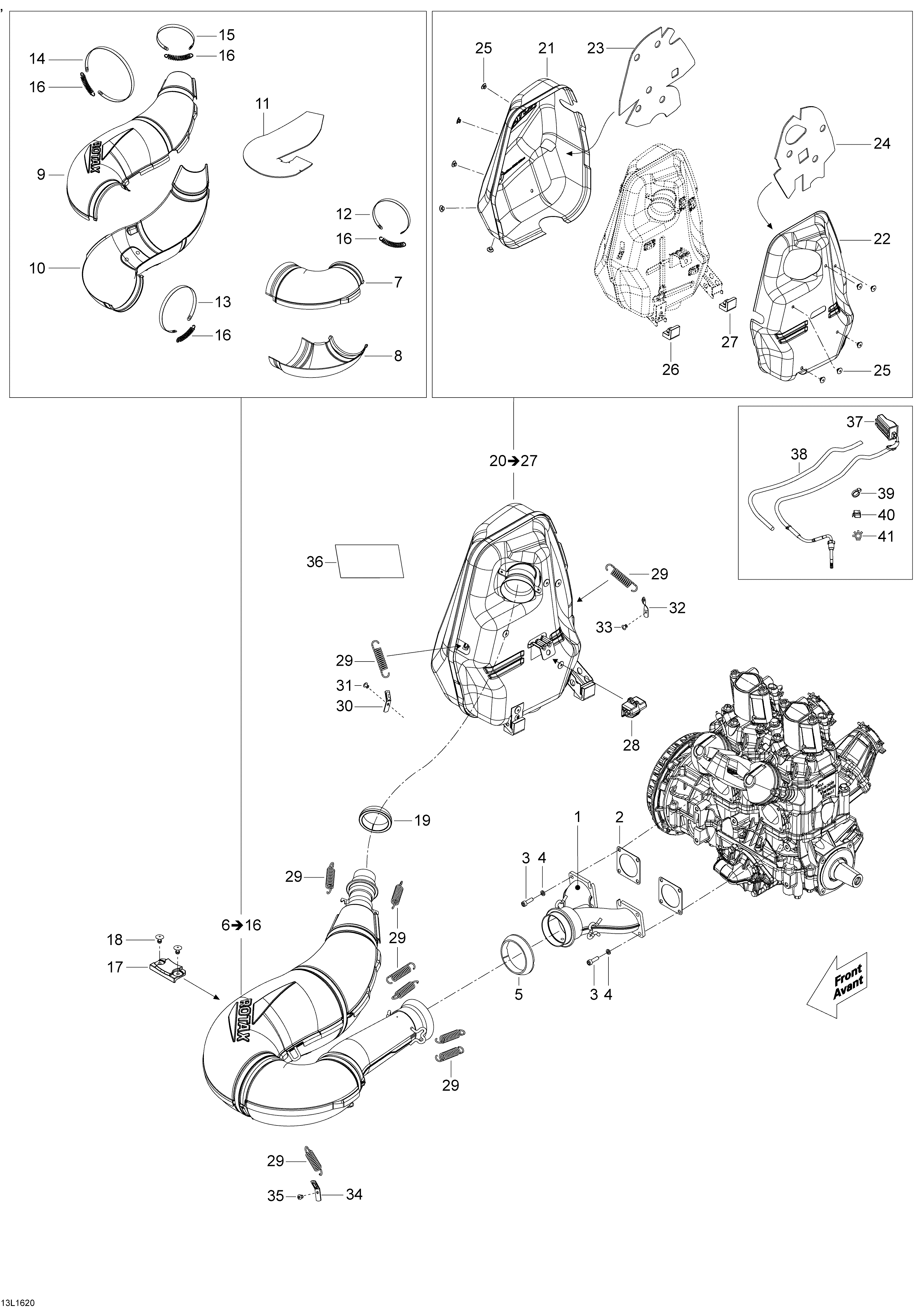

01- Exhaust System для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1420673420 Exhaust Manifold. Model-600 E-TECExhaust Manifold. Model-600 E-TEC
-
1420673373 Exhaust Manifold. Model-800 E-TECExhaust Manifold. Model-800 E-TEC
-
2420850552 Gasket. Model-600 E-TECGasket. Model-600 E-TEC
-
2420430482 Gasket. Model-800 E-TECGasket. Model-800 E-TEC
-
3514054626 Socket Screw M6 x 22. Model-600 E-TECSocket Screw M6 x 22. Model-600 E-TEC
-
3250000414 Socket Screw M8 x 22. Model-800 E-TECSocket Screw M8 x 22. Model-800 E-TEC
-
4514053953 Washer. Model-600 E-TECWasher. Model-600 E-TEC
-
4250200111 Washer. Model-800 E-TECWasher. Model-800 E-TEC
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055065 Tune Pipe Ass'y. Includes 6 To 16, Model-600 E-TECTune Pipe Ass'y. Includes 6 To 16, Model-600 E-TEC
-
6514055063 Tune Pipe Ass'y. Includes 6 To 16, Model-800 E-TECTune Pipe Ass'y. Includes 6 To 16, Model-800 E-TEC
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
18293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
19514054174 Exhaust GasketExhaust Gasket
-
20514054970 Muffler Ass'y. Includes 20 To 27, Model-600 E-TECMuffler Ass'y. Includes 20 To 27, Model-600 E-TEC
-
20514055083 Muffler Ass'y. Includes 20 To 27, Model-800 E-TECMuffler Ass'y. Includes 20 To 27, Model-800 E-TEC
-
21514054985 RH Deflector. Model-600 E-TECRH Deflector. Model-600 E-TEC
-
21514054986 RH Deflector. Model-800 E-TECRH Deflector. Model-800 E-TEC
-
22514054967 LH DeflectorLH Deflector
-
23514054711 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
26514054274 Lower StopperLower Stopper
-
27514054496 Lower StopperLower Stopper
-
28514054606 Upper StopperUpper Stopper
-
29415107100 SpringSpring
-
30514054974 Spring BracketSpring Bracket
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32514054974 Spring BracketSpring Bracket
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34514054975 Spring BracketSpring Bracket
-
35293150147 RivetRivet
-
36514054987 Heat ShieldHeat Shield
-
37514054870 Temperature Sensor. Model-600 E-TECTemperature Sensor. Model-600 E-TEC
-
37415130000 Single Thermocouple Module. Model-800 E-TECSingle Thermocouple Module. Model-800 E-TEC
-
38515175442 Protector Tube. Model-600 E-TECProtector Tube. Model-600 E-TEC
-
39293750001 Tie-Rap 94mm. Model-600 E-TECTie-Rap 94mm. Model-600 E-TEC
-
40414227300 Spring ClipSpring Clip
-
41514055100 Lock. Model-800 E-TECLock. Model-800 E-TEC
