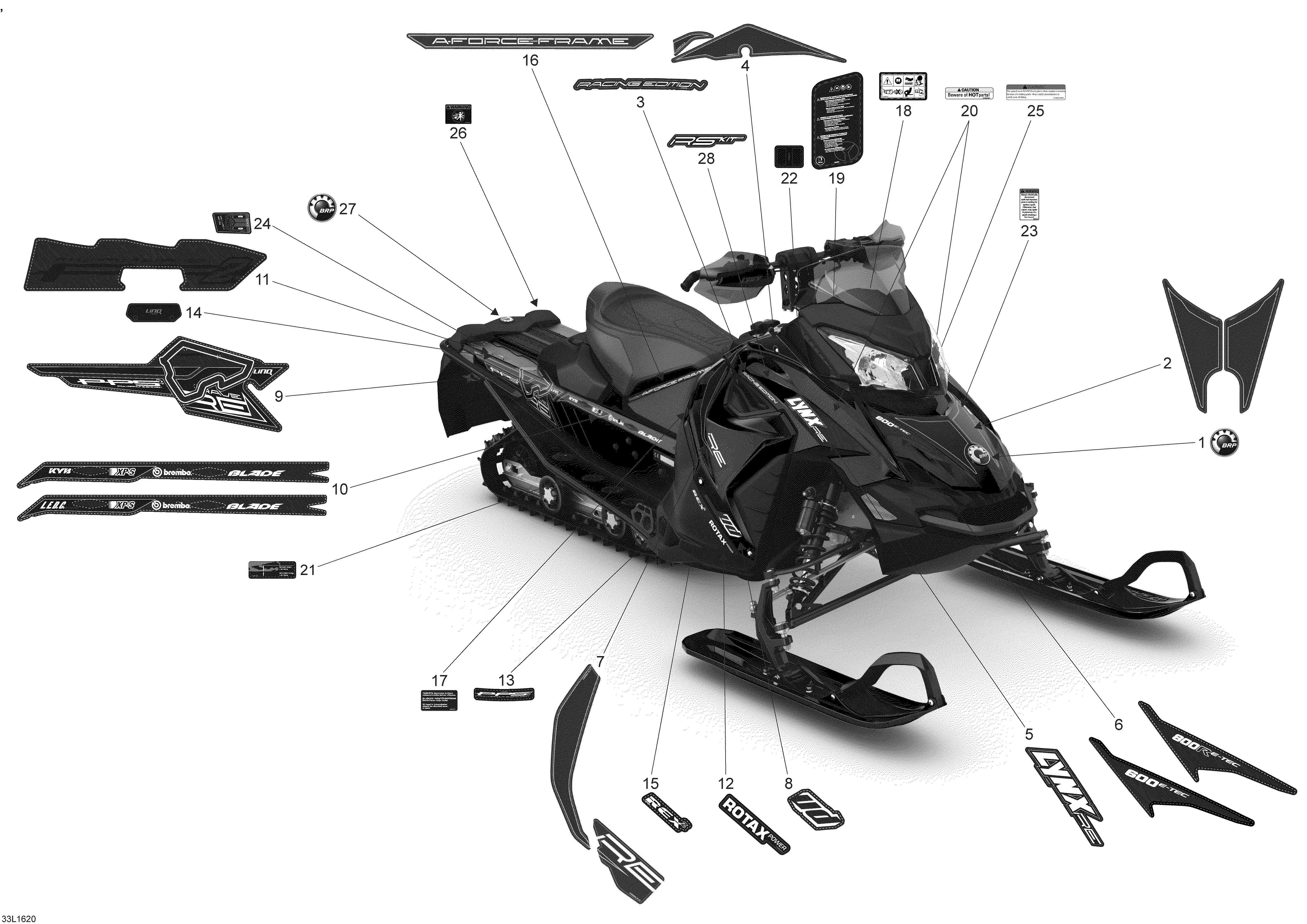

09- Decals для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1516006888 BRP LogoBRP Logo
-
2516006697 Hood DecalHood Decal
-
3516005905 Side Panel DecalSide Panel Decal
-
4516006693 LH Side Panel DecalLH Side Panel Decal
-
4516006694 RH Side Panel DecalRH Side Panel Decal
-
5516006330 Side Panel DecalSide Panel Decal
-
6516005907 LH Hood Decal. Model-600 E-TECLH Hood Decal. Model-600 E-TEC
-
6516005909 LH Hood Decal. Model-800 E-TECLH Hood Decal. Model-800 E-TEC
-
6516005908 RH Hood Decal. Model-600 E-TECRH Hood Decal. Model-600 E-TEC
-
6516005910 RH Hood Decal. Model-800 E-TECRH Hood Decal. Model-800 E-TEC
-
7516006698 LH Side Panel DecalLH Side Panel Decal
-
7516006699 RH Side Panel DecalRH Side Panel Decal
-
8516007467 Side Panel DecalSide Panel Decal
-
9516006986 LH Tunnel DecalLH Tunnel Decal
-
9516006987 RH Tunnel DecalRH Tunnel Decal
-
10516006988 LH Tunnel Decal. Model-stdLH Tunnel Decal. Model-std
-
10516007035 LH Tunnel Decal. Model-LEDCLH Tunnel Decal. Model-LEDC
-
10516006989 RH Tunnel Decal. Model-stdRH Tunnel Decal. Model-std
-
10516007036 RH Tunnel Decal. Model-LEDCRH Tunnel Decal. Model-LEDC
-
11516007037 LH Tunnel DecalLH Tunnel Decal
-
11516007038 RH Tunnel DecalRH Tunnel Decal
-
12516006331 Rotax Power DecalRotax Power Decal
-
13516006805 PPS DecalPPS Decal
-
14516006485 LinQ DecalLinQ Decal
-
15516006392 REX2 Platform DecalREX2 Platform Decal
-
16516006687 A-Force Frame DecalA-Force Frame Decal
-
175447012 Oil Checking DecalOil Checking Decal
-
18516003919 Warning DecalWarning Decal
-
19516004607 Instruction/Warning Decal (FI/SWE/EN)Instruction/Warning Decal (FI/SWE/EN)
-
20516006903 Hot Parts DecalHot Parts Decal
-
21516007587 Track Tension DecalTrack Tension Decal
-
22516006361 Console Buttonhole Cover DecalConsole Buttonhole Cover Decal
-
23516005583 Inject. DecalInject. Decal
-
24516006447 LinQ Weight Limit DecalLinQ Weight Limit Decal
-
25516006900 Driven Pulley Shield Warning DecalDriven Pulley Shield Warning Decal
-
26516007584 Rotating Track Warning DecalRotating Track Warning Decal
-
27516006887 BRP LogoBRP Logo
-
28516006401 RS Kit Decal. Model-RS KitRS Kit Decal. Model-RS Kit
