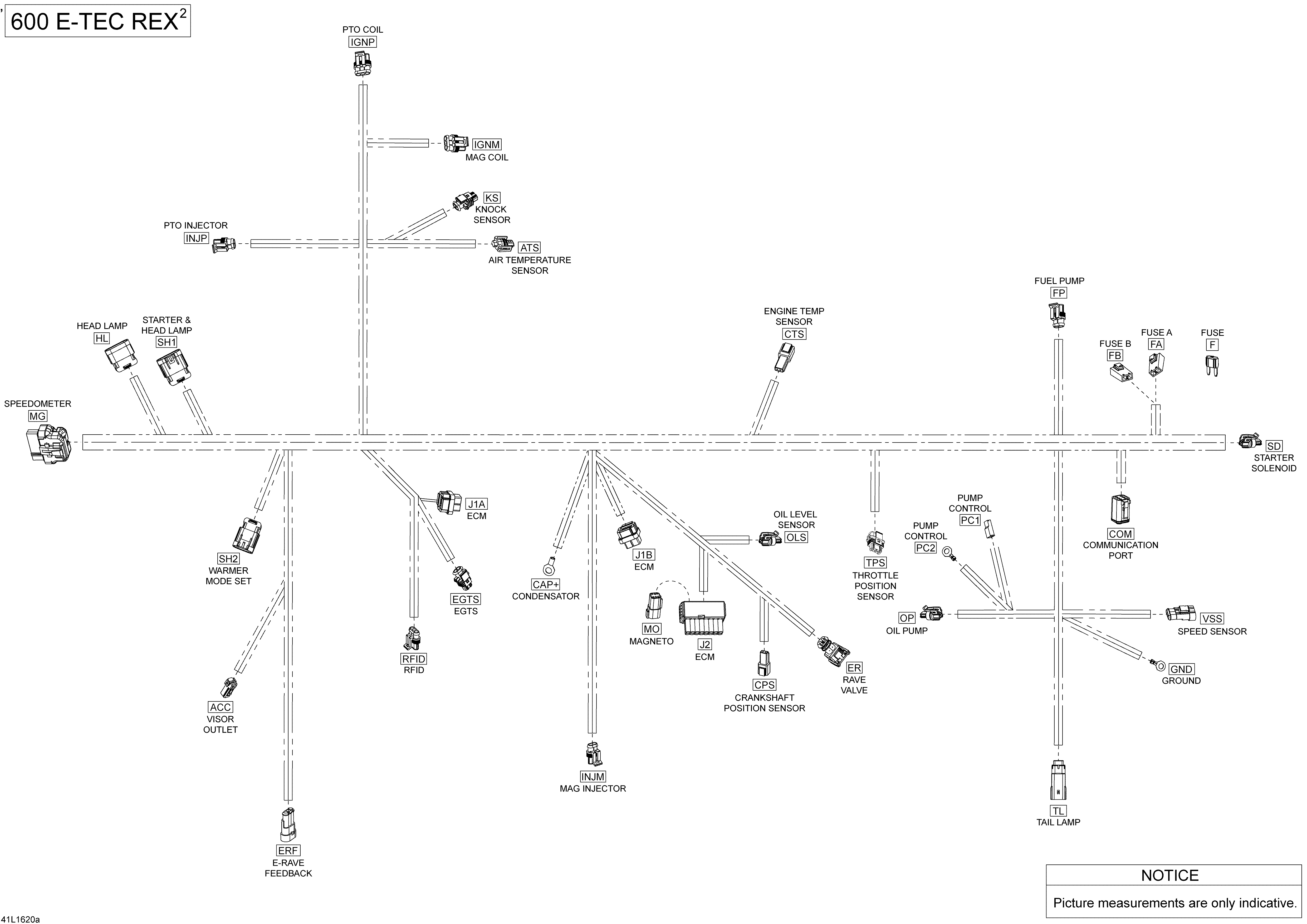

10- Electrical Harness - 600 E-TEC для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1515177984 Main Harness. Includes 1 To VSSMain Harness. Includes 1 To VSS
-
2515175442 Tubing 6mmTubing 6mm
-
2409901700 Tubing 9mmTubing 9mm
-
2415079900 Tubing 11mmTubing 11mm
-
2409901800 Tubing 13mmTubing 13mm
-
2415080000 Tubing 16mmTubing 16mm
-
2409901600 Tubing 19mmTubing 19mm
-
2409902200 Tubing 25 mmTubing 25 mm
-
ACC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC515175231 Female TerminalFemale Terminal
-
ATS515176890 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ATS710001164 Female TerminalFemale Terminal
-
ATS710001163 Wire SealWire Seal
-
CAP+515177799 Ring TerminalRing Terminal
-
CAP+515177246 Heat Shrink Tube (6mm)Heat Shrink Tube (6mm)
-
COM278002896 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM278000632 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
COM515175678 LockLock
-
CPS409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CPS278000631 Male TerminalMale Terminal
-
CPS409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTS409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CTS278000631 Male TerminalMale Terminal
-
CTS409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
EGTS515177298 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
EGTS710001224 Female TerminalFemale Terminal
-
EGTS710001233 Wire SealWire Seal
-
ER415128500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ER278000998 Female TerminalFemale Terminal
-
ER415128501 Wire SealWire Seal
-
ERF710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
ERF515176164 Male TerminalMale Terminal
-
ERF515176621 Wire SealWire Seal
-
F278000344 Fuse 5AFuse 5A
-
F278000343 Fuse 15AFuse 15A
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FA409011600 Female TerminalFemale Terminal
-
FA710000992 ClipClip
-
FB409004000 Fuse HolderFuse Holder
-
FB409004200 Female TerminalFemale Terminal
-
FB409011600 Female TerminalFemale Terminal
-
FB710000992 ClipClip
-
FP710001132 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP278001481 Female TerminalFemale Terminal
-
FP710001133 LockLock
-
FP278001482 Wire SealWire Seal
-
GND278001392 Ring TerminalRing Terminal
-
HL515177296 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
HL710001228 Female TerminalFemale Terminal
-
HL710001332 Wire SealWire Seal
-
IGNM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGNM278001014 Female TerminalFemale Terminal
-
IGNM278001013 Wire SealWire Seal
-
IGNP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGNP278001014 Female TerminalFemale Terminal
-
IGNP278001013 SealSeal
-
INJM409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INJM278001014 Female TerminalFemale Terminal
-
INJM278001013 Wire SealWire Seal
-
INJP409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INJP278001014 Female TerminalFemale Terminal
-
INJP278001013 Wire SealWire Seal
-
J1A515176342 Female Housing, 34 CircuitsFemale Housing, 34 Circuits
-
J1A515176541 Female TerminalFemale Terminal
-
J1A515176348 Female TerminalFemale Terminal
-
J1A515175812 PlugPlug
-
J1B515176341 Female Housing, 26 CircuitsFemale Housing, 26 Circuits
-
J1B515176541 Female TerminalFemale Terminal
-
J1B515176348 Female TerminalFemale Terminal
-
J1B515175812 PlugPlug
-
J2515176340 Female Housing, 16 CircuitsFemale Housing, 16 Circuits
-
J2278000998 Female TerminalFemale Terminal
-
J2278000999 Wire SealWire Seal
-
J2415128501 Wire SealWire Seal
-
KS278002520 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
KS278000998 Female TerminalFemale Terminal
-
KS415128501 Wire SealWire Seal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG710000399 RetainerRetainer
-
MG515175806 Female TerminalFemale Terminal
-
MG710001131 Female TerminalFemale Terminal
-
MG515175812 PlugPlug
-
MG515175802 LockLock
-
MG515175803 Wire SealWire Seal
-
MO515175668 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
MO278000631 Male TerminalMale Terminal
-
MO278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
OLS515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
OLS710001164 Female TerminalFemale Terminal
-
OLS710001163 Wire SealWire Seal
-
OP515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
OP710000925 Female TerminalFemale Terminal
-
OP710001332 Wire SealWire Seal
-
PC1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
PC1409010100 Female TerminalFemale Terminal
-
PC2515175504 Ring TerminalRing Terminal
-
PC2515177246 Heat Shrink Tube (6mm)Heat Shrink Tube (6mm)
-
RFID710001161 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
RFID710001163 Wire SealWire Seal
-
RFID710001164 Female TerminalFemale Terminal
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD710000925 Female TerminalFemale Terminal
-
SD710001332 Wire SealWire Seal
-
SH1710001929 Male Housing, 12 CircuitsMale Housing, 12 Circuits
-
SH1710001224 Male TerminalMale Terminal
-
SH1710001223 Male TerminalMale Terminal
-
SH1710001225 PlugPlug
-
SH1710001233 Wire SealWire Seal
-
SH1710001332 Wire SealWire Seal
-
SH2710001927 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
SH2710001224 Male TerminalMale Terminal
-
SH2710001233 SealSeal
-
TL515178023 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
TL515178013 Male TerminalMale Terminal
-
TPS278002521 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
TPS278000998 Female TerminalFemale Terminal
-
TPS415128501 Wire SealWire Seal
-
VSS710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
VSS515176164 Male TerminalMale Terminal
-
VSS710000992 ClipClip
-
VSS515176621 Wire SealWire Seal
