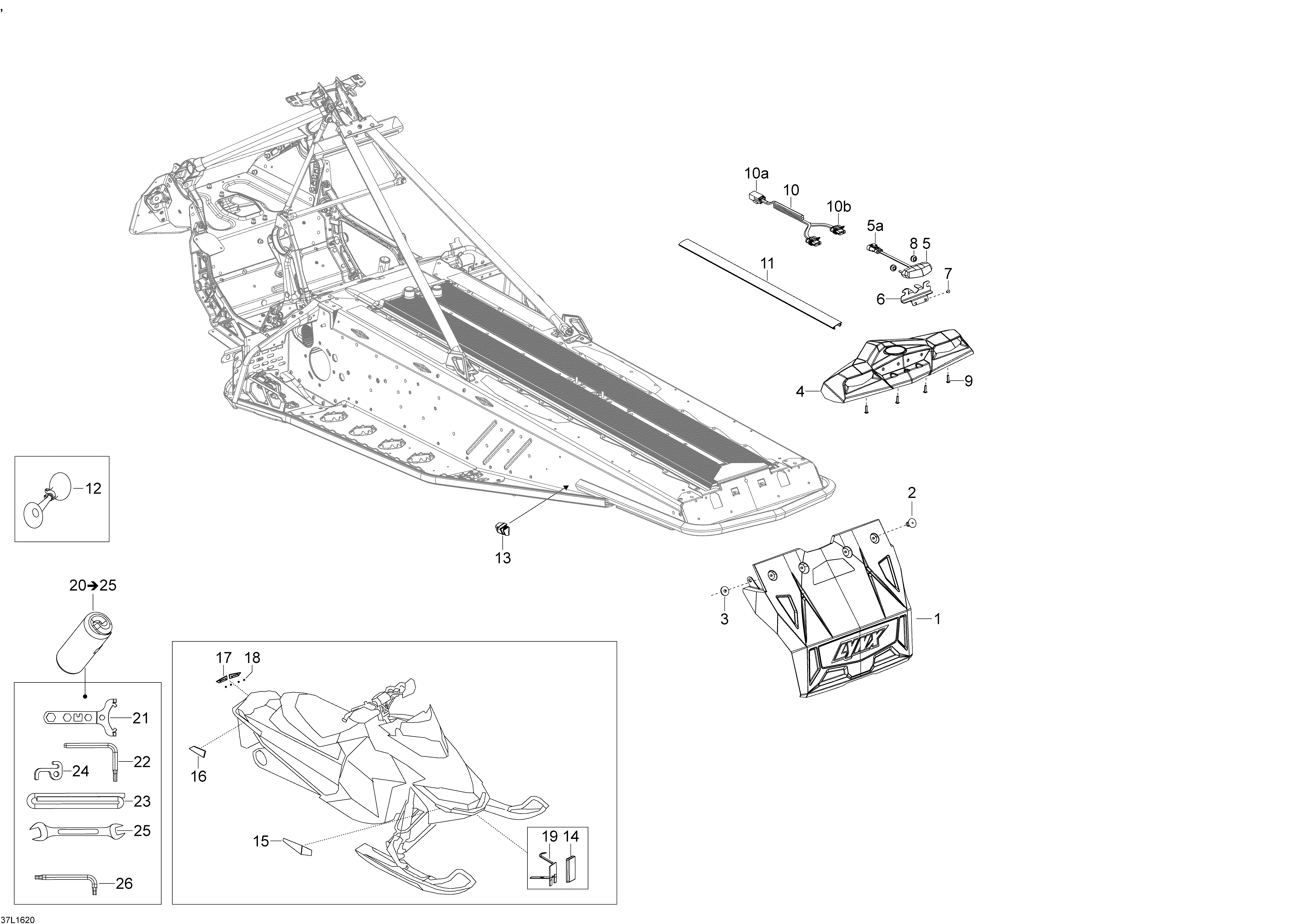

09- Utilities для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1520001187 Snow GuardSnow Guard
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4511000863 Light CoverLight Cover
-
5520001302 Rear LightRear Light
-
5a710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
5a409012900 Male TerminalMale Terminal
-
5a409013700 PlugPlug
-
5a278001013 Wire SealWire Seal
-
6520001375 Rear Light SupportRear Light Support
-
7390909200 RivetRivet
-
8293720101 GrommetGrommet
-
9250000759 Torx Truss Screw K40 x 16Torx Truss Screw K40 x 16
-
10515178115 Rear Light HarnessRear Light Harness
-
10b409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
10b278001014 Female TerminalFemale Terminal
-
11520001157 TrimTrim
-
12549011291 HornHorn
-
13520001373 RH CapRH Cap
-
13520001374 LH CapLH Cap
-
1421118 Bright ReflectorBright Reflector
-
15520001351 Yellow RH ReflectorYellow RH Reflector
-
15520001352 Yellow LH ReflectorYellow LH Reflector
-
16705007154 Yellow RH ReflectorYellow RH Reflector
-
16705007155 Yellow LH ReflectorYellow LH Reflector
-
17705007156 Red RH ReflectorRed RH Reflector
-
17705007157 Red LH ReflectorRed LH Reflector
-
18732610072 Push NutPush Nut
-
19520001452 Reflector MountReflector Mount
-
21520001442 WrenchWrench
-
22520001142 KeyKey
-
23412500200 Starter RopeStarter Rope
-
24529000060 Starter GripStarter Grip
-
25529000002 Fork Wrench 10/13Fork Wrench 10/13
-
26529000082 Torx KeyTorx Key
