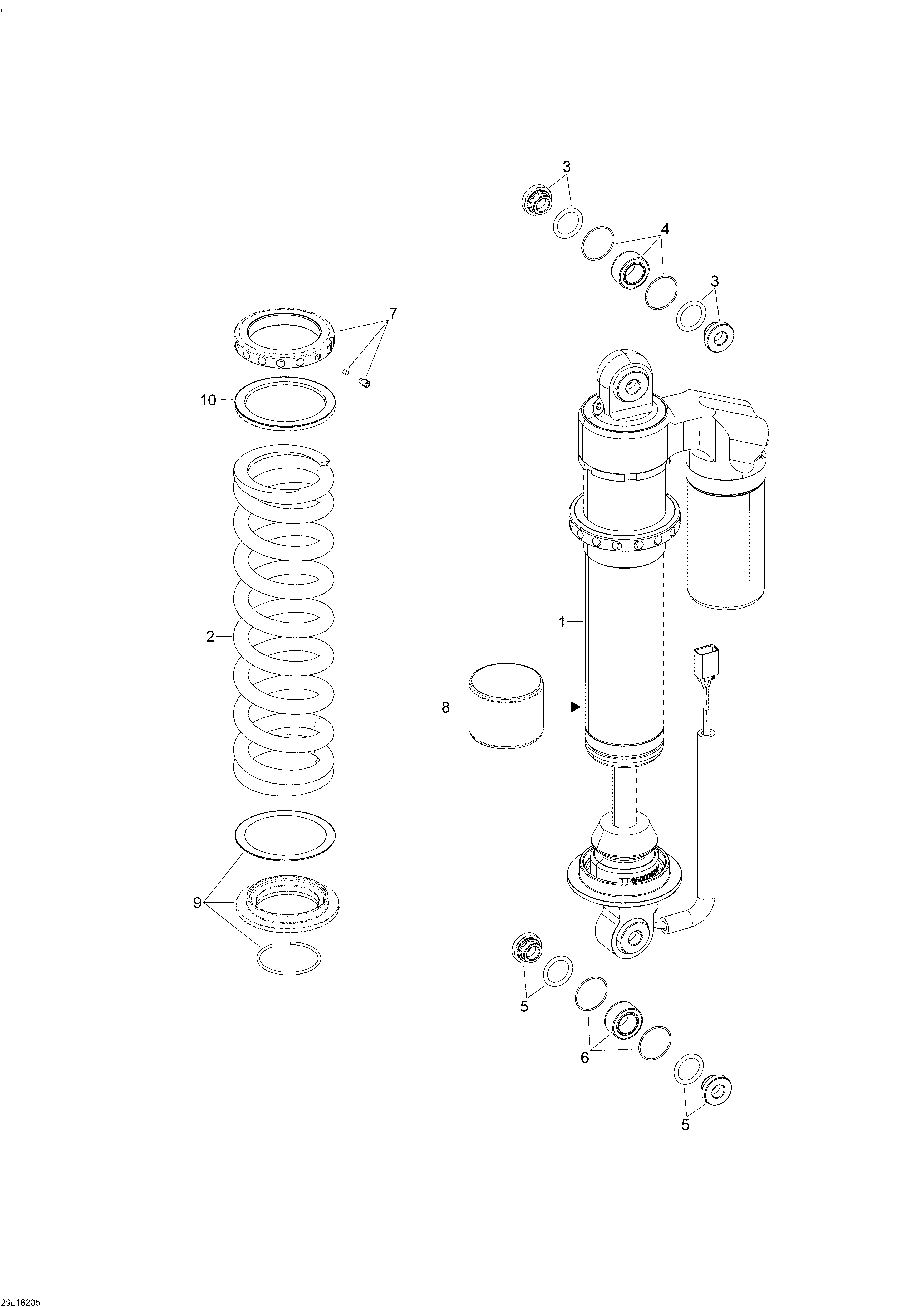

07- Ski & Rear Shocks (Tractive) для BRP Lynx Rave RE (2-Stroke) - 2016
-
№АртикулНазвание
-
-505073835 Front Shock Ass?y. Includes 1 To 10Front Shock Ass?y. Includes 1 To 10
-
-503194192 Center Shock Ass'y. Includes 1 To 10Center Shock Ass'y. Includes 1 To 10
-
-503194193 Rear Shock Ass'y. Includes 1 To 10Rear Shock Ass'y. Includes 1 To 10
-
2619300179 Front Shock SpringFront Shock Spring
-
2619300180 Center Shock SpringCenter Shock Spring
-
2619300181 Rear Shock SpringRear Shock Spring
-
3619300184 Front Shock Upper Bearing BushingFront Shock Upper Bearing Bushing
-
3619300183 Center Shock Upper Bearing BushingCenter Shock Upper Bearing Bushing
-
3619300183 Rear Shock Upper Bearing BushingRear Shock Upper Bearing Bushing
-
4619300186 Front Shock Upper BearingFront Shock Upper Bearing
-
4619300185 Center Shock Upper BearingCenter Shock Upper Bearing
-
4619300186 Rear Shock Upper BearingRear Shock Upper Bearing
-
5619300184 Front Shock Lower Bearing BushingFront Shock Lower Bearing Bushing
-
5619300183 Center Shock Lower Bearing BushingCenter Shock Lower Bearing Bushing
-
5619300183 Rear Shock Lower Bearing BushingRear Shock Lower Bearing Bushing
-
6619300185 Front Shock Lower BearingFront Shock Lower Bearing
-
6619300185 Center Shock Lower BearingCenter Shock Lower Bearing
-
6619300185 Rear Shock Lower BearingRear Shock Lower Bearing
-
7619300188 Upper Spring Retainer KitUpper Spring Retainer Kit
-
8619300189 Rubber Protection SleeveRubber Protection Sleeve
-
9619300190 Lower Spring Retainer KitLower Spring Retainer Kit
-
10619300191 Upper Spring SpacerUpper Spring Spacer
