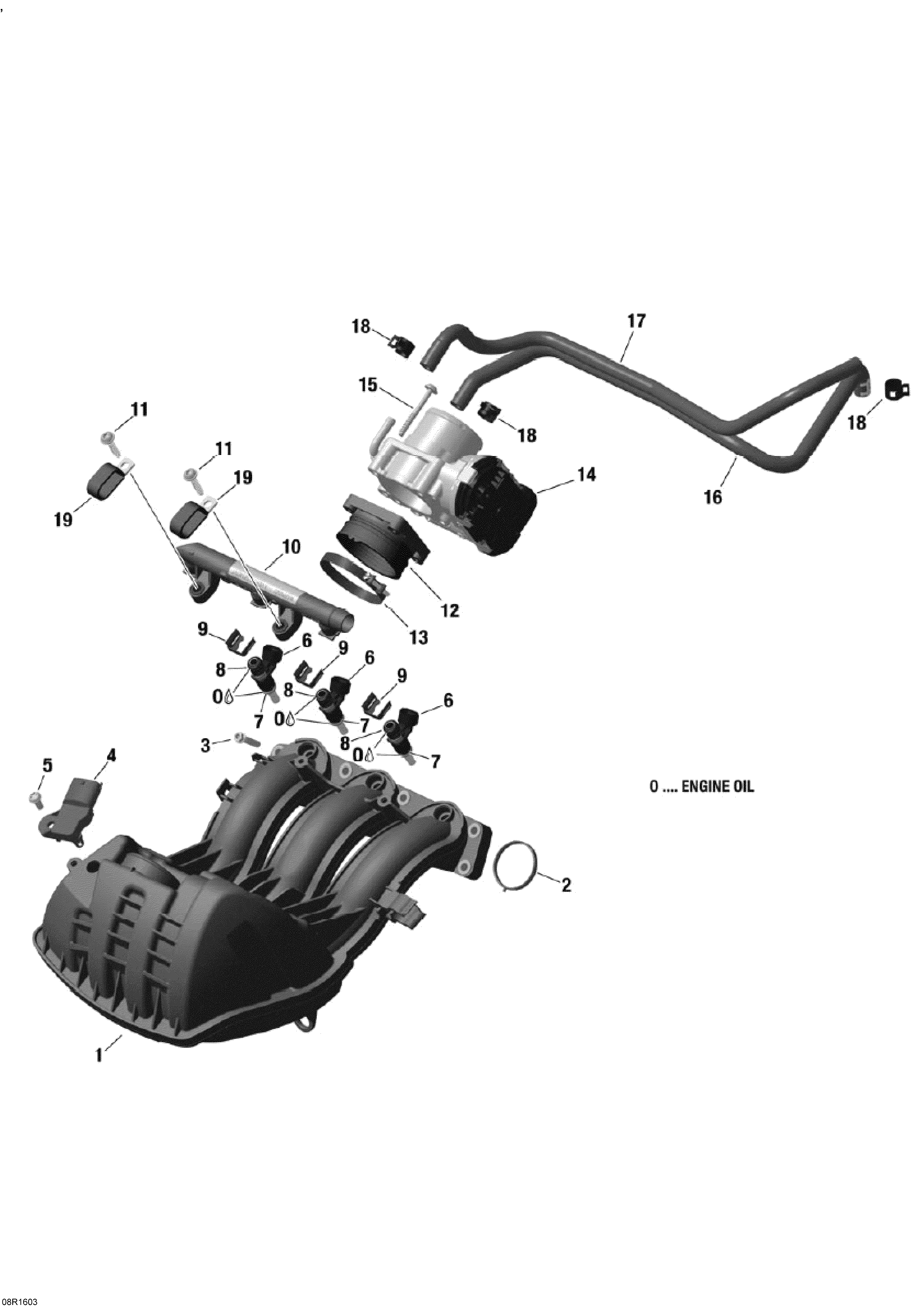

02- Air Intake Manifold And Throttle Body - 900 ACE для BRP Lynx 69 YETI (4-Stroke) - 2016

№

Артикул

Название
1

420867340 Airbox Ass'y. Includes 1 To 2

Airbox Ass'y. Includes 1 To 2

16 500 ₽
2

420431662 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

3 350 ₽
3

420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

740 ₽
4

707000995 Pressure/Temp Sensor

Pressure/Temp Sensor

18 180 ₽
5

420641588 Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%

Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%

2 650 ₽
6

420874838 Injection Valve (Deka VII Type 0). Includes 6 To 8

Injection Valve (Deka VII Type 0). Includes 6 To 8

15 600 ₽
7

420431890 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

2 260 ₽
8

420631220 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

4 900 ₽
9

420853030 Injector Clip

Injector Clip

1 120 ₽
10

420874965 Fuel Rail

Fuel Rail

1 280 ₽
11

420441573 Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%

310 ₽
12

420867110 Connecting Socket

Connecting Socket

12 740 ₽
13

420251830 Hose Clamp

Hose Clamp

4 900 ₽
14

420893148 Throttle Body Ass'y

Throttle Body Ass'y

39 330 ₽
15

420441588 Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%

Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%

1 540 ₽
16

420201505 Molded Hose (Water Out)

Molded Hose (Water Out)

9 910 ₽
17

420201500 Molded Hose (Water In)

Molded Hose (Water In)

2 100 ₽
18

420853511 Clamp

Clamp

2 440 ₽
19

420951830 Double Clamp

Double Clamp

1 070 ₽
