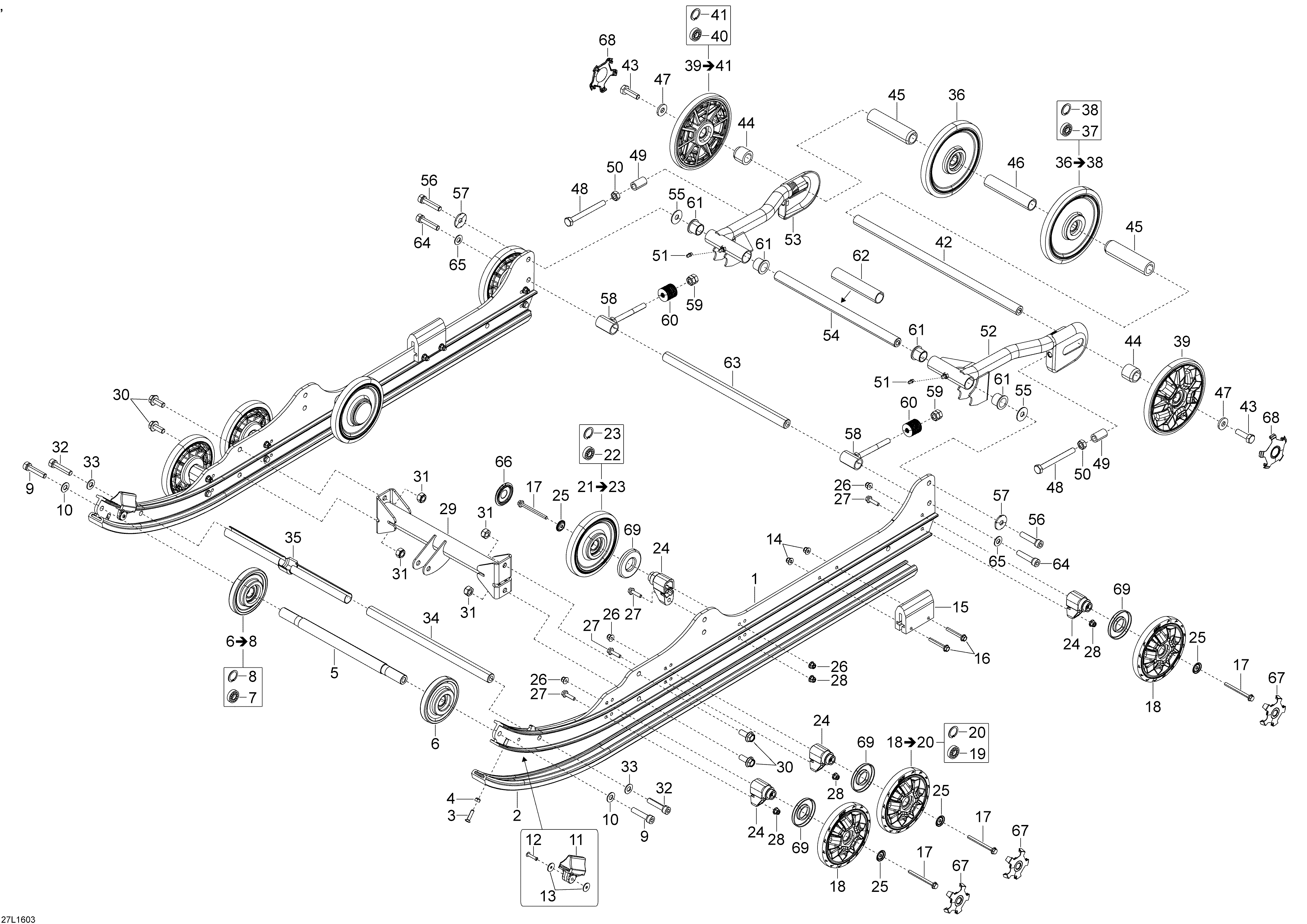

08- Rear Suspension A для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1503193792 RunnerRunner
-
2503192843 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192889 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10234001410 Washer Flat M10Washer Flat M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 RivetRivet
-
13503191273 WasherWasher
-
14233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
15570023100 Rubber StopperRubber Stopper
-
16207664554 Hex. Flange Screw M6 x 45Hex. Flange Screw M6 x 45
-
17207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503193734 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193894 Support Cast.Support Cast.
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
27207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
28233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
29503193182 Center Shock Lower SupportCenter Shock Lower Support
-
30207602587 Hex. Flange Screw M10 x 25Hex. Flange Screw M10 x 25
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
33234001410 Washer Flat M10Washer Flat M10
-
34503192927 ShaftShaft
-
35605355263 Limiter Strap RetainerLimiter Strap Retainer
-
36503192140 Wheel 165mm. Includes 36 To 38Wheel 165mm. Includes 36 To 38
-
37503190396 Ball BearingBall Bearing
-
38415129371 CirclipCirclip
-
39503193809 Wheel 165mm. Includes 39 To 41Wheel 165mm. Includes 39 To 41
-
40503190396 Ball BearingBall Bearing
-
41415129371 CirclipCirclip
-
42503191408 Axle RearAxle Rear
-
43250000817 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
44503192048 SpacerSpacer
-
45503192671 SpacerSpacer
-
46605448429 Support PipeSupport Pipe
-
47503190439 WasherWasher
-
48230100044 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
49503192696 SpacerSpacer
-
50232006414 Nut M10Nut M10
-
51408200700 Grease FittingGrease Fitting
-
52503192088 LH Extension SwingLH Extension Swing
-
53503192089 RH Extension SwingRH Extension Swing
-
545347713 ShaftShaft
-
5520116 ShimShim
-
56205504587 Socket Screw M10 x 45Socket Screw M10 x 45
-
57512056700 Washer LockWasher Lock
-
58503192695 Adjustment ScrewAdjustment Screw
-
59232006414 Nut M10Nut M10
-
6025004 Cup SpringCup Spring
-
6131024 CushionCushion
-
62605448429 Support PipeSupport Pipe
-
635347717 ShaftShaft
-
64205504587 Socket Screw M10 x 45Socket Screw M10 x 45
-
65234001410 Flat Washer M10Flat Washer M10
-
66503192771 Black CapBlack Cap
-
67503193735 Black CapBlack Cap
-
68503193810 Black CapBlack Cap
-
69503190434 Seal LabyrinthSeal Labyrinth
