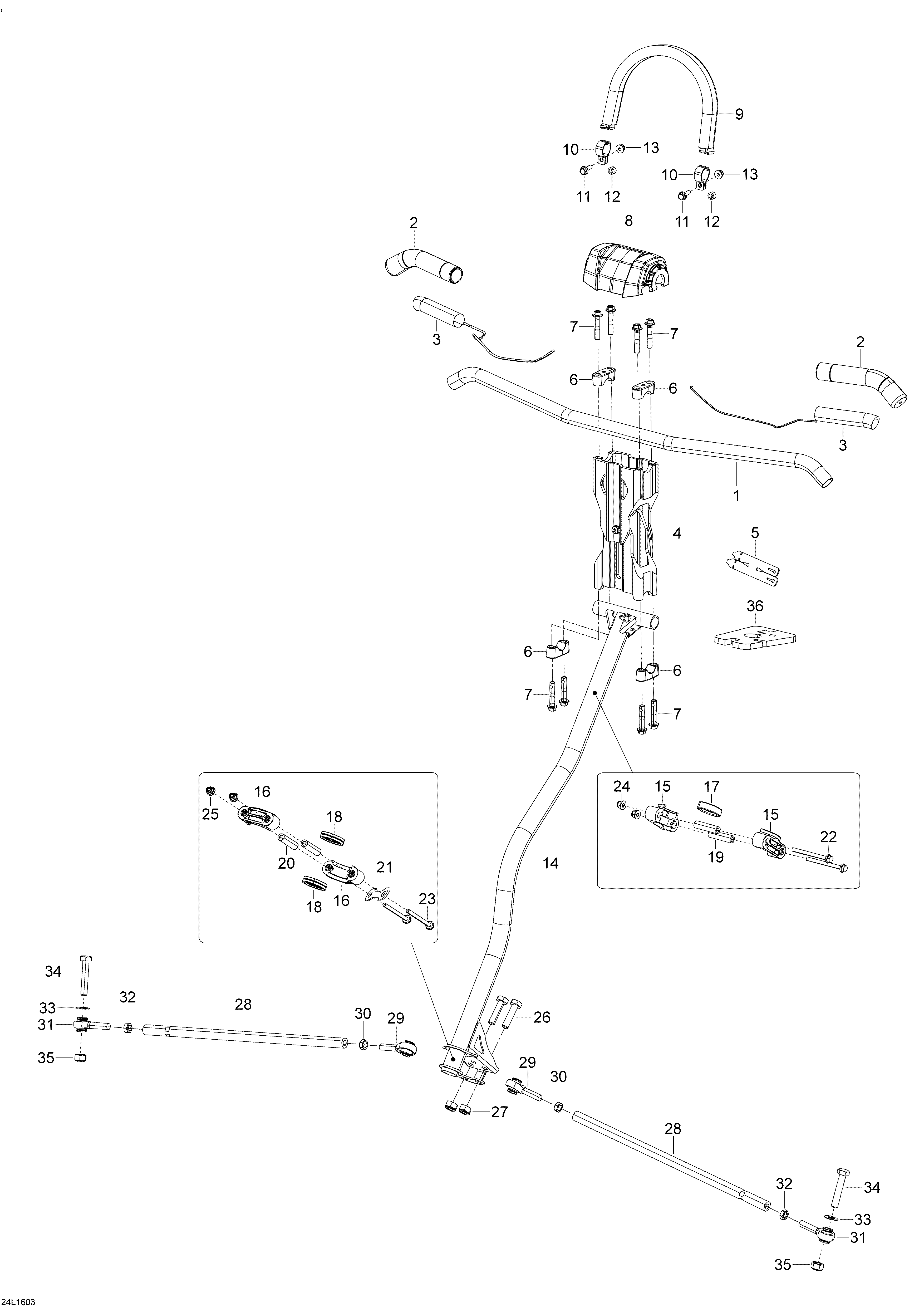

07- Steering System для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heating Element (25W)Heating Element (25W)
-
4860201123 Adjustable RiserAdjustable Riser
-
6506152751 Steering SupportSteering Support
-
7250000285 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
8506152553 Steering PadSteering Pad
-
9506152115 Strap Ass'yStrap Ass'y
-
10506152536 Black Support PlateBlack Support Plate
-
11207662054 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
12506152156 BushingBushing
-
13233261494 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
14506152846 Main TubeMain Tube
-
15506152508 Upper Half-HousingUpper Half-Housing
-
16506152217 Lower Half-HousingLower Half-Housing
-
17506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
18506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
19506152297 Housing BushingHousing Bushing
-
20506152388 Housing BushingHousing Bushing
-
21506152389 Stopper PlateStopper Plate
-
22207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
23207686544 Hex. Flange Screw M8 x 65Hex. Flange Screw M8 x 65
-
24233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
25233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
26207004044 Hex.Cap Screw M10 x 40Hex.Cap Screw M10 x 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152436 Tie RodTie Rod
-
29506152081 Ball Joint (LH Thread)Ball Joint (LH Thread)
-
30250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
31506152019 Ball Joint (RH Thread)Ball Joint (RH Thread)
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33506152582 WasherWasher
-
34207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
35233201464 Elastic Stop Nut M10Elastic Stop Nut M10
-
36506152404 CushionCushion
