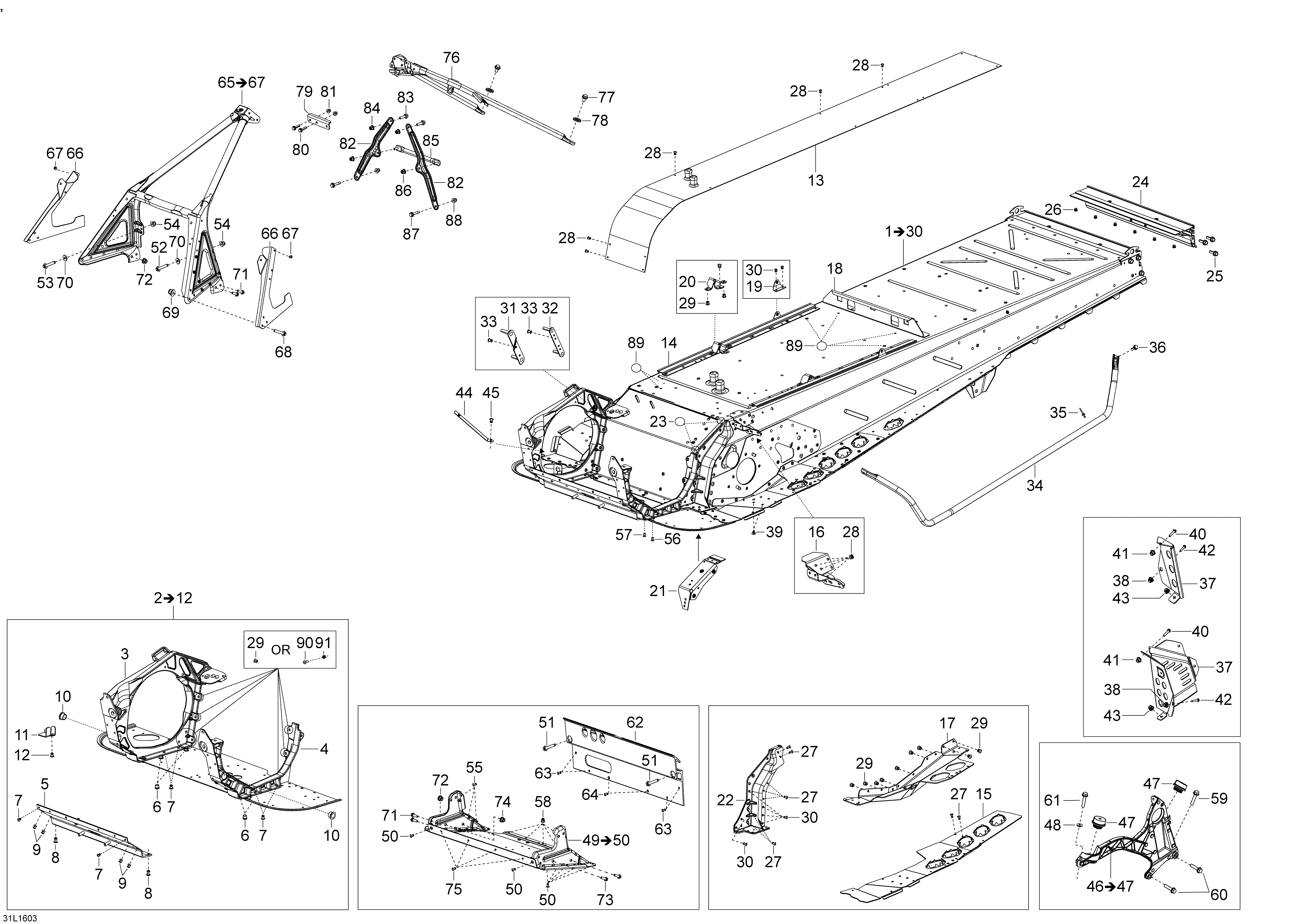

09- Frame для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1518328851 Black Frame. Includes 1 To 30Black Frame. Includes 1 To 30
-
2518328815 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 BushingBushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000976 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening RailFastening Rail
-
15518328852 LH FootrestLH Footrest
-
15518328853 RH FootrestRH Footrest
-
16518327884 Fastening BracketFastening Bracket
-
17518328014 LH Drive Axle CoverLH Drive Axle Cover
-
17518328015 RH Drive Axle CoverRH Drive Axle Cover
-
18518327003 Battery SupportBattery Support
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518328096 Clinch Nut PlateClinch Nut Plate
-
22518325643 LH Frame CornerLH Frame Corner
-
22518325644 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328749 Rear ProfileRear Profile
-
25207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518327595 LH Footboard Support TubeLH Footboard Support Tube
-
34518327596 RH Footboard Support TubeRH Footboard Support Tube
-
35390909100 RivetRivet
-
36207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
37518328921 Black LH Toe HookBlack LH Toe Hook
-
37518328922 Black RH Toe HookBlack RH Toe Hook
-
38605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
39414644300 Dart. Model-WTDart. Model-WT
-
40207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42250000717 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
43233261414 Hex. Flange Elastic Nut M6. Model-SWTHex. Flange Elastic Nut M6. Model-SWT
-
44514054846 Spring BracketSpring Bracket
-
45390909200 RivetRivet
-
46518327535 LH Brace Ass'y. Includes 46 To 47LH Brace Ass'y. Includes 46 To 47
-
47512060295 Rubber MountRubber Mount
-
48234281474 Conical Spring WasherConical Spring Washer
-
49518326213 Module S Cross Member. Includes 49 To 50Module S Cross Member. Includes 49 To 50
-
50390909200 RivetRivet
-
51210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
52207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
53207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
54233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
55390909100 RivetRivet
-
56293150119 RivetRivet
-
57293150183 RivetRivet
-
58390909200 RivetRivet
-
59207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
60207583586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
61207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
62518326140 Engine SupportEngine Support
-
63390909100 RivetRivet
-
64293150119 RivetRivet
-
65518327004 Front Member Ass'y. Includes 65 To 67Front Member Ass'y. Includes 65 To 67
-
66502007077 LH Bumper FastenerLH Bumper Fastener
-
66502007078 RH Bumper FastenerRH Bumper Fastener
-
67390909200 RivetRivet
-
68207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70224061201 Flat WasherFlat Washer
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
74233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
75390909200 RivetRivet
-
76518326103 Upper Support TubeUpper Support Tube
-
77207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79518327029 Extension PlateExtension Plate
-
80207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
81233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
82518326848 Upper ColumnUpper Column
-
83207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
84233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
85518326355 Upper ColumnUpper Column
-
86233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
87207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
88233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
89518325560 Adhesive PatchAdhesive Patch
-
90207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
91233261414 Elastic Flange Nut M6Elastic Flange Nut M6
