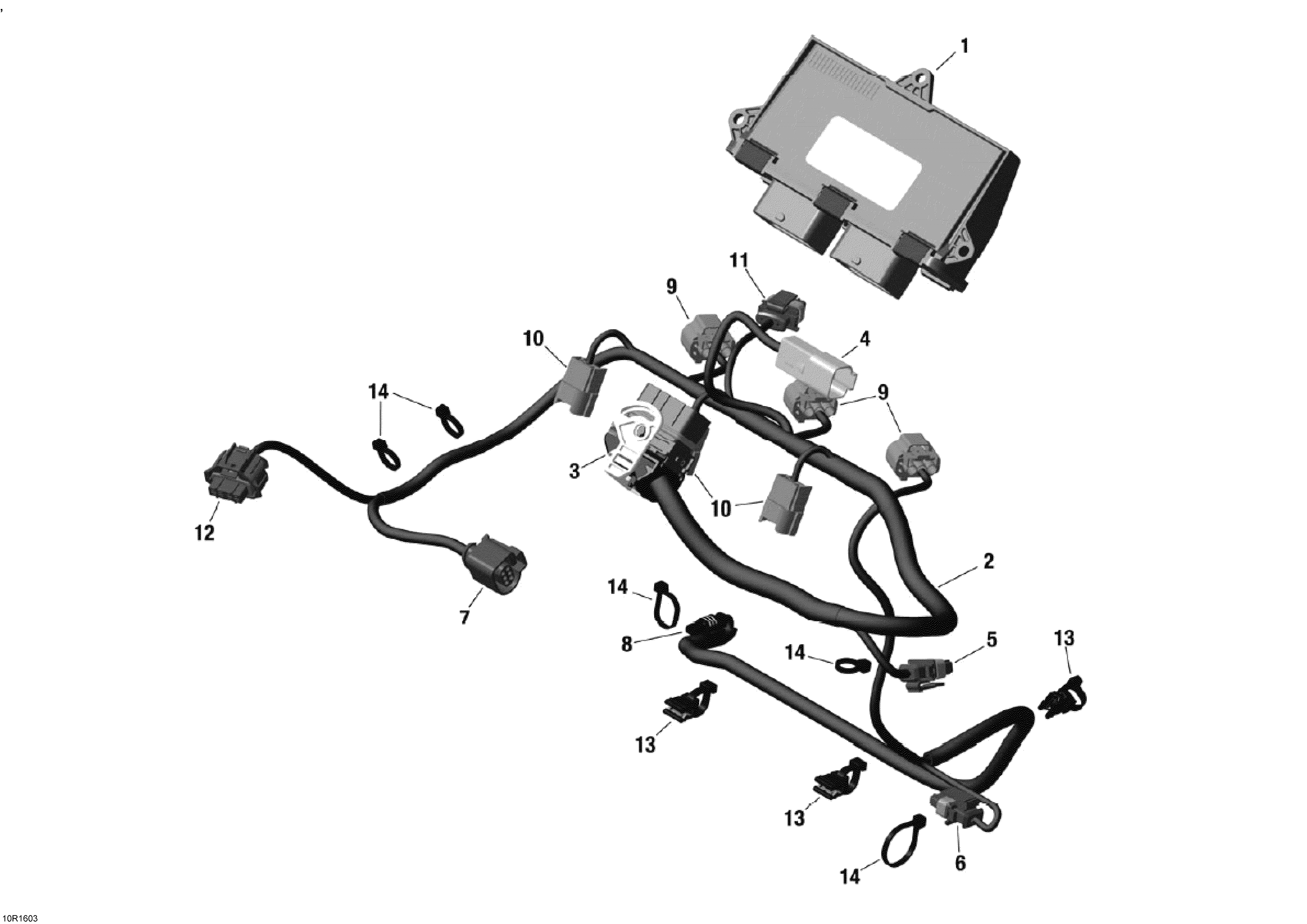

10- Engine Harness And Electronic Module - 900 ACE для BRP Lynx 69 YETI (4-Stroke) - 2016
-
№АртикулНазвание
-
1420666194 Electronic BoxElectronic Box
-
2420264420 Wiring Harness Ass'yWiring Harness Ass'y
-
4278000635 Connector HICConnector HIC
-
5278001005 Connector CPSConnector CPS
-
6278001005 Connector CTSConnector CTS
-
7515177406 Connector ETCConnector ETC
-
8278001012 Connector OPSConnector OPS
-
12515176410 Connector TMAPSConnector TMAPS
-
13420951650 Cable ClampCable Clamp
-
14420866714 Tie Rap 142mmTie Rap 142mm
