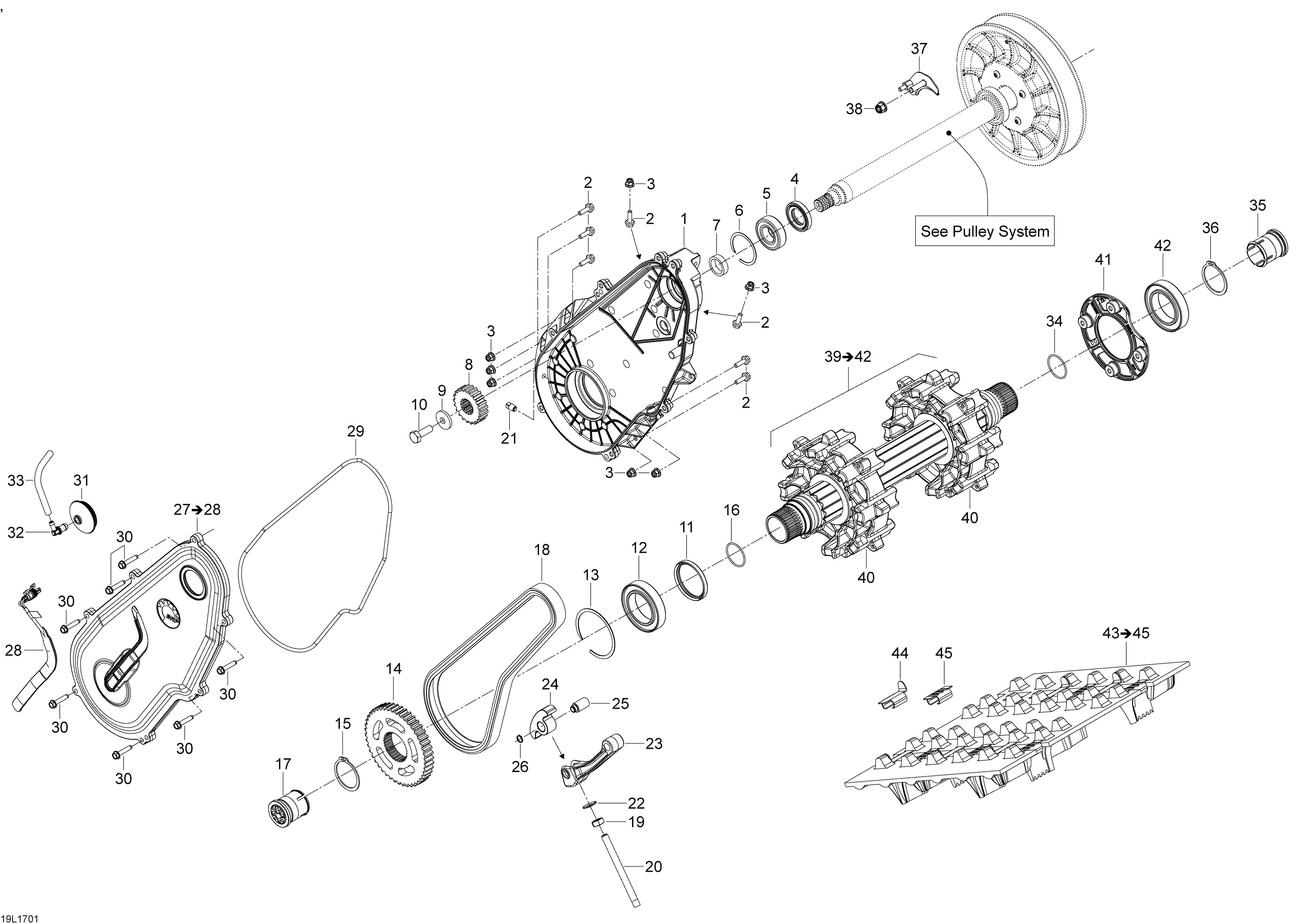

05- Drive System для BRP Lynx BoonDocker RE, 2017 - 2017
-
№АртикулНазвание
-
1504153405 ChaincaseChaincase
-
2207662034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
3233261434 Elastic Flange Nut M6Elastic Flange Nut M6
-
4415049300 Oil SealOil Seal
-
5293350055 Ball BearingBall Bearing
-
6504152576 CirclipCirclip
-
7504152628 ShimShim
-
8504096200 Sprocket (21 T)Sprocket (21 T)
-
9504152784 Spring WasherSpring Washer
-
10207503046 Hex. Flange Screw M10 x 30Hex. Flange Screw M10 x 30
-
11504152571 SealSeal
-
12293350059 Ball BearingBall Bearing
-
13504152582 CirclipCirclip
-
14504152581 Sprocket (49 T)Sprocket (49 T)
-
15504152572 CirclipCirclip
-
16293300122 O RingO Ring
-
17504152619 Magnetic CapMagnetic Cap
-
18504152630 Drive Chain (106 Links)Drive Chain (106 Links)
-
19232006414 Nut M10Nut M10
-
20504152602 Adjusting ScrewAdjusting Screw
-
21504152854 Magnetic PlugMagnetic Plug
-
22293200128 Seal RingSeal Ring
-
23504152685 Chain TensionerChain Tensioner
-
24504152739 Chain SliderChain Slider
-
25504152841 Axle TensionerAxle Tensioner
-
26504152282 CirclipCirclip
-
27504153410 Cover Ass?y. Includes 27 To 28Cover Ass?y. Includes 27 To 28
-
28504152896 SensorSensor
-
29293300188 O RingO Ring
-
30210263050 Hex. HD Forming Screw M6 x 30Hex. HD Forming Screw M6 x 30
-
31504152860 CapCap
-
32414580700 Male ConnectorMale Connector
-
33415080200 HoseHose
-
34293300122 O RingO Ring
-
35504152619 Magnetic CapMagnetic Cap
-
36504152572 CirclipCirclip
-
37504153418 Bearing HousingBearing Housing
-
38233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
39504153577 Drive Axle Ass?y. Includes 39 To 42Drive Axle Ass?y. Includes 39 To 42
-
41504153426 Retaining RingRetaining Ring
-
42293350059 Ball BearingBall Bearing
-
43504153198 Track Ass'y 146''. Includes 43 To 45Track Ass'y 146''. Includes 43 To 45
-
44415129528 ClipClip
-
45504152651 CleatCleat
