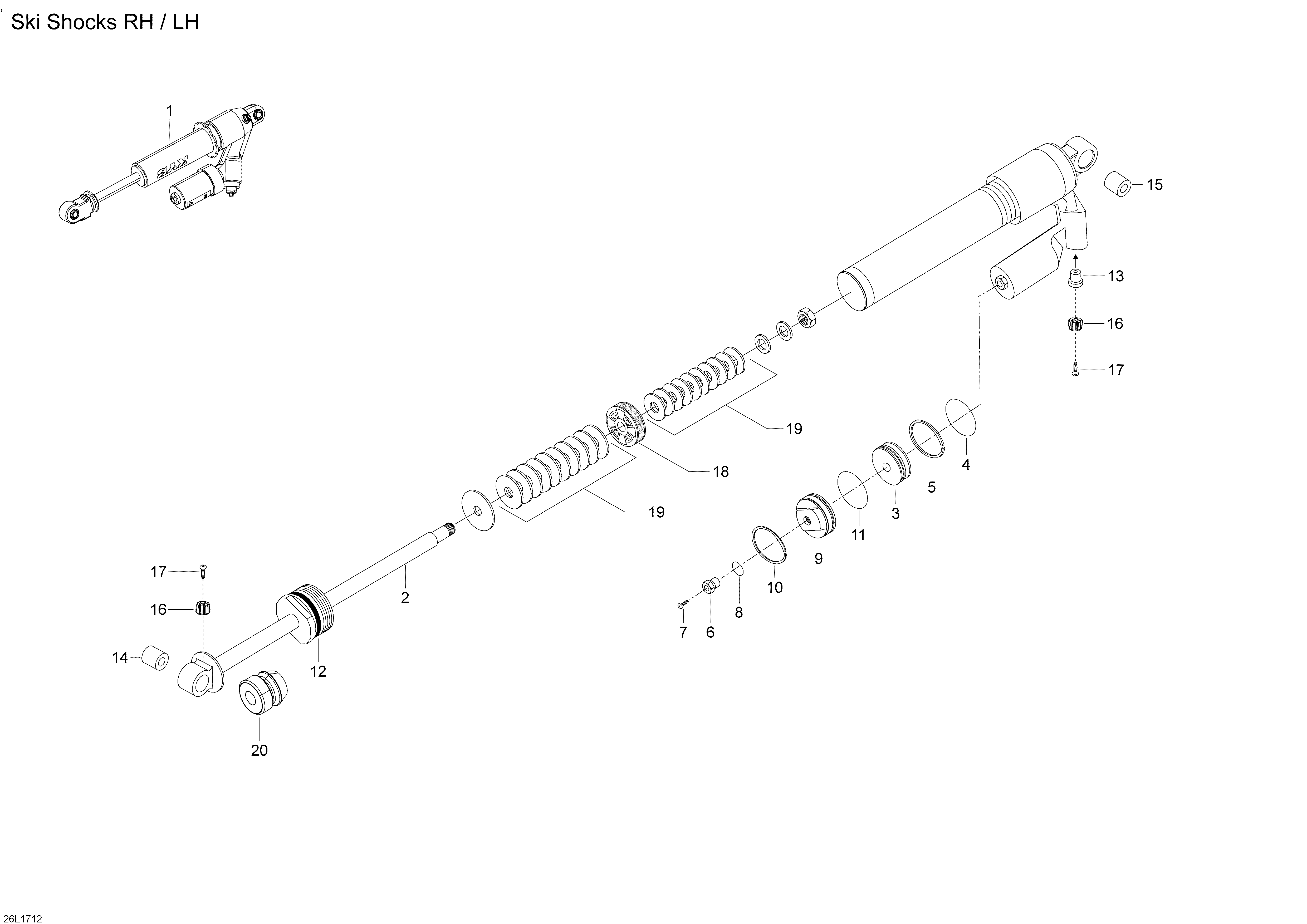

07- Take Apart Shock, Front для BRP Lynx BoonDocker RE, 2017 - 2017
-
№АртикулНазвание
-
1505073158 RH Front ShockRH Front Shock
-
1505073157 LH Front ShockLH Front Shock
-
3619300016 Floating PistonFloating Piston
-
4415093807 O RingO Ring
-
5415093806 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
10619300006 Stop RingStop Ring
-
11415093804 O RingO Ring
-
14230055 Rubber BushRubber Bush
-
15619300028 Rubber BushRubber Bush
-
16505072753 Adjuster KnobAdjuster Knob
-
17250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
19619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
19619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
19619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
19619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
19230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
19230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
19230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
19230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
19619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
19619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
19619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
19619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
19619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
19619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
19619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
19619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
19619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
19619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
19619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
19619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
19619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
19619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
19619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
19619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
19619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
19619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
19619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
19619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
19619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
19619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
19619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
19619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
19619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
19619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
19230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
19619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
19619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
19619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
19619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
19230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
19230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
19230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
19230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
19619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
19230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
19619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
19619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
19619300156 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
19619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
19230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
19230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
19230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
19619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
19619300157 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
19619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
19619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
19619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
-
20619300172 Rubber CushionRubber Cushion
