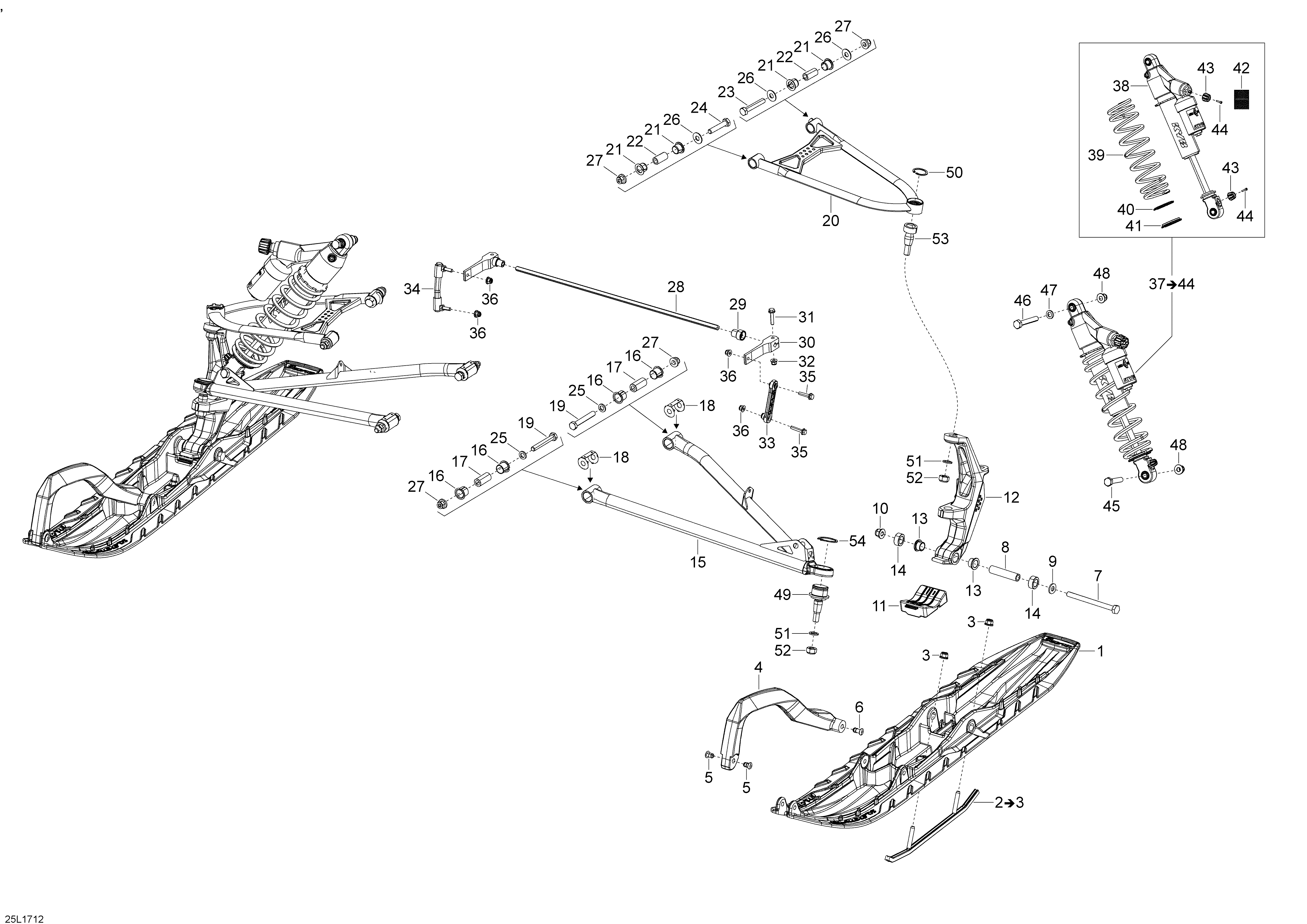

07- Front Suspension And Ski для BRP Lynx BoonDocker RE, 2017 - 2017
-
№АртикулНазвание
-
1505073834 Black DS Blade SkiBlack DS Blade Ski
-
1505073905 Yellow DS Blade SkiYellow DS Blade Ski
-
2860201044 Ski Runner Kit. Includes 2 To 3Ski Runner Kit. Includes 2 To 3
-
3233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4505072976 Black HandleBlack Handle
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Socket HD Screw M10 x 130Socket HD Screw M10 x 130
-
8506133300 Ski AxleSki Axle
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505072594 Rubber DamperRubber Damper
-
12505073630 Black LH Ski Leg (6L)Black LH Ski Leg (6L)
-
12505073631 Black RH Ski Leg (6R)Black RH Ski Leg (6R)
-
13505072690 BushingBushing
-
14505072807 SpacerSpacer
-
15505073584 Black RH Lower ArmBlack RH Lower Arm
-
15505073583 Black LH Lower ArmBlack LH Lower Arm
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073588 Black LH Upper ArmBlack LH Upper Arm
-
20505073589 Black RH Upper ArmBlack RH Upper Arm
-
21505073329 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505073609 StabilisatorStabilisator
-
29505072786 BushingBushing
-
30505073176 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505073172 Double Ball Joint LinkDouble Ball Joint Link
-
34860200811 Double Ball Joint Link (Quick Release)Double Ball Joint Link (Quick Release)
-
35207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
36233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
38505073158 RH ShockRH Shock
-
38505073157 LH ShockLH Shock
-
39505073228 Spring (280mm - 20N/mm)Spring (280mm - 20N/mm)
-
40505073150 WasherWasher
-
41503192608 Spring StopperSpring Stopper
-
42516005534 Shock Adjustment DecalShock Adjustment Decal
-
43505072753 Adjuster KnobAdjuster Knob
-
44205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
45207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
46207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
47503189564 WasherWasher
-
48233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
49505073636 Ball JointBall Joint
-
50293370070 CirclipCirclip
-
51234021410 Flat WasherFlat Washer
-
52250100089 Nut M12Nut M12
-
53505072913 Ball JointBall Joint
-
54293370035 CirclipCirclip
