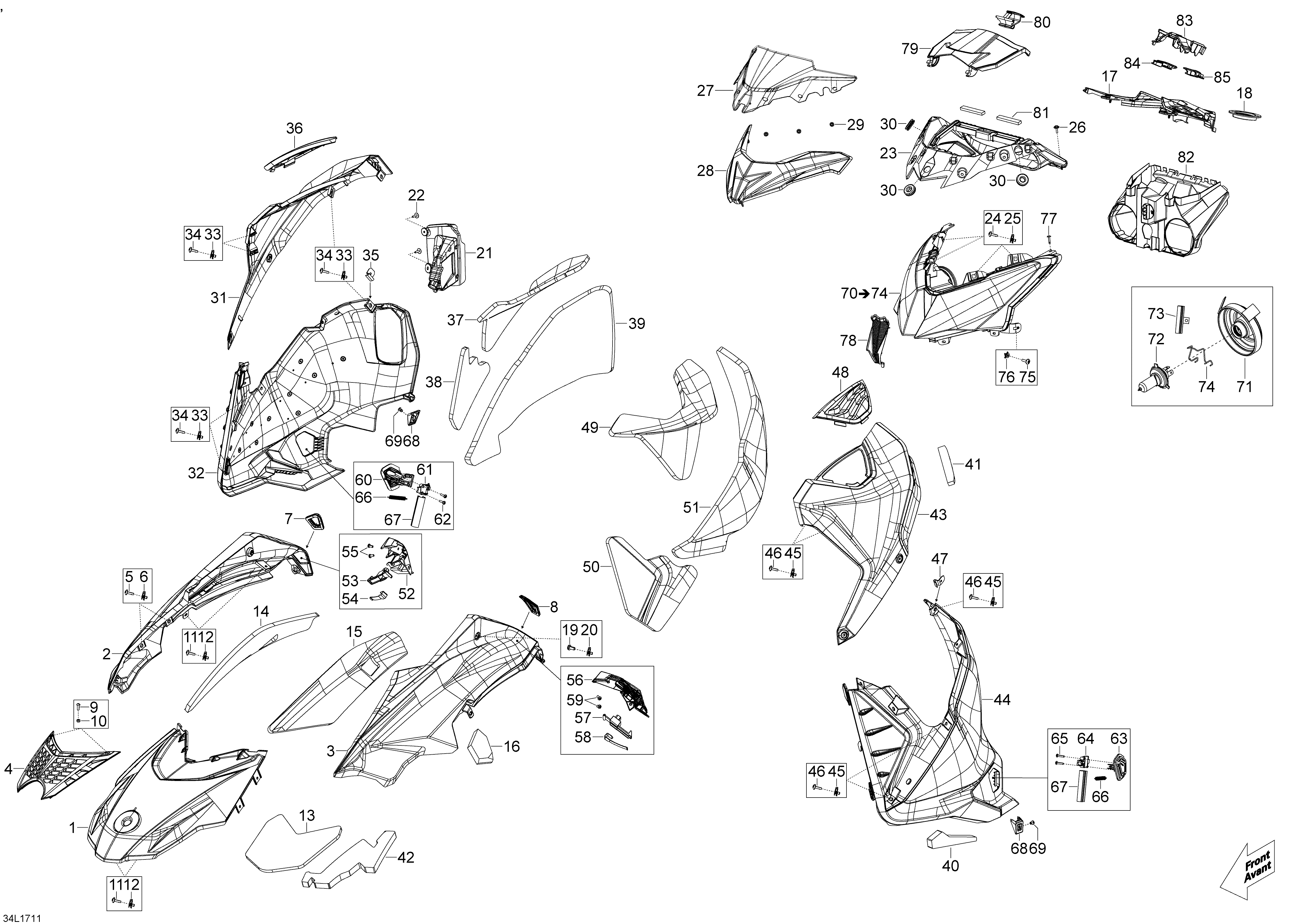

09- Hood And Windshield для BRP Lynx BoonDocker RE, 2017 - 2017
-
№АртикулНазвание
-
1517305246 Black Hood. Model-stdBlack Hood. Model-std
-
1517305361 Black Hood. Model-Air RadiatorBlack Hood. Model-Air Radiator
-
2517305418 Black RH HoodBlack RH Hood
-
3517305419 Black LH HoodBlack LH Hood
-
4517305362 Hood Grill. Model-Air RadiatorHood Grill. Model-Air Radiator
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551454 Button HD Torx Screw M5 x 14. Model-Air RadiatorButton HD Torx Screw M5 x 14. Model-Air Radiator
-
10233251434 Elastic Flange Nut M5. Model-Air RadiatorElastic Flange Nut M5. Model-Air Radiator
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305480 Foam. Model-stdFoam. Model-std
-
14517305481 FoamFoam
-
15517305482 FoamFoam
-
16517305824 FoamFoam
-
17517305205 Console RearConsole Rear
-
18517304518 Console NutConsole Nut
-
19250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
20250000079 Panel Nut M5Panel Nut M5
-
21517305060 Black RH ConsoleBlack RH Console
-
22250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
23517305512 Indicator SupportIndicator Support
-
24250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
25250000079 Panel Nut M5Panel Nut M5
-
26250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
27517304931 Windshield (135)Windshield (135)
-
28517305307 SupportSupport
-
29732610072 Push NutPush Nut
-
30517303756 GrommetGrommet
-
31517305837 Yellow RH Panel. Model - STDYellow RH Panel. Model - STD
-
31517306105 Black RH Side Panel. Model - Black EditionBlack RH Side Panel. Model - Black Edition
-
32517305249 Black RH PanelBlack RH Panel
-
33250000079 Panel Nut M5Panel Nut M5
-
34250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
35517305515 Guide PlateGuide Plate
-
36517305251 GrillGrill
-
37517306358 FoamFoam
-
38517306359 FoamFoam
-
39517306360 FoamFoam
-
40517305813 FoamFoam
-
41517305814 FoamFoam
-
42517305815 FoamFoam
-
43517305841 Yellow LH Panel. Model - STDYellow LH Panel. Model - STD
-
43517306107 Black LH Side Panel. Model - Black EditionBlack LH Side Panel. Model - Black Edition
-
44517305253 Black LH PanelBlack LH Panel
-
45250000079 Panel Nut M5Panel Nut M5
-
46250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
47517305515 Guide PlateGuide Plate
-
48517305254 GrillGrill
-
49517305488 FoamFoam
-
50517305489 FoamFoam
-
51517305490 FoamFoam
-
52517305315 RH Lock BodyRH Lock Body
-
53517306019 Lock ArmLock Arm
-
54517305317 Lock SpringLock Spring
-
55205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
56517305319 LH Lock BodyLH Lock Body
-
57517306019 Lock ArmLock Arm
-
58517305317 Lock SpringLock Spring
-
59205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
60517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
61517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
62250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
63517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
64517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
65250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
66517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
67517305452 Bottom Lock SleeveBottom Lock Sleeve
-
68517305323 Side Panel SupportSide Panel Support
-
69390909100 RivetRivet
-
70517306180 Headlamp. Includes 70 To 74Headlamp. Includes 70 To 74
-
71219400070 CapCap
-
72515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
73219800282 HolderHolder
-
74219800281 SpringSpring
-
75250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
76250100035 Jack Nut M5Jack Nut M5
-
77250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
78517305350 CapCap
-
79517304912 CoverCover
-
80517304917 LatchLatch
-
81517305157 SealSeal
-
82517305095 TrunkTrunk
-
83517304970 SupportSupport
-
84517305147 CapCap
-
85517305148 CapCap
