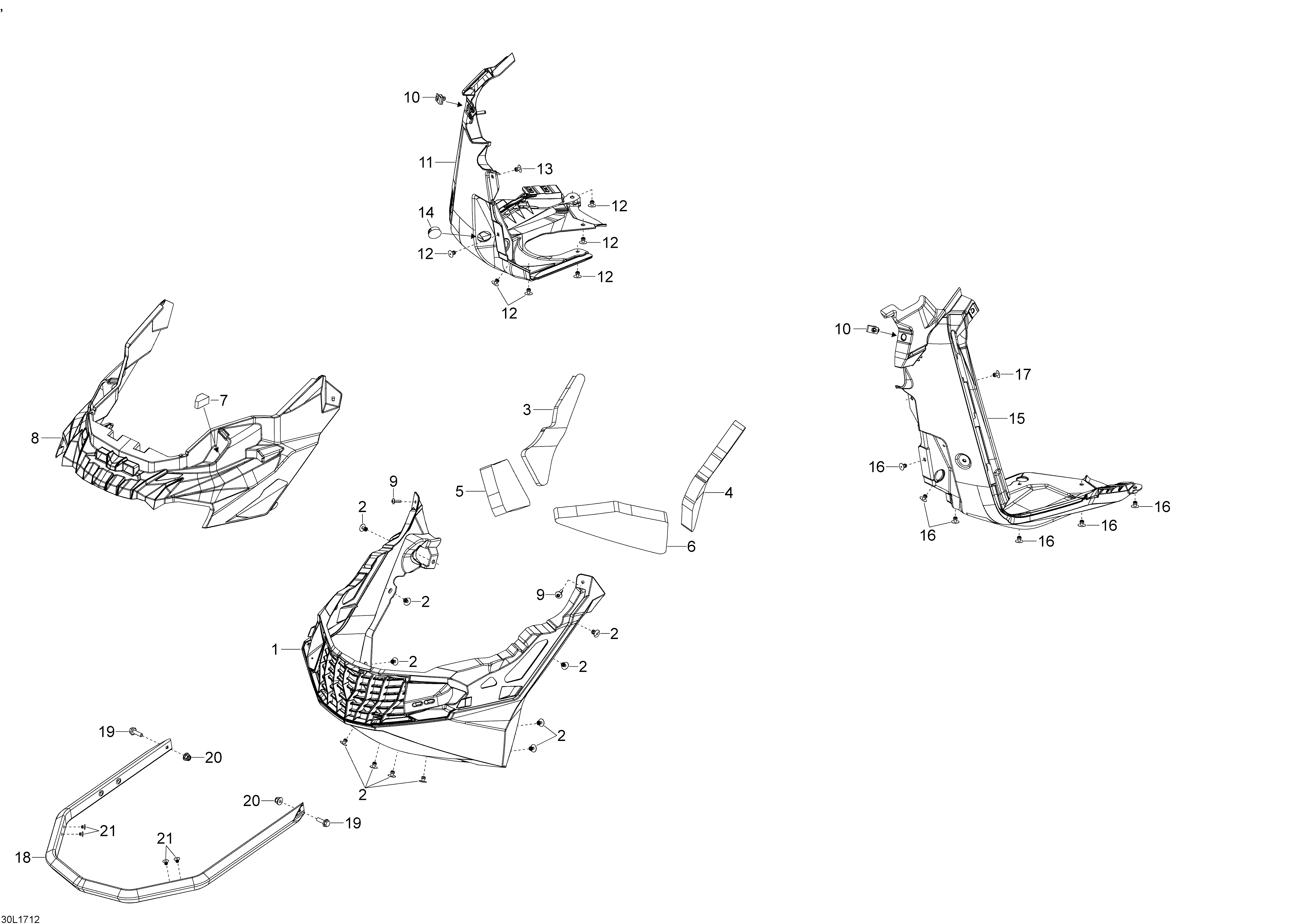

09- Bottom Pan для BRP Lynx BoonDocker RE, 2017 - 2017
-
№АртикулНазвание
-
1502007396 Yellow Bottom PanYellow Bottom Pan
-
1502007172 Deep Black Bottom Pan. Black Edition ModelDeep Black Bottom Pan. Black Edition Model
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007243 RH Foam UpperRH Foam Upper
-
4502007244 LH Foam UpperLH Foam Upper
-
5502007245 RH Foam LowerRH Foam Lower
-
6502007246 LH Foam LowerLH Foam Lower
-
7517305812 FoamFoam
-
8502007284 Front CapFront Cap
-
9250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
10250000079 Panel Nut M5Panel Nut M5
-
11502007259 Black RH Bottom PanBlack RH Bottom Pan
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414916600 PlugPlug
-
15502007260 Black LH Bottom PanBlack LH Bottom Pan
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
18502007281 BumperBumper
-
19207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
20233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
