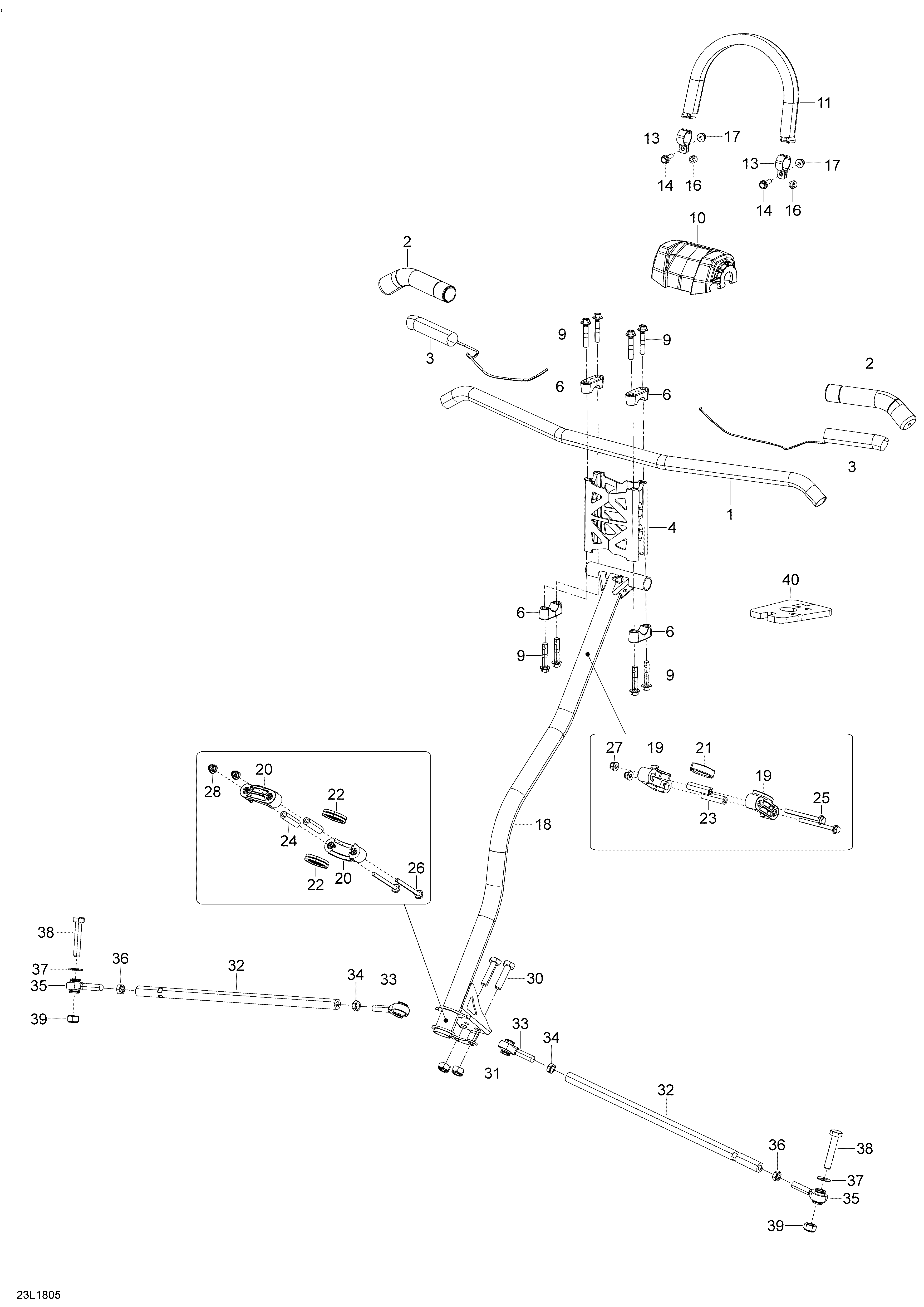

07- Steering 69 Ranger Alpine для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4860200269 Handlebar ExtensionHandlebar Extension
-
6506152750 Steering SupportSteering Support
-
9250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
10506152553 Steering PadSteering Pad
-
11506152115 Strap Ass'yStrap Ass'y
-
13506152536 Black Support PlateBlack Support Plate
-
14207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16506152156 BushingBushing
-
17233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
18506152964 Steering ColumnSteering Column
-
19506152508 Upper Half-HousingUpper Half-Housing
-
20506152217 Lower Half-HousingLower Half-Housing
-
21506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
22506152518 Lower Vibration RingLower Vibration Ring
-
23506152297 Housing BushingHousing Bushing
-
24506152297 Housing BushingHousing Bushing
-
25207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
26207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
27233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
28233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
29506152163 PlatePlate
-
30207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32506152496 Tie-RodTie-Rod
-
33506152081 LH Thread Ball JointLH Thread Ball Joint
-
34250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
35506152019 RH Thread Ball JointRH Thread Ball Joint
-
36732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
37506152582 WasherWasher
-
38207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
39233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
40506152404 CushionCushion
