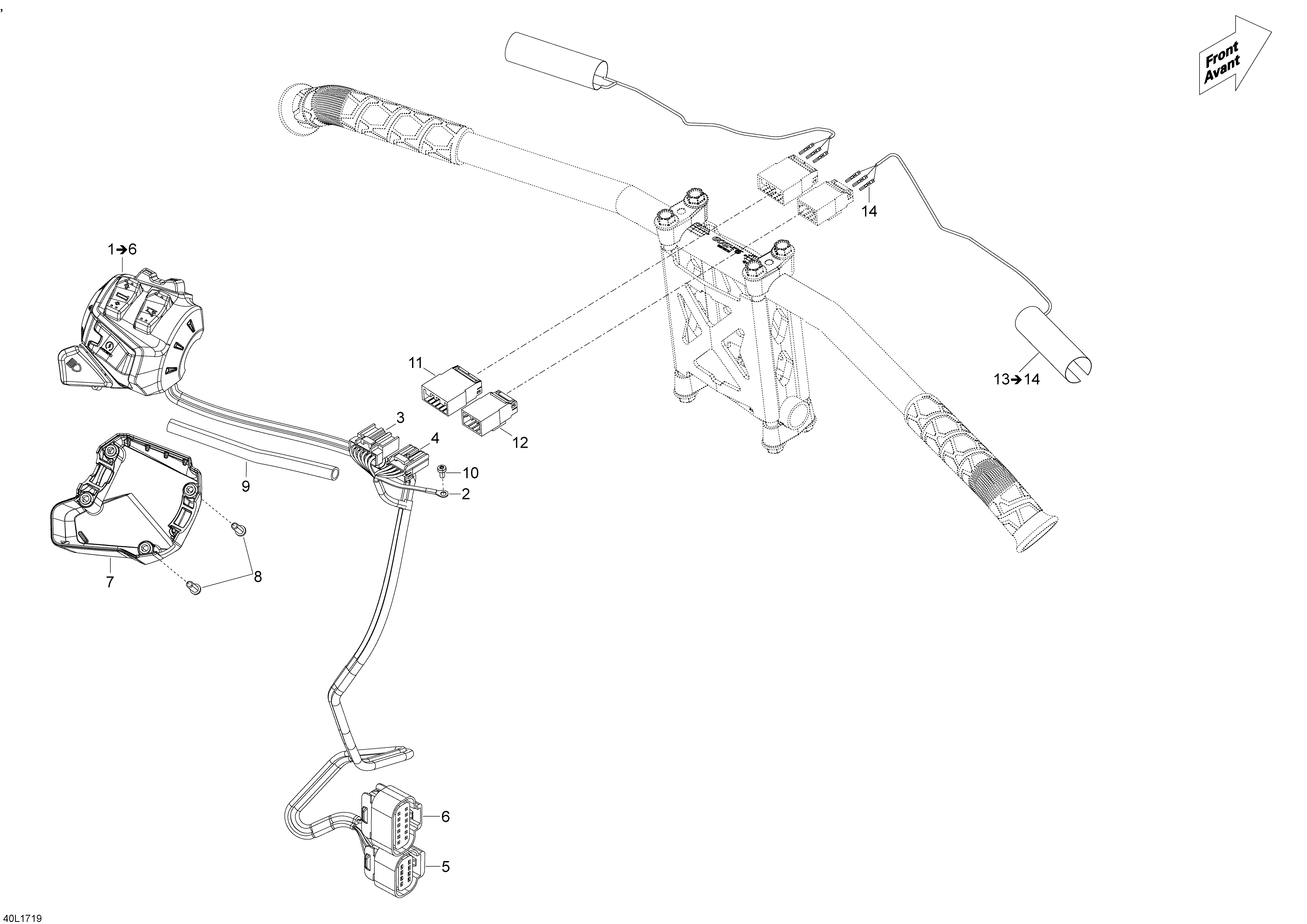

10- Steering Wiring Harness 2018 для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
1515178197 LH Switch Housing. Includes 1 To 6LH Switch Housing. Includes 1 To 6
-
2515175504 Ring TerminalRing Terminal
-
3515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
3515175231 Female TerminalFemale Terminal
-
4515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
4515175231 Female TerminalFemale Terminal
-
5710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
6710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
7515177147 Switch Housing PlateSwitch Housing Plate
-
8250000671 Torx Screw #8-18Torx Screw #8-18
-
9415129879 Protector TubeProtector Tube
-
10250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
11515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
12515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
13506152428 Heating Element (25W). Includes 13 To 14Heating Element (25W). Includes 13 To 14
-
14515175232 Male TerminalMale Terminal
