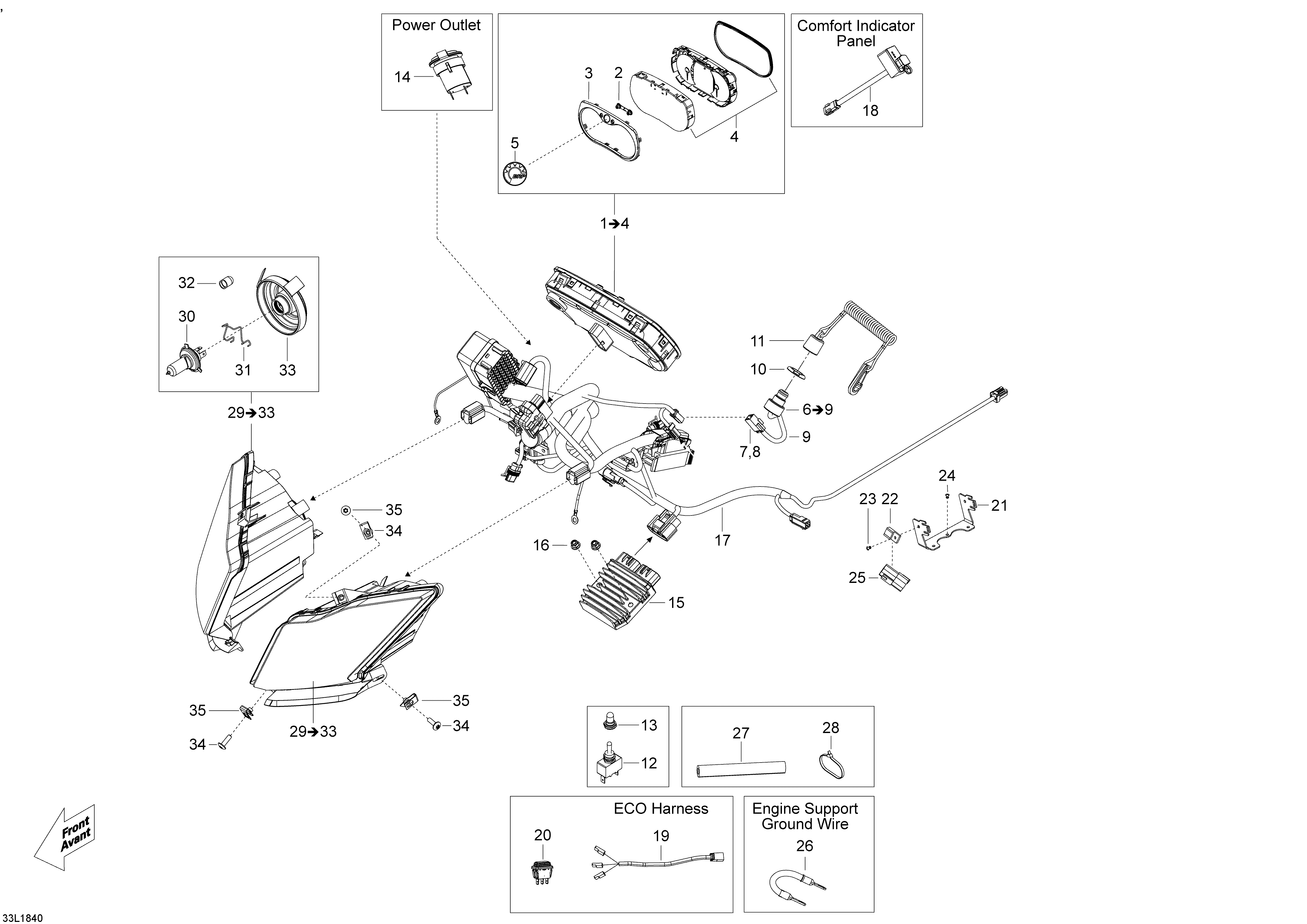

10- Electrical System для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
1515177913 Indicator. Includes 1 To 4Indicator. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515178044 DESS CapDESS Cap
-
11515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12410110700 Heat Grip SwitchHeat Grip Switch
-
13515175281 Switch CoverSwitch Cover
-
14710001248 Outlet DCOutlet DC
-
15515177325 Voltage RegulatorVoltage Regulator
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17515178125 Main HarnessMain Harness
-
18515177377 Comfort Indicator PanelComfort Indicator Panel
-
19515177568 ECO HarnessECO Harness
-
20515177569 ECO Rocker SwitchECO Rocker Switch
-
21515178394 Fusebox SupportFusebox Support
-
22270000141 ClipClip
-
23293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25710003006 HousingHousing
-
26515176883 Ground WireGround Wire
-
27605355344 Aluminium Coated Fiberglass TubeAluminium Coated Fiberglass Tube
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
29517304194 RH Headlamp Ass'y. Includes 29 To 33RH Headlamp Ass'y. Includes 29 To 33
-
29517304195 LH Headlamp Ass'y. Includes 29 To 33LH Headlamp Ass'y. Includes 29 To 33
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176498 CapCap
-
33515176499 CoverCover
-
34250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
35250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
