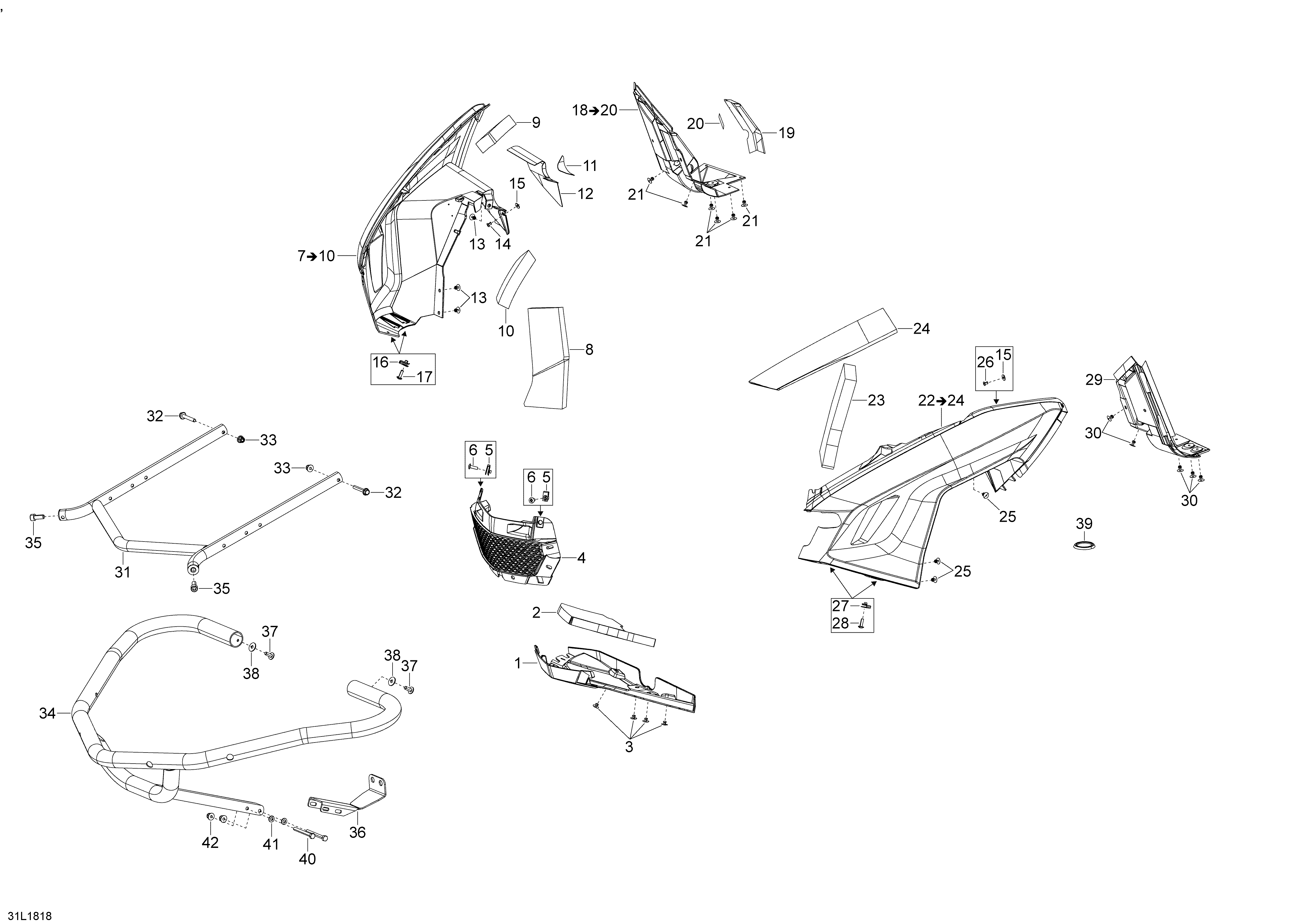

09- Bottom Pan 69Ranger - Alpine для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
6250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7502007180 Bottom Pan, Rh Ass'y. Ce. Includes 400 to 400,003Bottom Pan, Rh Ass'y. Ce. Includes 400 to 400,003
-
502007181 Bottom Pan Ce RHBottom Pan Ce RH
-
8502007526 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11517306507 Heat ShieldHeat Shield
-
12517306508 Heat ShieldHeat Shield
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15234052450 Flat WasherFlat Washer
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
18502007825 Bottom-pan Rear Ass'y, Rh. Includes 500 to 500,002Bottom-pan Rear Ass'y, Rh. Includes 500 to 500,002
-
19502007038 Aluminium FoilAluminium Foil
-
2044110 Aluminum foilAluminum foil
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22502007664 Bottom Pan, Lh Assy Ce. Includes 600 to 600,002Bottom Pan, Lh Assy Ce. Includes 600 to 600,002
-
23502007003 InsulatorInsulator
-
24502007185 InsulatorInsulator
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
28250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
29502007827 Bottom Pan Rear, LhBottom Pan Rear, Lh
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
31502007235 Bumper Weld PaintedBumper Weld Painted
-
32207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
36502007022 Lower Fastening PlateLower Fastening Plate
-
37250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
3820117 WasherWasher
-
39518329102 Oil Plate CoverOil Plate Cover
-
40207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
41234061410 Flat Washer 6 mmFlat Washer 6 mm
-
42233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
