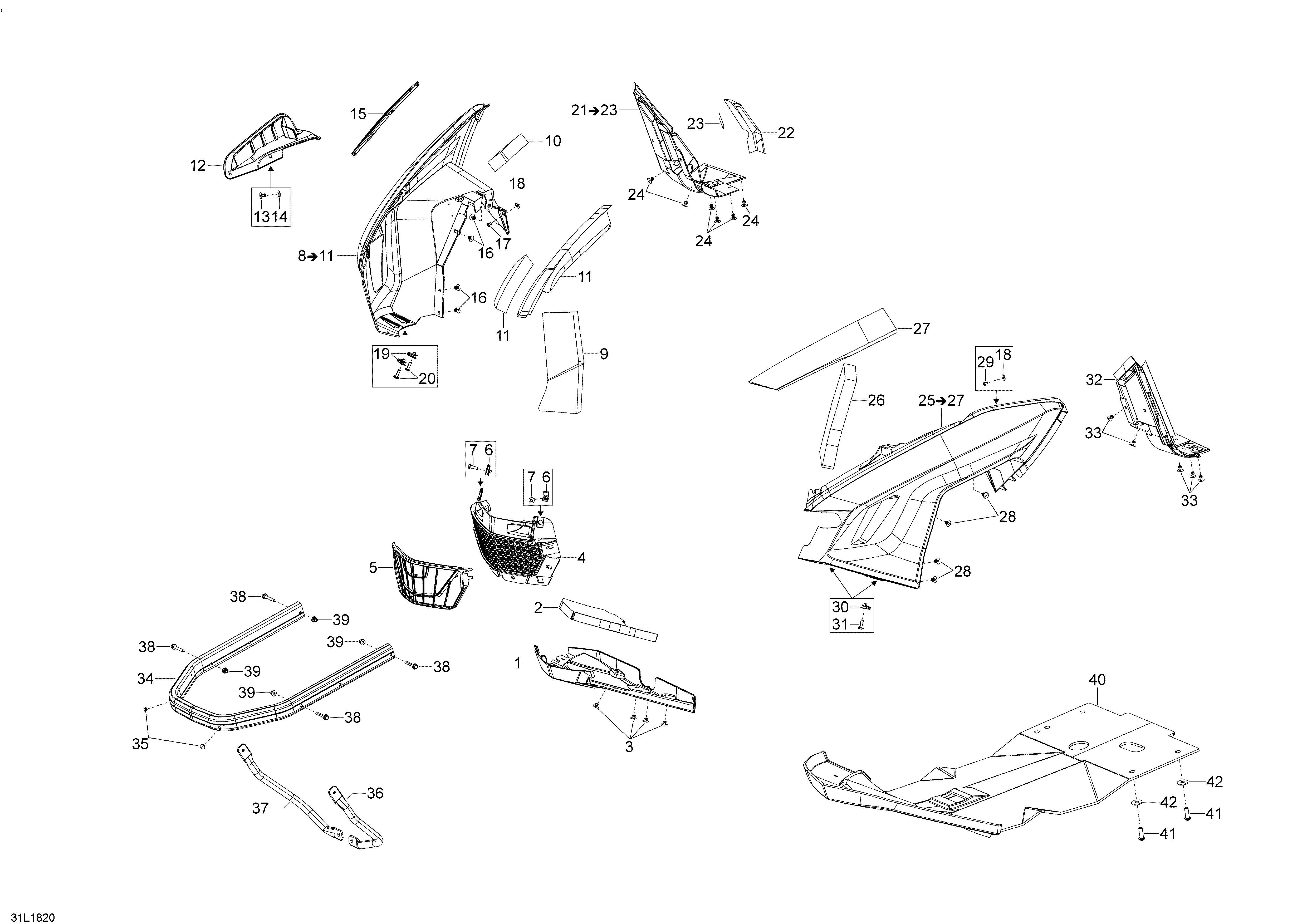

09- Bottom Pan 69Ranger - Army LTD для BRP Lynx 69 Ranger 1200 4-TEC - 2018
-
№АртикулНазвание
-
1502007184 Black Bottom Pan FrontBlack Bottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5502007393 Front Grill With MeshFront Grill With Mesh
-
732610072 Push NutPush Nut
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8502007520 Black Bottom Pan Ass'y, RH. Includes 8 to 10Black Bottom Pan Ass'y, RH. Includes 8 to 10
-
9502007526 InsulatorInsulator
-
10517305977 InsulatorInsulator
-
12517306541 Bottom Pan Air Vent Rh.Bottom Pan Air Vent Rh.
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14250200025 Washer M5Washer M5
-
15517305976 Bottom Pan Grill RHBottom Pan Grill RH
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18234052450 Flat WasherFlat Washer
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
21502007823 Bottom Pan Rear Ass'y Rh. Includes 21 to 23Bottom Pan Rear Ass'y Rh. Includes 21 to 23
-
22502007038 Aluminium FoilAluminium Foil
-
2344110 Aluminum foilAluminum foil
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25502007665 Black LH Bottom Pan Ass?y. Includes 25 to 27Black LH Bottom Pan Ass?y. Includes 25 to 27
-
26502007003 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
31250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32502007827 Bottom Pan Rear, LhBottom Pan Rear, Lh
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34502007761 Bumper, Orange RaceBumper, Orange Race
-
35293730047 Black Dart 8 mmBlack Dart 8 mm
-
36502007014 LH Bumper SupportLH Bumper Support
-
37502007015 RH Bumper SupportRH Bumper Support
-
38207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
39233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
900860200549 Skid Plate Kit. Not Shown. Includes 900 to 900,006Skid Plate Kit. Not Shown. Includes 900 to 900,006
-
900.001502007319 Skid Plate Fastening Parts Xu Aa. Not Shown. Includes 900,001 to 900,006Skid Plate Fastening Parts Xu Aa. Not Shown. Includes 900,001 to 900,006
-
900.002502007066 Skid Plate Fastener. Not ShownSkid Plate Fastener. Not Shown
-
900.003205982086 Socket Head Screw M8 X 20, Scotch Grip. Not ShownSocket Head Screw M8 X 20, Scotch Grip. Not Shown
-
900.004234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
-
900.005250000722 Torx Screw M6 X 20. Not ShownTorx Screw M6 X 20. Not Shown
-
900.006250100165 Hex. Flanged Elastic Nut M10. Not ShownHex. Flanged Elastic Nut M10. Not Shown
-
910250000757 Screw-Torx Button Head M8 X 25 S.Gr. Not ShownScrew-Torx Button Head M8 X 25 S.Gr. Not Shown
-
920234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
