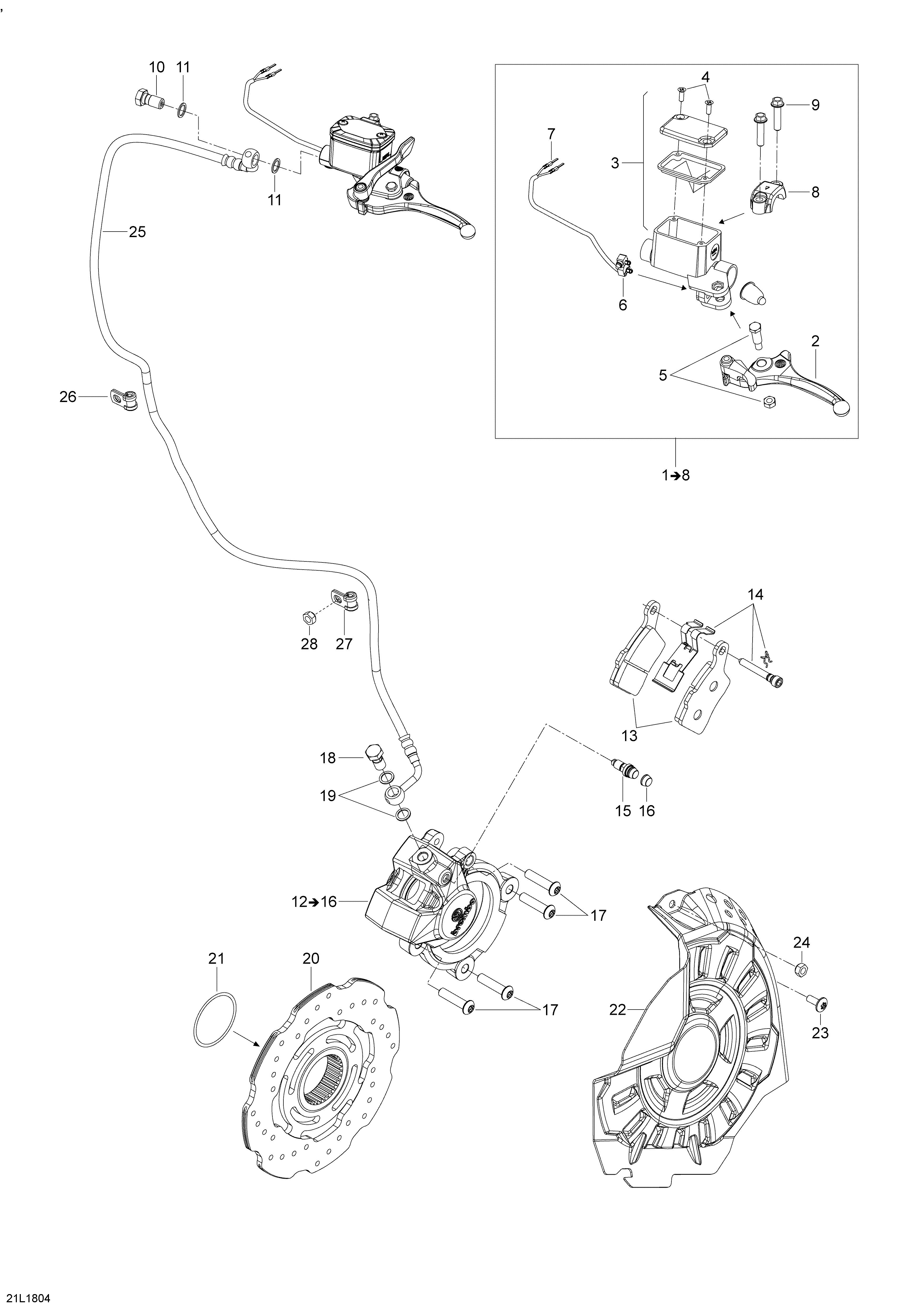

06- Brakes Rave - Rac Kit для BRP Lynx RAVE 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1507032511 Cylinder Master Ass'y. Includes 10 to 10,004Cylinder Master Ass'y. Includes 10 to 10,004
-
2507032428 LeverLever
-
3415029900 CapCap
-
5415030000 Pin Ass'yPin Ass'y
-
6507032526 MicroswitchMicroswitch
-
8507032477 Clamp And Screw Kit. Includes 11 to 11,001Clamp And Screw Kit. Includes 11 to 11,001
-
40250000447 Hex Flanged Screw M6 X 25. Not ShownHex Flanged Screw M6 X 25. Not Shown
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032603 Brake Caliper Ass'y. Includes 200 to 200,003Brake Caliper Ass'y. Includes 200 to 200,003
-
13507032489 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21293300209 O-ringO-ring
-
22507032546 Disk Protector BlackDisk Protector Black
-
23250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
24233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
25507032540 HoseHose
-
26414108400 Open ClampOpen Clamp
-
27503193393 ClampClamp
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
