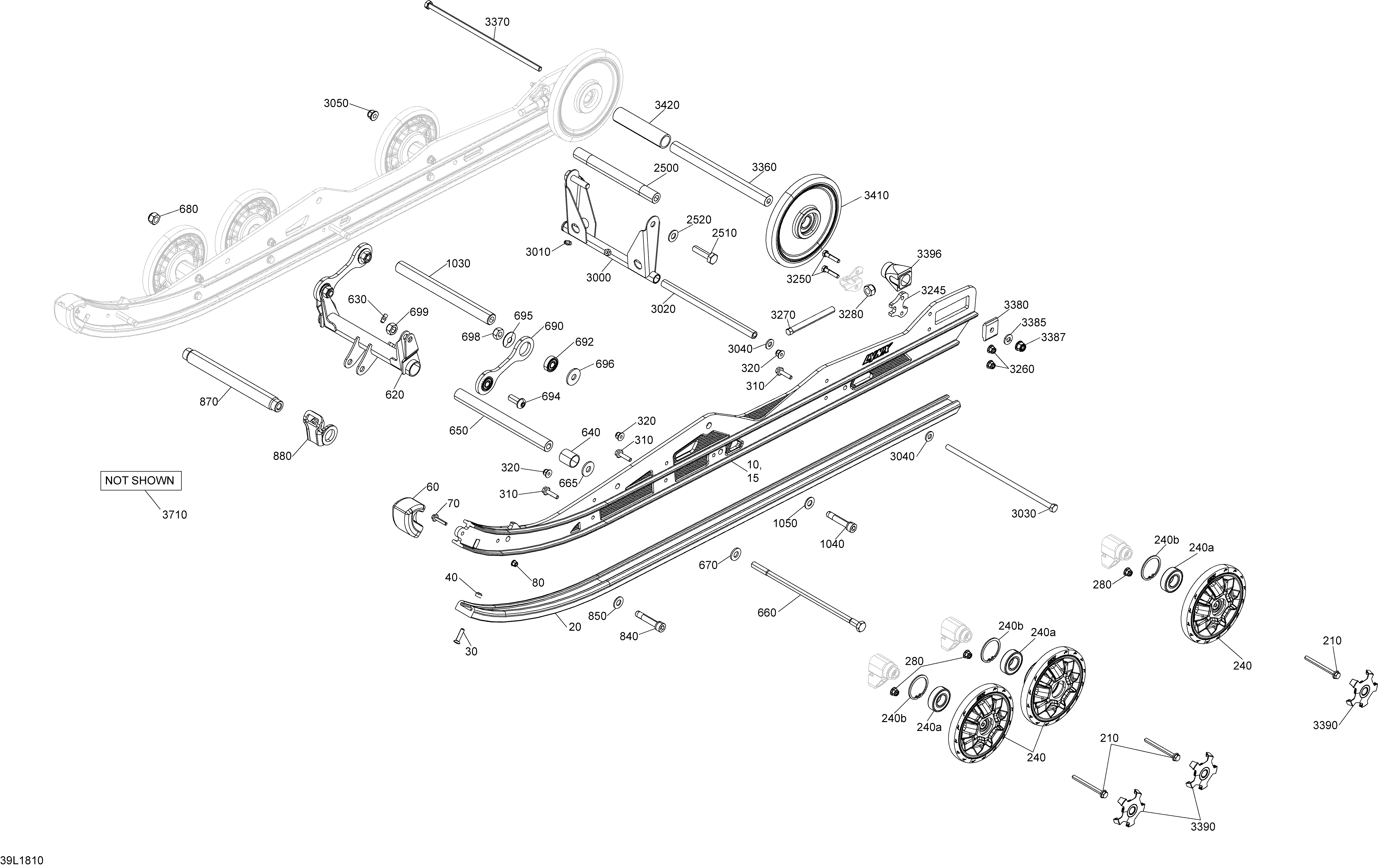

08- Rear Suspension RAVE - 600HO E-TEC - RE для BRP Lynx RAVE 600 HO E-TEC - 2018
-
№АртикулНазвание
-
10503194735 LH RunnerLH Runner
-
15503194736 RH RunnerRH Runner
-
20503192618 Black Slider, 154''Black Slider, 154''
-
30208562531 Phillips Screw M6 X 1.0 X 25Phillips Screw M6 X 1.0 X 25
-
40232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
60503192299 Runner ProtectorRunner Protector
-
70207652544 Hex. Flanged Screw M5 X 0.8 X 25Hex. Flanged Screw M5 X 0.8 X 25
-
80233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
240503193734 Wheel-141mm. Includes 240 to 240bWheel-141mm. Includes 240 to 240b
-
240a503190396 Ball BearingBall Bearing
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620503194799 Front SwingFront Swing
-
630408200700 Grease FittingGrease Fitting
-
640503193822 BushingBushing
-
650503193893 Lower ShaftLower Shaft
-
660503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
665503191926 WasherWasher
-
670250200138 WasherWasher
-
680233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
690605254159 Connecting RodConnecting Rod
-
692503194696 BearingBearing
-
694205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
69525004 Cup SpringCup Spring
-
696234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
698233401414 Lock Spring Nut M10Lock Spring Nut M10
-
699232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
840205505054 Socket ScrewSocket Screw
-
850503192496 WasherWasher
-
870503195015 Limiter Strap ShaftLimiter Strap Shaft
-
880503194867 Holder, Limiter StrapHolder, Limiter Strap
-
10305343471 ShaftShaft
-
1040205505054 Socket ScrewSocket Screw
-
1050503192496 WasherWasher
-
2500503193638 Shaft-lowerShaft-lower
-
2510207204044 Hexagonal ScrewHexagonal Screw
-
2520503192496 WasherWasher
-
3000503194342 Rear SwingRear Swing
-
3010408200700 Grease FittingGrease Fitting
-
3020503189156 Pivot Arm AxlePivot Arm Axle
-
3030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3040503192494 WasherWasher
-
3050233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3245503193250 SpacerSpacer
-
3250207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3260233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3270230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3280233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3360503194105 Rear ShaftRear Shaft
-
3370503194069 Bolt M8Bolt M8
-
3380503194067 Slidder AxleSlidder Axle
-
3385250200159 Washer-Spring Conical M8Washer-Spring Conical M8
-
3387233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3390503194950 Black, Wheel CapBlack, Wheel Cap
-
3396503190428 Rear Wheel SpacerRear Wheel Spacer
-
3410503192140 Black Wheel Ass'y, 165 mmBlack Wheel Ass'y, 165 mm
-
3420503191263 Rear SpacerRear Spacer
-
3710414115200 Tie-Rap 180 mmTie-Rap 180 mm
