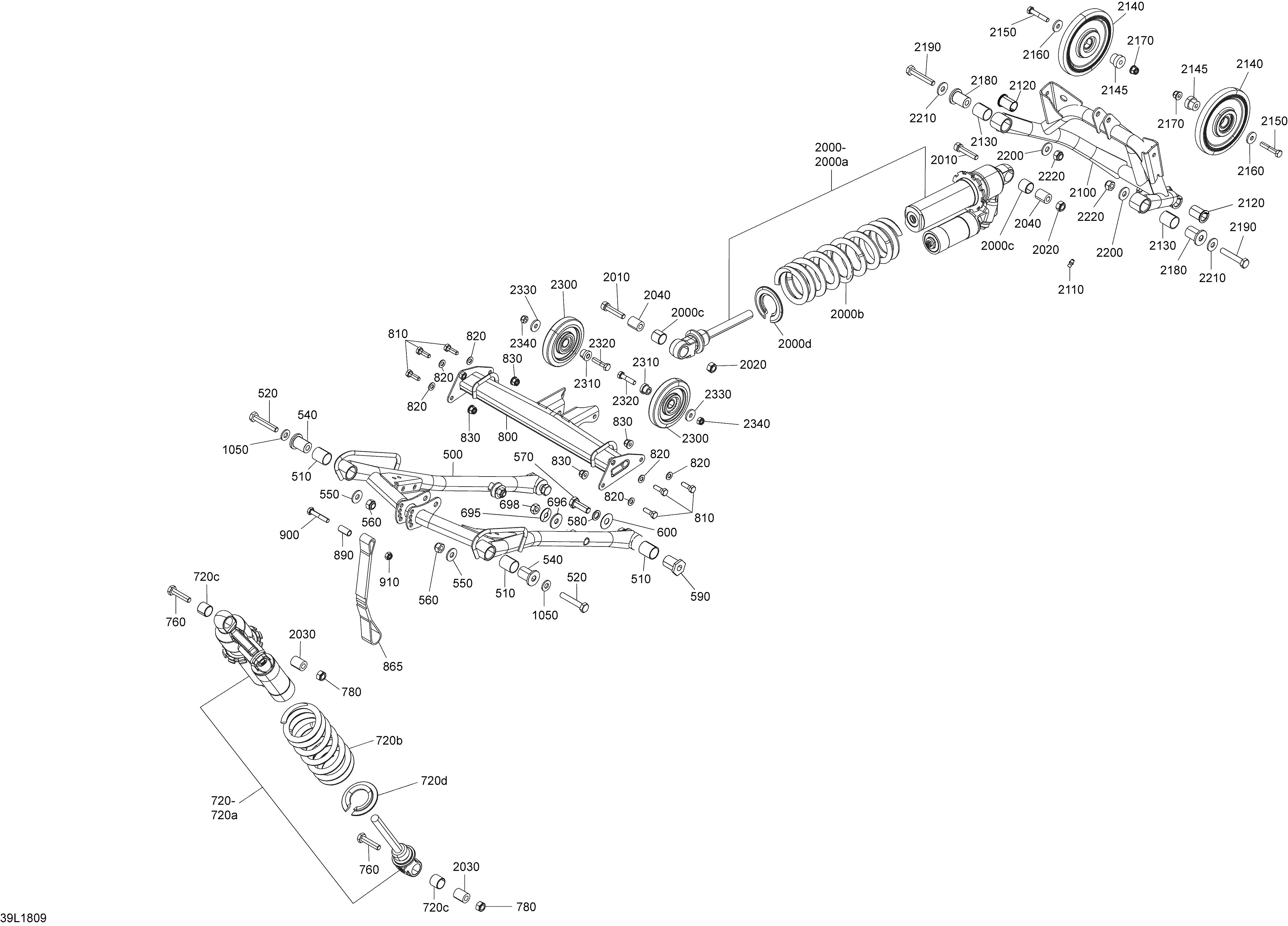

08- Rear Suspension RAVE - 600HO E-TEC - RS для BRP Lynx RAVE 600 HO E-TEC - 2018
-
№АртикулНазвание
-
500503193561 Front ArmFront Arm
-
510503191554 BushingBushing
-
520250000696 Hexagonal ScrewHexagonal Screw
-
530503191926 WasherWasher
-
540503194580 Upper Axle SleeveUpper Axle Sleeve
-
550503191926 WasherWasher
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
580503192491 WasherWasher
-
590503194579 Lower Axle SleeveLower Axle Sleeve
-
600503190656 WasherWasher
-
69525004 Cup SpringCup Spring
-
696234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
698233401414 Lock Spring Nut M10Lock Spring Nut M10
-
720a503194792 ShockShock
-
720b503192355 SpringSpring
-
720c31094 CushionCushion
-
720d605354631 Spring LockSpring Lock
-
760207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
800503193623 Middle BeamMiddle Beam
-
810250000556 Hexagonal ScrewHexagonal Screw
-
820503192494 WasherWasher
-
830233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
865605355116 Limiter StrapLimiter Strap
-
890605455335 SleeveSleeve
-
900207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
910232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2000a503194794 ShockShock
-
2000b503192356 SpringSpring
-
2000c31094 CushionCushion
-
2000d605354631 Spring LockSpring Lock
-
2010205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
2020232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20305446652 BushingBushing
-
20405446652 BushingBushing
-
2100503193571 Rear Arm WeldRear Arm Weld
-
2110408200700 Grease FittingGrease Fitting
-
2120503191640 CushionCushion
-
2130503191554 BushingBushing
-
2140503193852 Idler WheelIdler Wheel
-
2145605454461 SleeveSleeve
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
216020077 M8 WasherM8 Washer
-
2170233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
2180503194580 Upper Axle SleeveUpper Axle Sleeve
-
2190250000696 Hexagonal ScrewHexagonal Screw
-
2200503191926 WasherWasher
-
2210503191926 WasherWasher
-
2220233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
233020077 M8 WasherM8 Washer
-
2340232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
