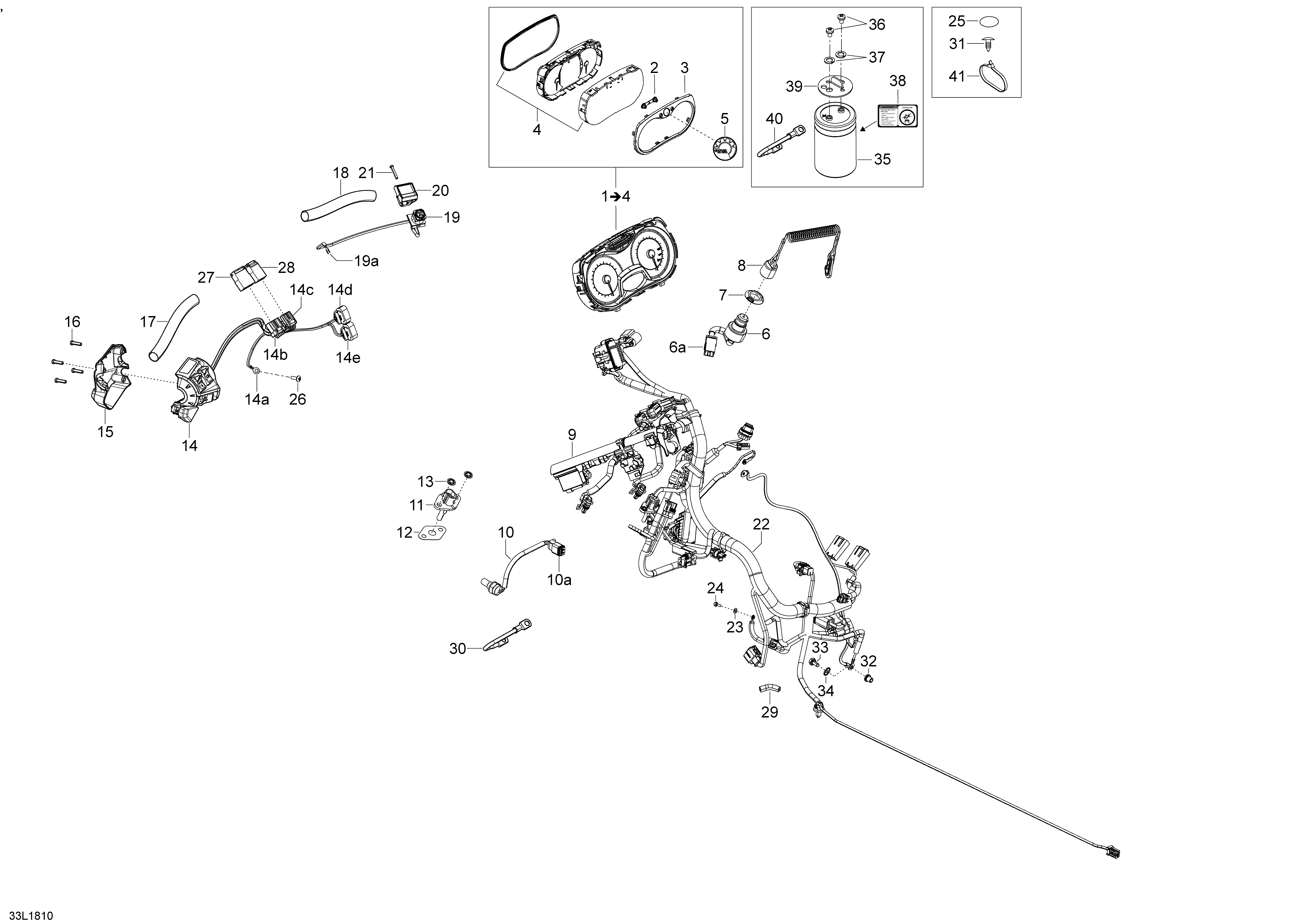

10- Electrical Rave - 600 HO E-TEC для BRP Lynx RAVE 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS Switch. Includes 6 to 6aDESS Switch. Includes 6 to 6a
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175232 Male TerminalMale Terminal
-
8515178288 KeyKey
-
9515177134 Connector PlateConnector Plate
-
10515177813 Temperature SensorTemperature Sensor
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a278000632 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a293000052 Sealing CapSealing Cap
-
10a515175675 Female LockFemale Lock
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
12508000769 SealSeal
-
13389804300 Push NutPush Nut
-
14515178305 LH Switch HousingLH Switch Housing
-
14a515175504 Ring TerminalRing Terminal
-
14b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14b515175231 Female TerminalFemale Terminal
-
14c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
14c515175231 Female TerminalFemale Terminal
-
14d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
14e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
15515177149 LH Switch Housing PlateLH Switch Housing Plate
-
16250000671 Torx ScrewTorx Screw
-
17415129879 Protector TubeProtector Tube
-
18415129879 Protector TubeProtector Tube
-
19515177362 Kill SwitchKill Switch
-
20515177310 Kill Switch SupportKill Switch Support
-
21250000263 Torx Screw #8-18Torx Screw #8-18
-
22515177984 Main HarnessMain Harness
-
23234141601 Lock Washer 4 mmLock Washer 4 mm
-
24250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
25518325560 Adhesive PatchAdhesive Patch
-
26250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
27515175232 Male TerminalMale Terminal
-
28515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
28515175232 Male TerminalMale Terminal
-
29520001525 TrimTrim
-
30515177289 Ground WireGround Wire
-
31414644300 DartDart
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
35515177272 CapacitorCapacitor
-
36250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
37250200026 Lock washerLock washer
-
38516006206 Capacitor DecalCapacitor Decal
-
39515177193 CapCap
-
40515178052 Ground WireGround Wire
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3250515177495 Warmer Harness. Not ShownWarmer Harness. Not Shown
-
3260515177497 Handwarmer Rocker Switch. Not ShownHandwarmer Rocker Switch. Not Shown
-
3270515177498 Thumb Warmer Rocker Switch. Not ShownThumb Warmer Rocker Switch. Not Shown
