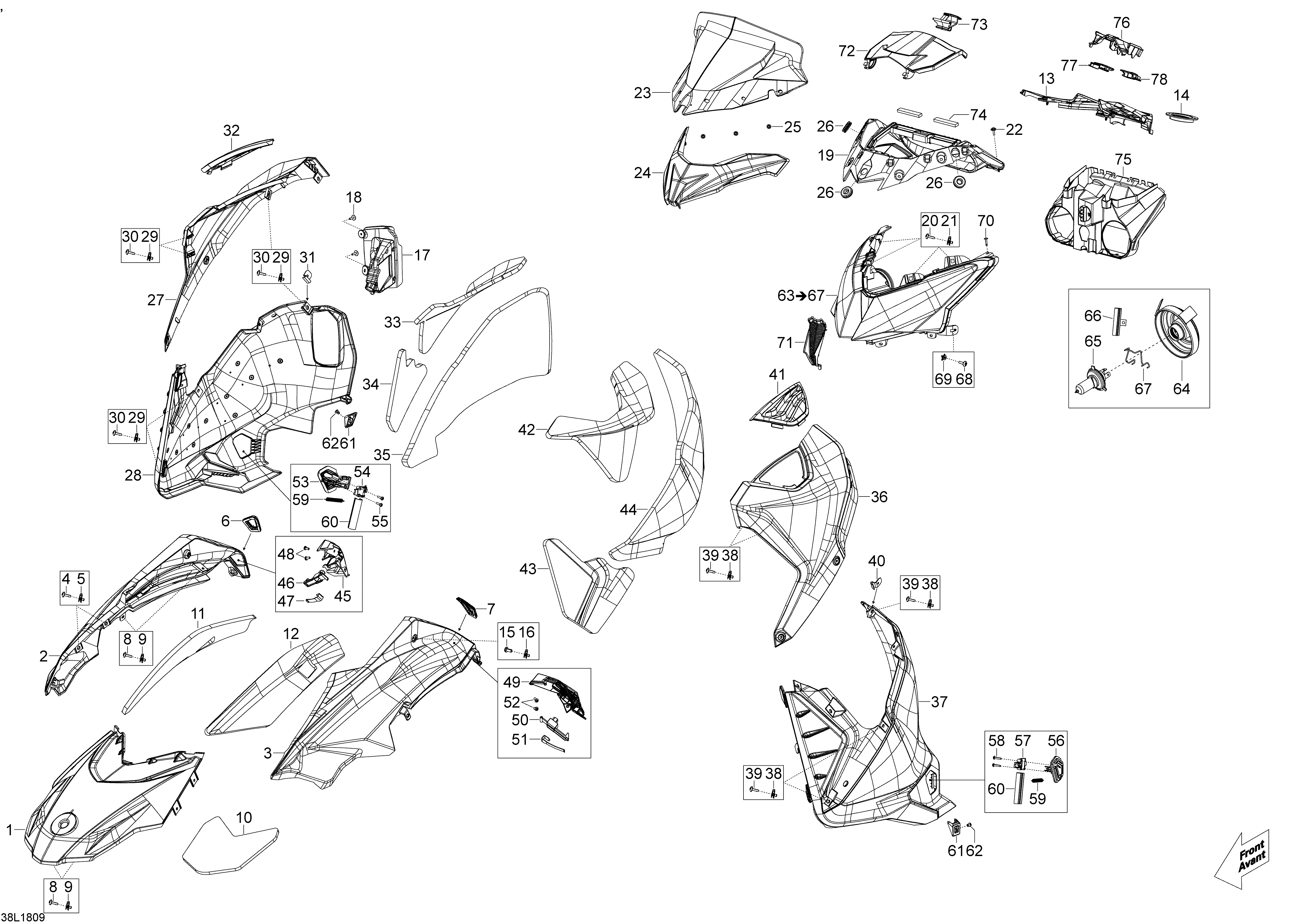

09- Hood RAVE - 600HO E-TEC для BRP Lynx RAVE 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1517305604 HoodHood
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
9250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305205 Console RearConsole Rear
-
14517304518 Console NutConsole Nut
-
15250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
16250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17517305060 Deep Black RH ConsoleDeep Black RH Console
-
18250000725 Screw M4 X 16Screw M4 X 16
-
19517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
23517304921 Windshield 235mmWindshield 235mm
-
24517305307 SupportSupport
-
25732610072 Push NutPush Nut
-
26517303756 GrommetGrommet
-
27517305250 Side Panel Hub Cap RhSide Panel Hub Cap Rh
-
28517305249 Panel RHPanel RH
-
29250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
30250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
31517305515 Guide PlateGuide Plate
-
32517305251 GrillGrill
-
33517306358 FoamFoam
-
34517306359 FoamFoam
-
35517306360 FoamFoam
-
36517305252 LH PanelLH Panel
-
37517305253 LH PanelLH Panel
-
38250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
39250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
40517305515 Guide PlateGuide Plate
-
41517305254 GrillGrill
-
42517305488 FoamFoam
-
43517305489 FoamFoam
-
44517305490 FoamFoam
-
45517305315 Lock Body Rh.Lock Body Rh.
-
46517306019 Lock ArmLock Arm
-
47517305317 Lock SpringLock Spring
-
48205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
49517305319 Lock Body Lh.Lock Body Lh.
-
50517306019 Lock ArmLock Arm
-
51517305317 Lock SpringLock Spring
-
52205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
53517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
54517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
55250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
56517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
57517305759 Lh Bottom Lock Fixing PartLh Bottom Lock Fixing Part
-
58250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
59517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
60517305452 Bottom Lock SleeveBottom Lock Sleeve
-
61517305323 Side Panel SupportSide Panel Support
-
62390909100 Avex RivetAvex Rivet
-
62.1517305290 LH Arm. Package RELH Arm. Package RE
-
62.2517305293 RH Arm. Package RERH Arm. Package RE
-
62.3517305291 LH Deflector. Package RELH Deflector. Package RE
-
62.4517305294 RH Deflector. Package RERH Deflector. Package RE
-
62.5517305546 Cap. Package RECap. Package RE
-
62.6517305547 Cap. Package RECap. Package RE
-
62.7517305296 Bride. Package REBride. Package RE
-
62.8250000760 Torx Screw Truss Head K50 X 20. Package RETorx Screw Truss Head K50 X 20. Package RE
-
62.9250000724 Torx Screw M5 X 20. Package RETorx Screw M5 X 20. Package RE
-
63517306180 Headlamp. Includes 63 to 67Headlamp. Includes 63 to 67
-
64219400070 CapCap
-
65515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
66219800282 Holder BracketHolder Bracket
-
67219800281 SpringSpring
-
68250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
69250100035 Jack Nut M5Jack Nut M5
-
70250000725 Screw M4 X 16Screw M4 X 16
-
71517305350 CapCap
-
72517304912 Upper Storage Access CoverUpper Storage Access Cover
-
73517304917 Cover LatchCover Latch
-
74517305157 Seal JointSeal Joint
-
75517305095 TrunkTrunk
-
76517304970 Console SupportConsole Support
-
77517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
78517305148 Support Console CapSupport Console Cap
-
85517305813 Foam. Package REFoam. Package RE
-
86294000973 Friction Tape. Package REFriction Tape. Package RE
