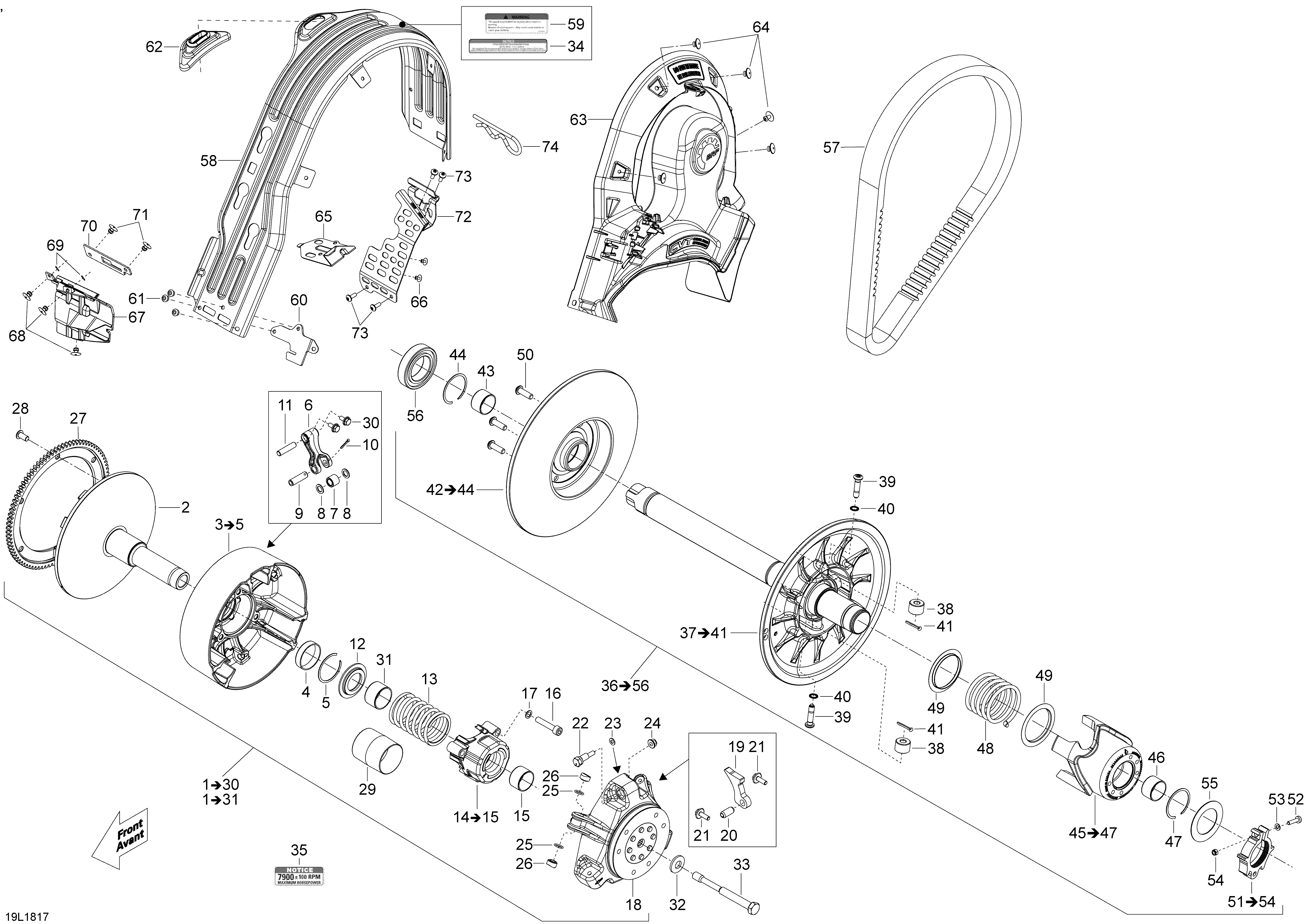

05- Pulley Xtrim - 600HO E-TEC - RE для BRP Lynx XTRIM 600 HO E-TEC - 2018
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 5Sliding Flange Ass'y. Includes 3 to 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417222671 LeverLever
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417004308 PinPin
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414817700 Spring, Blue/greenSpring, Blue/green
-
14417007500 Spring Cover Ass'y. Includes 14 to 15Spring Cover Ass'y. Includes 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
19417222515 Ramp 412Ramp 412
-
20250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
22417223501 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25732401030 O-RingO-Ring
-
26417222992 Slider ShoeSlider Shoe
-
27417223738 Ring GearRing Gear
-
28250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
29417009205 GuardGuard
-
30250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
32250200144 Conical Spring Washer M14Conical Spring Washer M14
-
33417120000 Drive Pulley BoltDrive Pulley Bolt
-
34516005503 Decal, EnglishDecal, English
-
37417127387 Fix Flange Ass'y. Includes 37 to 41Fix Flange Ass'y. Includes 37 to 41
-
38417127016 RollerRoller
-
39417127294 Pivot StudPivot Stud
-
40250200009 Lock Washer 8 mmLock Washer 8 mm
-
41250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
42417127317 Sliding Flange Ass'y. Includes 42 to 44Sliding Flange Ass'y. Includes 42 to 44
-
43417127318 BushingBushing
-
44293370049 CirclipCirclip
-
45417127319 Cam Ass'y. Includes 45 to 47Cam Ass'y. Includes 45 to 47
-
46417127318 BushingBushing
-
47293370049 CirclipCirclip
-
48417127137 Green SpringGreen Spring
-
49417127116 Swivel AbutmentSwivel Abutment
-
51415129604 Calibration Ass'yCalibration Ass'y
-
52205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
53234051410 Flat Washer M5Flat Washer M5
-
54232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
55417127155 WasherWasher
-
56504152574 Ball BearingBall Bearing
-
57417300383 Drive BeltDrive Belt
-
58417300357 Belt GuardBelt Guard
-
59516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
60417300423 Front BracketFront Bracket
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300441 CVT Air DuctCVT Air Duct
-
64293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
65417300445 StopperStopper
-
66390909200 Avex RivetAvex Rivet
-
67417300430 Front SupportFront Support
-
68293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
69517225900 Flat WasherFlat Washer
-
70417300421 Reinforcement PlateReinforcement Plate
-
71390909200 Avex RivetAvex Rivet
-
72417300448 Belt Guard BracketBelt Guard Bracket
-
73250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
74114045200 Hair PinHair Pin
