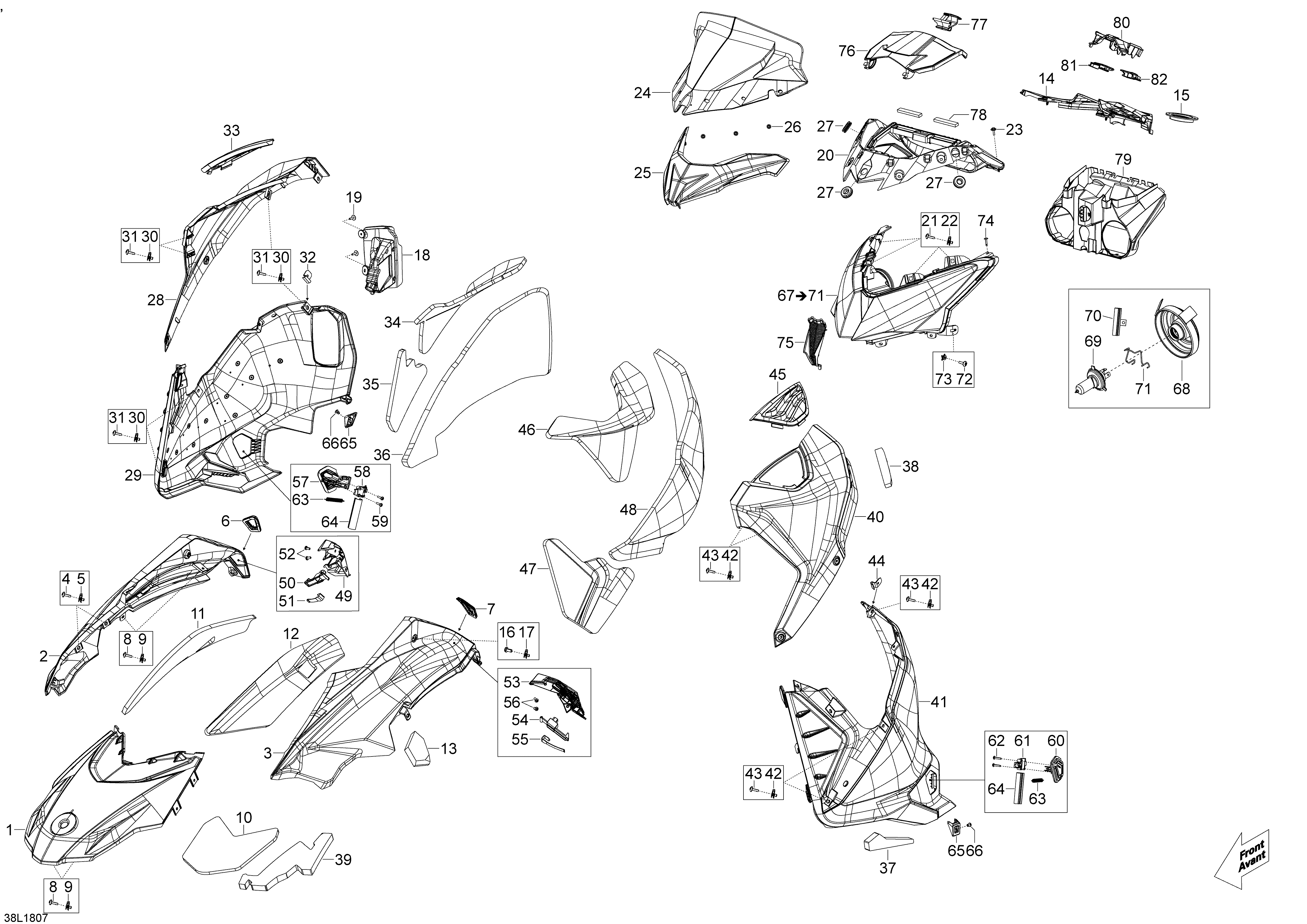

09- Hood XTRIM - 600HO E-TEC для BRP Lynx XTRIM 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1517305246 Hood. Package REHood. Package RE
-
1517305566 Hood. Package SCHood. Package SC
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
9250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305824 Foam. Package REFoam. Package RE
-
14517305205 Console RearConsole Rear
-
15517304518 Console NutConsole Nut
-
16250000528 Torx Screw M5 X 20. Package RETorx Screw M5 X 20. Package RE
-
16517305531 Knob. Package SCKnob. Package SC
-
17250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18517305060 Deep Black RH ConsoleDeep Black RH Console
-
19250000725 Screw M4 X 16Screw M4 X 16
-
20517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
21250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
24860201070 Winshield 410. Package SC. Includes 24 to 26,2Winshield 410. Package SC. Includes 24 to 26,2
-
24860201070 Winshield 410. Package SCWinshield 410. Package SC
-
24.1517304921 Windshield 235mm. Package REWindshield 235mm. Package RE
-
25517305307 SupportSupport
-
26732610072 Push NutPush Nut
-
26.1517302841 Grommet. Package SCGrommet. Package SC
-
26.2517305531 Knob. Package SCKnob. Package SC
-
27517303756 GrommetGrommet
-
28517305425 Panel RH. Package SCPanel RH. Package SC
-
28517306105 Side Panel Hub Cap Rh. Package RESide Panel Hub Cap Rh. Package RE
-
29517305249 Panel RHPanel RH
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
31250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
32517305515 Guide PlateGuide Plate
-
33517305251 GrillGrill
-
34517306358 FoamFoam
-
35517306359 FoamFoam
-
36517306360 FoamFoam
-
37517305813 Foam. Package REFoam. Package RE
-
38517305814 Foam. Package REFoam. Package RE
-
39517305815 Foam. Package REFoam. Package RE
-
39.1517305426 LH Panel. Package SCLH Panel. Package SC
-
40517306107 Side Panel Hub Cap Lh. Package RESide Panel Hub Cap Lh. Package RE
-
41517305253 LH PanelLH Panel
-
42250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
43250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
44517305515 Guide PlateGuide Plate
-
45517305254 GrillGrill
-
46517305488 FoamFoam
-
47517305489 FoamFoam
-
48517305490 FoamFoam
-
49517305315 Lock Body Rh.Lock Body Rh.
-
50517306019 Lock ArmLock Arm
-
51517305317 Lock SpringLock Spring
-
52205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
53517305319 Lock Body Lh.Lock Body Lh.
-
54517306019 Lock ArmLock Arm
-
55517305317 Lock SpringLock Spring
-
56205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
57517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
58517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
59250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
60517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
61517305759 Lh Bottom Lock Fixing PartLh Bottom Lock Fixing Part
-
62250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
63517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
64517305452 Bottom Lock SleeveBottom Lock Sleeve
-
65517305323 Side Panel SupportSide Panel Support
-
66390909100 Avex RivetAvex Rivet
-
66.1517305290 LH Arm. Package RELH Arm. Package RE
-
66.2517305293 RH Arm. Package RERH Arm. Package RE
-
66.3517305291 LH Deflector. Package RELH Deflector. Package RE
-
66.4517305294 RH Deflector. Package RERH Deflector. Package RE
-
66.5517306047 Black Lh Cap. Package REBlack Lh Cap. Package RE
-
66.6517306048 Black Rh Cap. Package REBlack Rh Cap. Package RE
-
66.7517305296 Bride. Package REBride. Package RE
-
66.8250000760 Torx Screw Truss Head K50 X 20. Package RETorx Screw Truss Head K50 X 20. Package RE
-
66.9250000724 Torx Screw M5 X 20. Package RETorx Screw M5 X 20. Package RE
-
67517306180 Headlamp. Includes 67 to 71Headlamp. Includes 67 to 71
-
68219400070 CapCap
-
69515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
70219800282 Holder BracketHolder Bracket
-
71219800281 SpringSpring
-
72250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
73250100035 Jack Nut M5Jack Nut M5
-
74250000725 Screw M4 X 16Screw M4 X 16
-
75517305350 CapCap
-
76517304912 Upper Storage Access CoverUpper Storage Access Cover
-
77517304917 Cover LatchCover Latch
-
78517305157 Seal JointSeal Joint
-
79517305095 TrunkTrunk
-
80517304970 Console SupportConsole Support
-
81517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
82517305148 Support Console CapSupport Console Cap
-
86294000973 Friction Tape. Package REFriction Tape. Package RE
