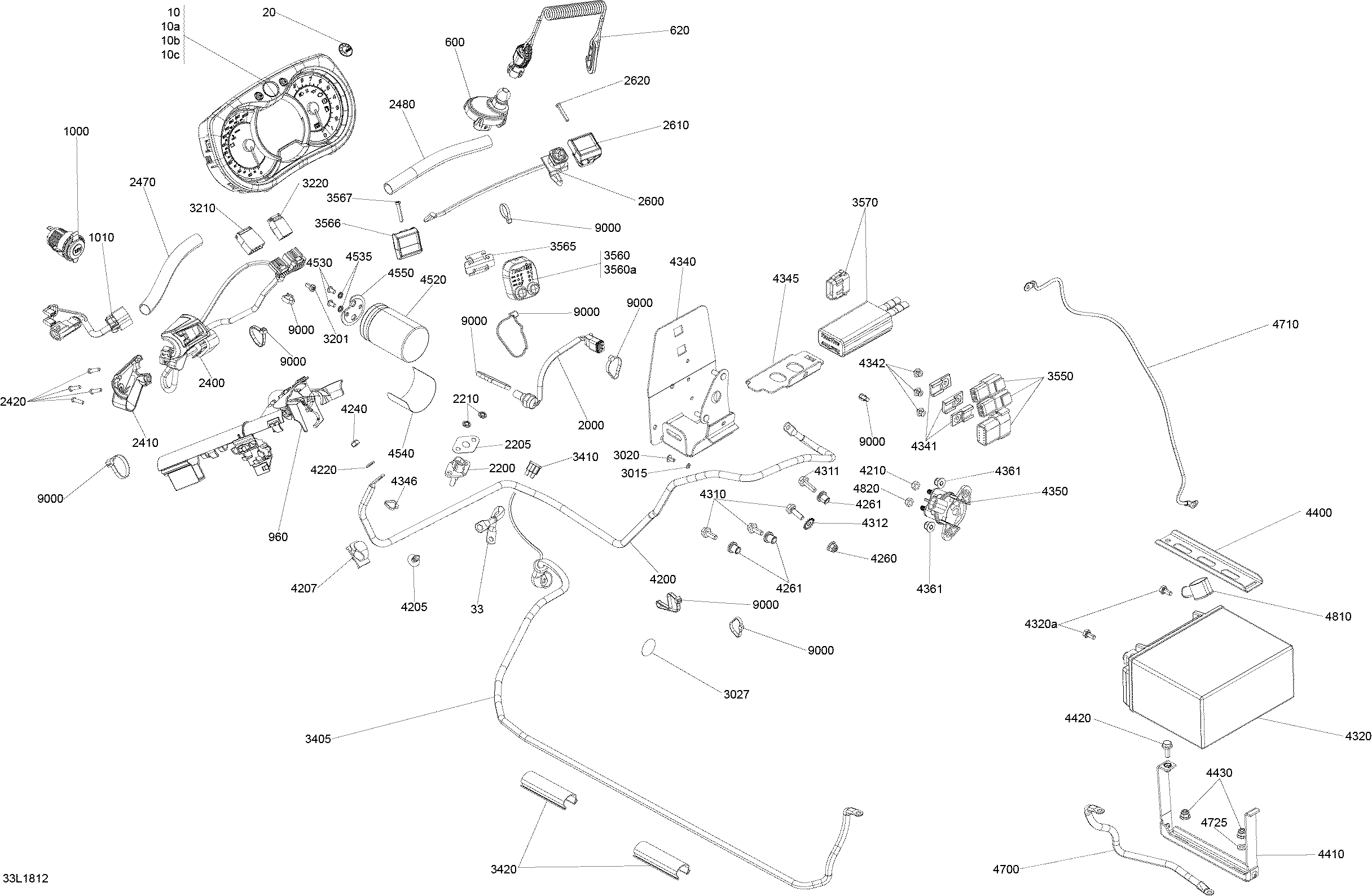

10- Electrical Xtrim - 600HO E-TEC - SC для BRP Lynx XTRIM 600 HO E-TEC - 2018
-
№АртикулНазвание
-
10515177910 Speedometer. Includes 10 to 10cSpeedometer. Includes 10 to 10c
-
10a415129355 Speedometer ButtonSpeedometer Button
-
10b415129348 Gauge RingGauge Ring
-
10c415129349 LensLens
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178225 DESS SwitchDESS Switch
-
620515178288 KeyKey
-
960515177134 Connector PlateConnector Plate
-
1000710001248 Outlet DCOutlet DC
-
1010515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
2000515177813 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400515178197 LH Switch HousingLH Switch Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415129879 Protector TubeProtector Tube
-
2480415129879 Protector TubeProtector Tube
-
2600515177362 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3015234141601 Lock Washer 4 mmLock Washer 4 mm
-
3020250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
3027518325560 Adhesive PatchAdhesive Patch
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3405515177496 Battery Cable With ChargingBattery Cable With Charging
-
3410278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
3420520001525 TrimTrim
-
3550515177997 Harness. Model ECS2Harness. Model ECS2
-
3560515177777 Control Box Ass'y. Model ECS2. Includes 3560 to 3560aControl Box Ass'y. Model ECS2. Includes 3560 to 3560a
-
3560a515177778 Sticker. Model ECS2Sticker. Model ECS2
-
3565515177779 Fastener. Model ECS2Fastener. Model ECS2
-
3566515177310 Kill Switch Support. Model ECS2Kill Switch Support. Model ECS2
-
3567250000263 Torx Screw #8-18. Model ECS2Torx Screw #8-18. Model ECS2
-
3570515177780 Control Box. Model ECS2Control Box. Model ECS2
-
33515177289 Ground WireGround Wire
-
4200515177208 Battery/Starter WireBattery/Starter Wire
-
4205414644300 DartDart
-
4207515177066 ClipClip
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4260233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4261293450275 Insert. Model ECS2Insert. Model ECS2
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4311207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4312250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4320410301203 Battery Ass'y, 18 Amperes. Includes 4320 to 4320aBattery Ass'y, 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4340503194571 ECU Support. Model ECS2ECU Support. Model ECS2
-
4341270000141 Clip. Model ECS2Clip. Model ECS2
-
4342293150037 Avdel Rivet 3/16''. Model ECS2Avdel Rivet 3/16''. Model ECS2
-
4345503194279 ECU Support. Model ECS2ECU Support. Model ECS2
-
4346293750001 Tie-Rap 94 mm. Model ECS2Tie-Rap 94 mm. Model ECS2
-
4350278003012 Starter RelayStarter Relay
-
4361233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4400518327281 Battery StrapBattery Strap
-
4410518327282 Battery StrapBattery Strap
-
4420207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Model ECS2Hex. Flanged Screw M6 X 16, Scotch Grip. Model ECS2
-
4430233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4520515177272 CapacitorCapacitor
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516006206 Capacitor DecalCapacitor Decal
-
4550515177193 CapCap
-
4700515176780 Ground WireGround Wire
-
4710515178052 Ground WireGround Wire
-
4725234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4810570151000 Protection CapProtection Cap
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
