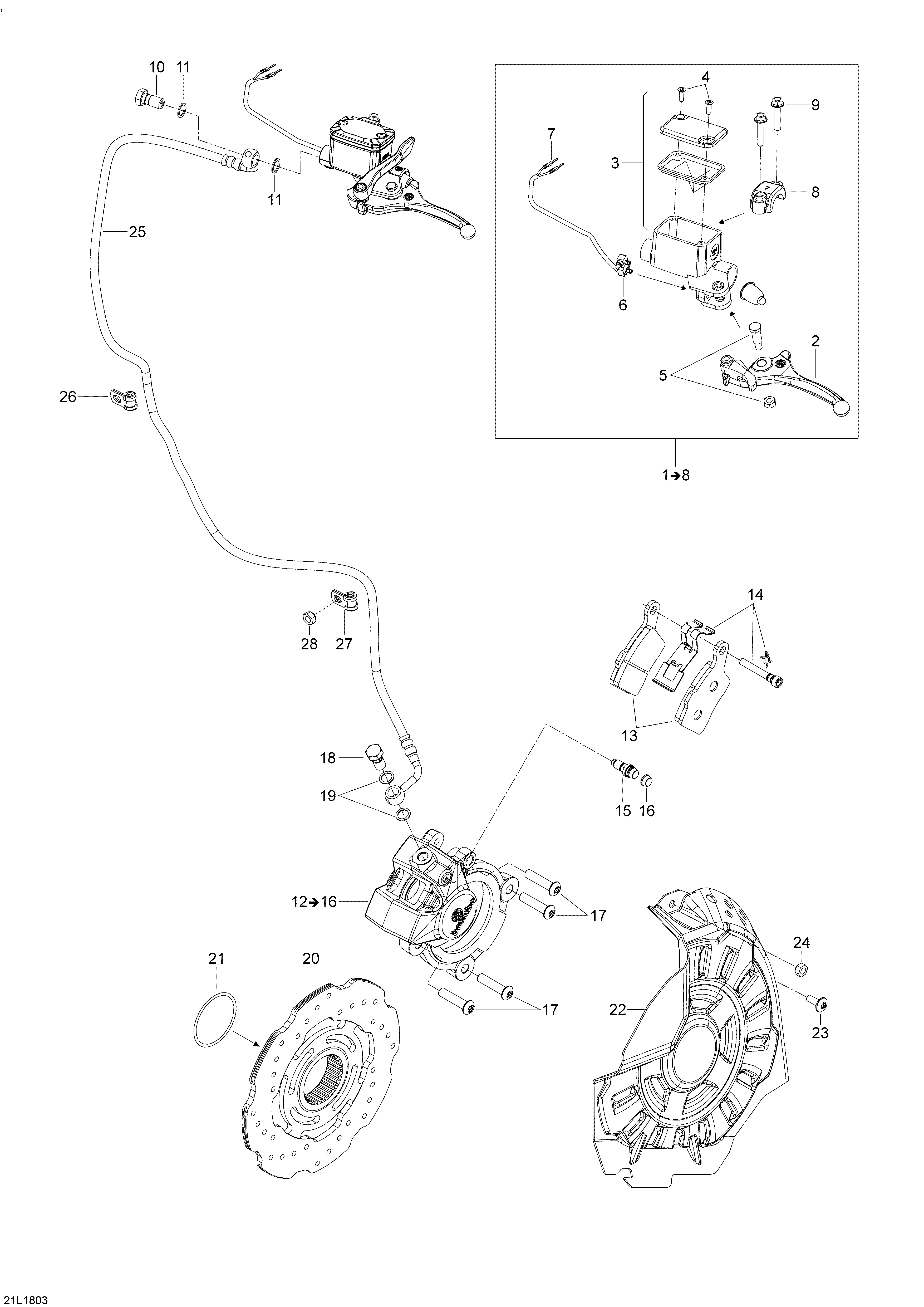

06- Brakes - XTRIM для BRP Lynx XTRIM 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1507032598 Master Cylinder Ass'y. Includes 10 to 10,007Master Cylinder Ass'y. Includes 10 to 10,007
-
2507032476 LeverLever
-
60507032477 Clamp And Screw Kit. Not Shown. Includes 10,002 to 10,003Clamp And Screw Kit. Not Shown. Includes 10,002 to 10,003
-
60250000447 Hex Flanged Screw M6 X 25. Not ShownHex Flanged Screw M6 X 25. Not Shown
-
3507032478 Master Cylinder Reservoir Ass'y. Includes 10,004 to 10,005Master Cylinder Reservoir Ass'y. Includes 10,004 to 10,005
-
4415129356 Screw M4 X 20Screw M4 X 20
-
5415030000 Pin Ass'yPin Ass'y
-
6507032599 MicroswitchMicroswitch
-
8719000049 Clamps KitClamps Kit
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032594 Brake caliper assembly. Package RE. Includes 200 to 200,003Brake caliper assembly. Package RE. Includes 200 to 200,003
-
12507032602 Brake caliper assembly. Includes 200 to 200,003Brake caliper assembly. Includes 200 to 200,003
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
16507032475 BleederBleeder
-
17250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032487 DiskDisk
-
21293300209 O-ringO-ring
-
22507032546 Disk Protector BlackDisk Protector Black
-
23250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
24233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
25507032528 HoseHose
-
26414108400 Open ClampOpen Clamp
-
27503193393 ClampClamp
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
