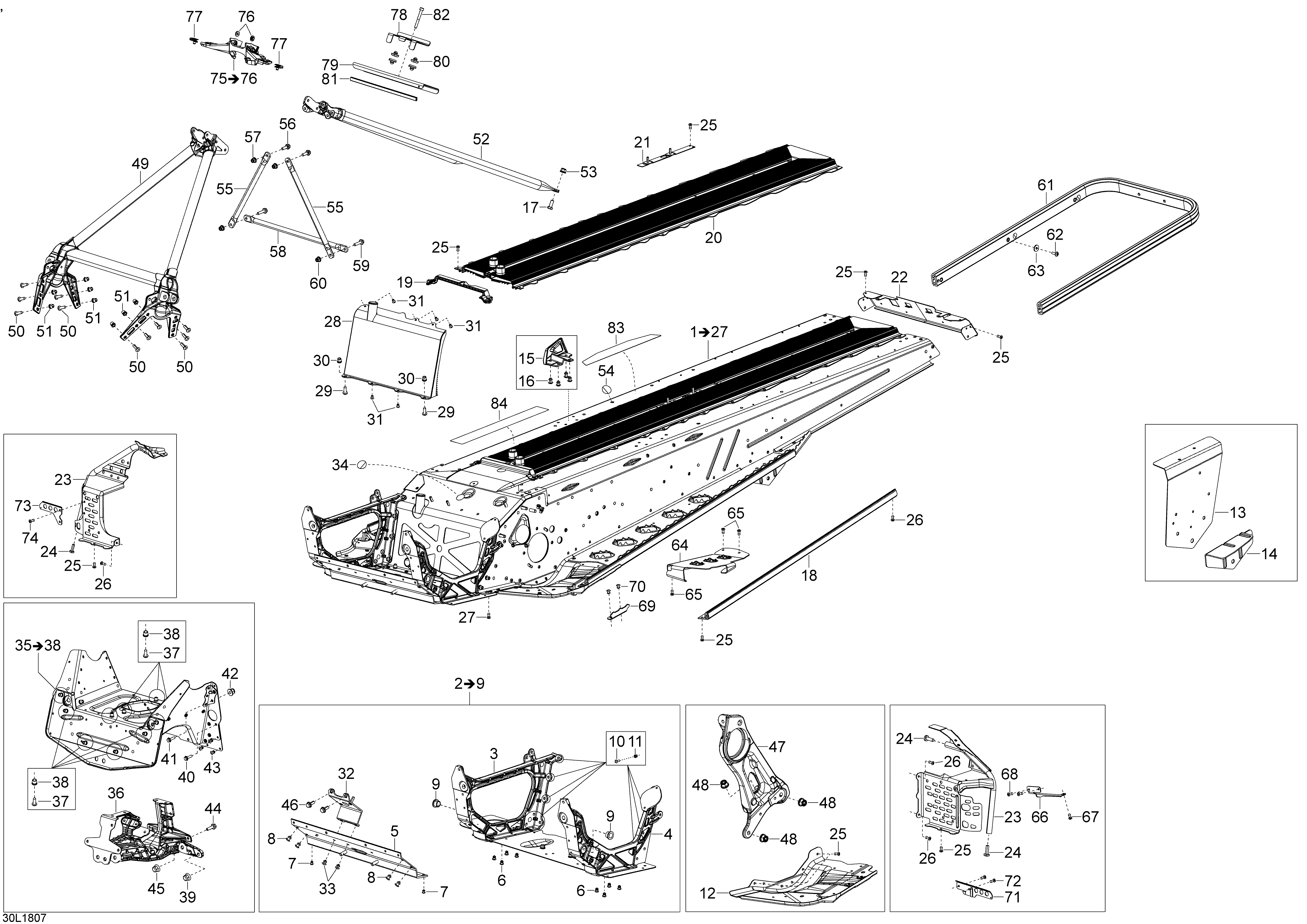

09- Frame XTRIM - 600HO E-TEC для BRP Lynx XTRIM 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1518329738 Black, Frame. Package SC. Includes 1 to 27Black, Frame. Package SC. Includes 1 to 27
-
1518329739 Black, Frame. Package SC - ECS2. Includes 1 to 27Black, Frame. Package SC - ECS2. Includes 1 to 27
-
1518329742 Black, Frame. Package RE. Includes 1 to 27Black, Frame. Package RE. Includes 1 to 27
-
2518327646 Module E. Includes 2 a 9Module E. Includes 2 a 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 Avex RivetAvex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
8.1605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
9505072690 Leg BushingLeg Bushing
-
12518327242 LH, Front, TunnelLH, Front, Tunnel
-
12518327243 RH, Front, TunnelRH, Front, Tunnel
-
12.1518328665 Front, Arm ReinforcementFront, Arm Reinforcement
-
13518327849 Rear Arm Support. Package SCRear Arm Support. Package SC
-
13518328754 LH Rear Arm Support. Package RELH Rear Arm Support. Package RE
-
13518328034 RH Rear Arm Support. Package SCRH Rear Arm Support. Package SC
-
13518328755 Rear Arm Support Xtrim Rerh. Package RERear Arm Support Xtrim Rerh. Package RE
-
14518327848 LH Rear Support. Package SCLH Rear Support. Package SC
-
14518328757 RH Rear Support. Package RERH Rear Support. Package RE
-
14518327847 RH Rear Support. Package SCRH Rear Support. Package SC
-
15518328436 No Paint, RH Rear BaseNo Paint, RH Rear Base
-
15518328435 No Paint, LH Rear BaseNo Paint, LH Rear Base
-
16293150147 Hemlock RivetHemlock Rivet
-
17207182086 Screw-hex.cap Din.933Screw-hex.cap Din.933
-
18518327465 Side ProfileSide Profile
-
19518326656 SealSeal
-
20518325667 Rear Radiator Ass'y. Package RE. Includes 20 to 20,1Rear Radiator Ass'y. Package RE. Includes 20 to 20,1
-
20518326728 Rear Radiator Ass'y, 146''. Package SC. Includes 20 to 20,1Rear Radiator Ass'y, 146''. Package SC. Includes 20 to 20,1
-
20.1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
22518327240 Rear CapRear Cap
-
23518328940 RH StirupRH Stirup
-
23518328528 LH StirupLH Stirup
-
24250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
24.1293450268 InsertInsert
-
25390909200 Avex RivetAvex Rivet
-
26390909100 Avex RivetAvex Rivet
-
27293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
28518326485 Front RadiatorFront Radiator
-
31390909200 Avex RivetAvex Rivet
-
32518325943 MAG Engine SupportMAG Engine Support
-
33293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
34518325560 Adhesive PatchAdhesive Patch
-
35518328392 Cross Member. Includes 35 to 38Cross Member. Includes 35 to 38
-
36518327487 Front Suspension SupportFront Suspension Support
-
36.1390909200 Avex Rivet. Package REAvex Rivet. Package RE
-
37207662044 Hex. Flanged Screw M6 X 20. Package SCHex. Flanged Screw M6 X 20. Package SC
-
38233261414 Hex. Flanged Elastic Nut M6. Package SCHex. Flanged Elastic Nut M6. Package SC
-
39233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
40210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
41207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
42233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
43293150179 Monobolt Rivet 4.8Monobolt Rivet 4.8
-
46207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
90293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
47518327460 Driven Pulley SupportDriven Pulley Support
-
48233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
49518327565 Front MemberFront Member
-
52518327237 Black, Member-rear. Includes 52 to 52,11Black, Member-rear. Includes 52 to 52,11
-
52.1518326685 Member-rear. Includes 52,1 to 52,11Member-rear. Includes 52,1 to 52,11
-
52.11518326559 Rear MemberRear Member
-
53233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
54518325560 Adhesive PatchAdhesive Patch
-
55518325114 Upper Column SupportUpper Column Support
-
56207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
57233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
58518325115 Center Column SupportCenter Column Support
-
59207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
60233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
61518328086 BLack, Rear Bumper. Package SCBLack, Rear Bumper. Package SC
-
61518328993 Black, Rear Bumper. Package REBlack, Rear Bumper. Package RE
-
62250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
63224061201 Flat WasherFlat Washer
-
64518327979 Black, LH FootrestBlack, LH Footrest
-
64518327980 Black, RH FootrestBlack, RH Footrest
-
6536005 RivetRivet
-
66518328079 Black, Brakecover SupportBlack, Brakecover Support
-
67390909200 Avex RivetAvex Rivet
-
68293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
69518328543 Black, Side GripBlack, Side Grip
-
70293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
71518327613 LH Spring Support PlateLH Spring Support Plate
-
72293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
73518327614 RH Spring Support PlateRH Spring Support Plate
-
74390909200 Avex RivetAvex Rivet
-
75518327145 Sub A SupportSub A Support
-
77250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
78513033746 Upper Support PlateUpper Support Plate
-
79513033747 Lower Support Plate. Includes 79 to 79,1Lower Support Plate. Includes 79 to 79,1
-
79.1605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
80605452114 PlugPlug
-
82205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
83516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
84516007041 Fuel Tank Protection Decal, LargeFuel Tank Protection Decal, Large
