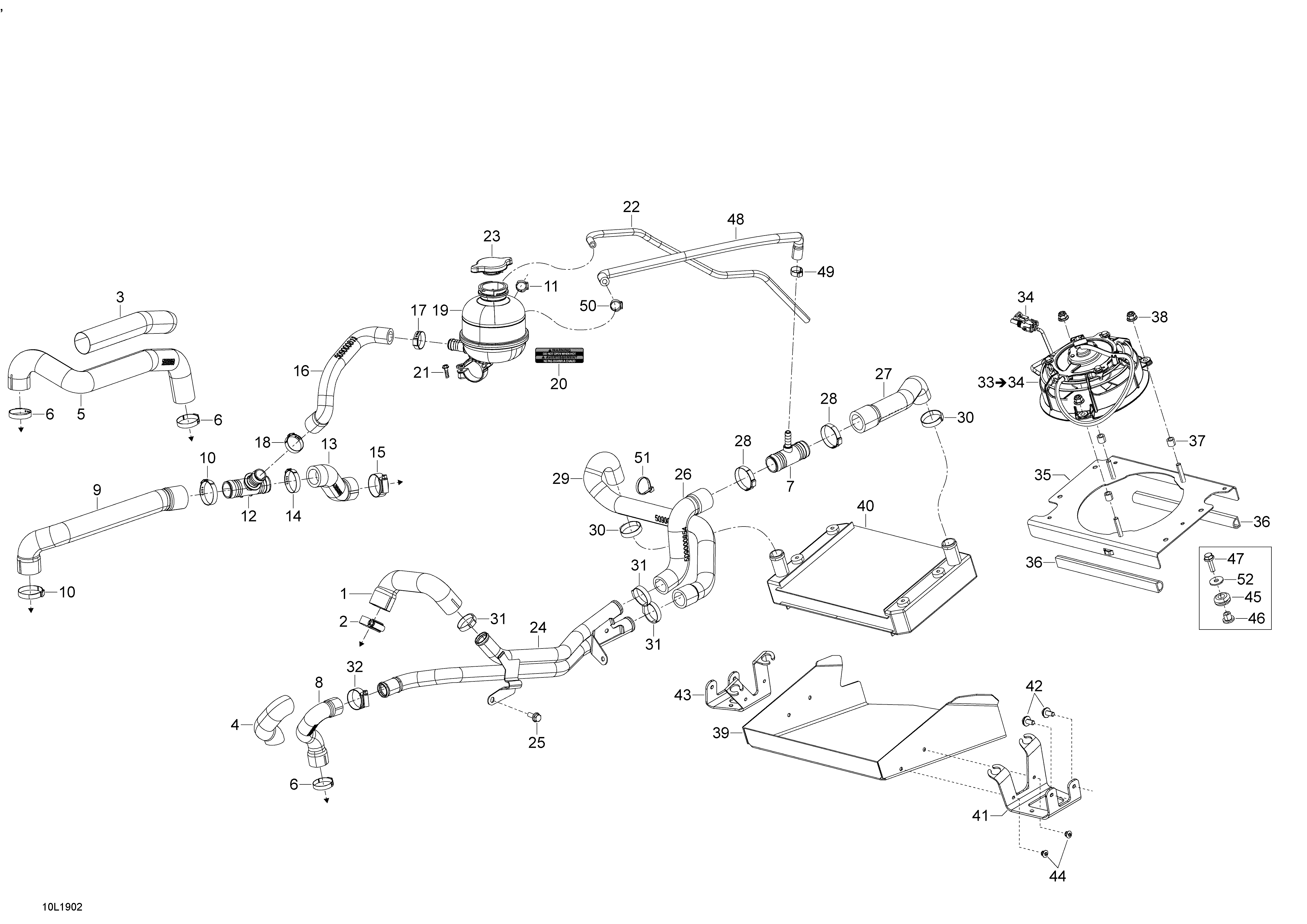

01- Cooling - Adventure LX - 600 ACE для BRP Lynx 001 - Adventure LX 600 ACE - 2019
-
№АртикулНазвание
-
1509000932 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
3509000513 Protector Tube 32 mmProtector Tube 32 mm
-
4509000513 Protector Tube 32 mmProtector Tube 32 mm
-
5509000859 Radiator HoseRadiator Hose
-
6509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
7509000510 T-FittingT-Fitting
-
8509000888 Engine Outlet HoseEngine Outlet Hose
-
9509001062 Radiator Return HoseRadiator Return Hose
-
10509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
11293650025 Oetiker Gear ClampOetiker Gear Clamp
-
12509000372 T-FittingT-Fitting
-
13509000921 Radiator HoseRadiator Hose
-
14509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
15509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
16509001063 Filling HoseFilling Hose
-
17509000442 Oeticker Gear Clamp, 25.6-706ROeticker Gear Clamp, 25.6-706R
-
18293650099 Crimp ClampCrimp Clamp
-
19509000875 Cooling TankCooling Tank
-
20516005904 Warning DecalWarning Decal
-
21241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
22509000775 HoseHose
-
23509000180 Pressure CapPressure Cap
-
24509000800 Water PipeWater Pipe
-
25207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
26509000854 Radiator HoseRadiator Hose
-
27509000862 Radiator HoseRadiator Hose
-
28509000162 Gear ClampGear Clamp
-
60509000181 Oetiker Gear ClampOetiker Gear Clamp
-
29509000855 Radiator HoseRadiator Hose
-
30293650099 Crimp ClampCrimp Clamp
-
31293650141 Oetiker Gear ClampOetiker Gear Clamp
-
60509000735 ClampClamp
-
32509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
33709200573 FanFan
-
35509000928 Fan Support. Includes 3310 to 3310aFan Support. Includes 3310 to 3310a
-
60250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
36509000823 D- Seal 12 X15D- Seal 12 X15
-
37605453745 BushingBushing
-
38233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
39509000893 Air DeflectorAir Deflector
-
40509000488 RadiatorRadiator
-
41509000889 RH SupportRH Support
-
42250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
43509000890 LH SupportLH Support
-
44390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
45293720053 GrommetGrommet
-
46293900100 BushingBushing
-
47207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
48509000860 Breather HoseBreather Hose
-
49293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
50293650025 Oetiker Gear ClampOetiker Gear Clamp
-
51414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
52250200082 Flat WasherFlat Washer
