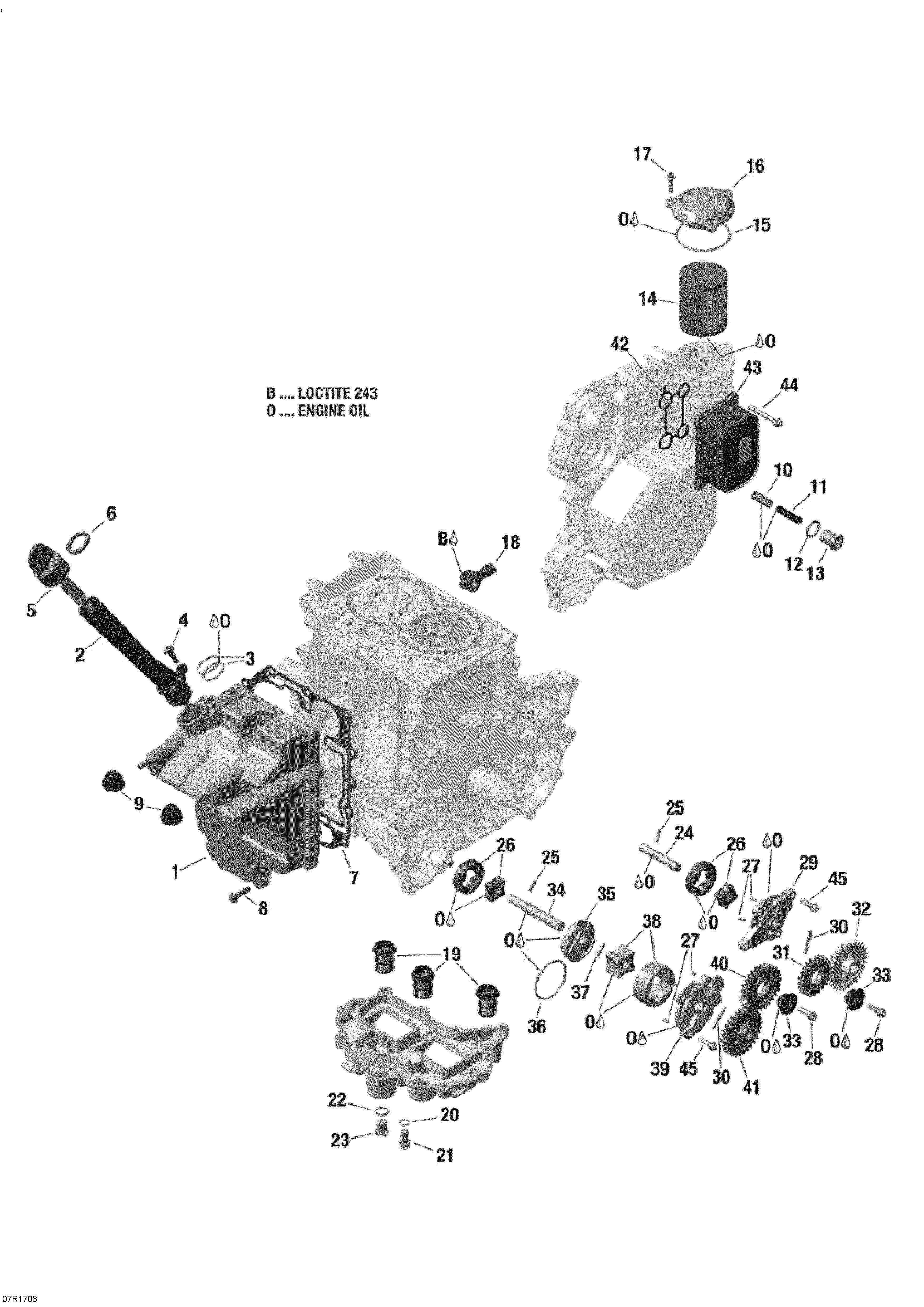

02- Engine Lubrication - 600 ACE для BRP Lynx 001 - Adventure LX 600 ACE - 2019

№

Артикул

Название
1

420956210 Oil Sump Cover

Oil Sump Cover

10 550 ₽
2

420656900 Oil Filler Tube

Oil Filler Tube

690 ₽
3

420430440 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

340 ₽
4

420441386 Torx TR Screw M6 x 20. Tightening Torque 7 Nm +/- 12%

Torx TR Screw M6 x 20. Tightening Torque 7 Nm +/- 12%

550 ₽
5

420856665 Oil Dipstick. Includes 5 To 6

Oil Dipstick. Includes 5 To 6

1 280 ₽
6

420431790 Gasket Ring. Included In Gasket Kit

Gasket Ring. Included In Gasket Kit

3 000 ₽
7

420431770 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

6 160 ₽
8

420841549 Torx TR Screw M6 x 25. Tightening Torque 11 Nm +/- 12%

Torx TR Screw M6 x 25. Tightening Torque 11 Nm +/- 12%

200 ₽
9

420860150 Rubber Grommet

Rubber Grommet

1 890 ₽
10

420256517 Pressure Regulating Piston

Pressure Regulating Piston

1 140 ₽
11

420239445 Spring

Spring

6 780 ₽
12

420430622 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

1 540 ₽
13

420441372 Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%

Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%

3 090 ₽
14

420956124 Oil Filter

Oil Filter

15 400 ₽
15

420650500 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

2 210 ₽
16

420612132 Oil Filter Cover

Oil Filter Cover

3 280 ₽
17

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
18

420256915 Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%

Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%

3 780 ₽
19

420656680 Oil Sieve

Oil Sieve

3 780 ₽
20

420950141 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

790 ₽
21

420440852 Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%

Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%

1 450 ₽
22

420250640 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

540 ₽
23

420241700 Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%

Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%

1 130 ₽
24

420820120 Oil Pump Shaft

Oil Pump Shaft

4 130 ₽
25

420232731 Needle Pin

Needle Pin

1 450 ₽
26

420256348 Rotor Set

Rotor Set

38 220 ₽
27

420929075 Needle Pin

Needle Pin

740 ₽
28

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
29

420911080 Oil Pump Cover

Oil Pump Cover

10 050 ₽
30

420232431 Needle Pin B 4 x 29,8

Needle Pin B 4 x 29,8

1 690 ₽
31

420835054 Intermediate Gear (22 T)

Intermediate Gear (22 T)

1 710 ₽
32

420834882 Oil Pump Gear (29 T)

Oil Pump Gear (29 T)

990 ₽
33

420947390 Graduated Spacer

Graduated Spacer

2 320 ₽
34

420837916 Oil Pump Shaft

Oil Pump Shaft

8 720 ₽
35

420611950 Oil Pump Cover

Oil Pump Cover

5 160 ₽
36

420631830 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

550 ₽
37

420632220 Needle Pin

Needle Pin

1 540 ₽
38

420256836 Rotor Set

Rotor Set

25 130 ₽
39

420611980 Oil Pump Cover

Oil Pump Cover

3 910 ₽
40

420835321 Intermediate Gear (26 T)

Intermediate Gear (26 T)

3 990 ₽
41

420834887 Oil Pump Gear (28 T)

Oil Pump Gear (28 T)

990 ₽
42

420431870 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

410 ₽
43

420656698 Oil Water Heat Exchanger

Oil Water Heat Exchanger

30 630 ₽
44

420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

360 ₽
45

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
