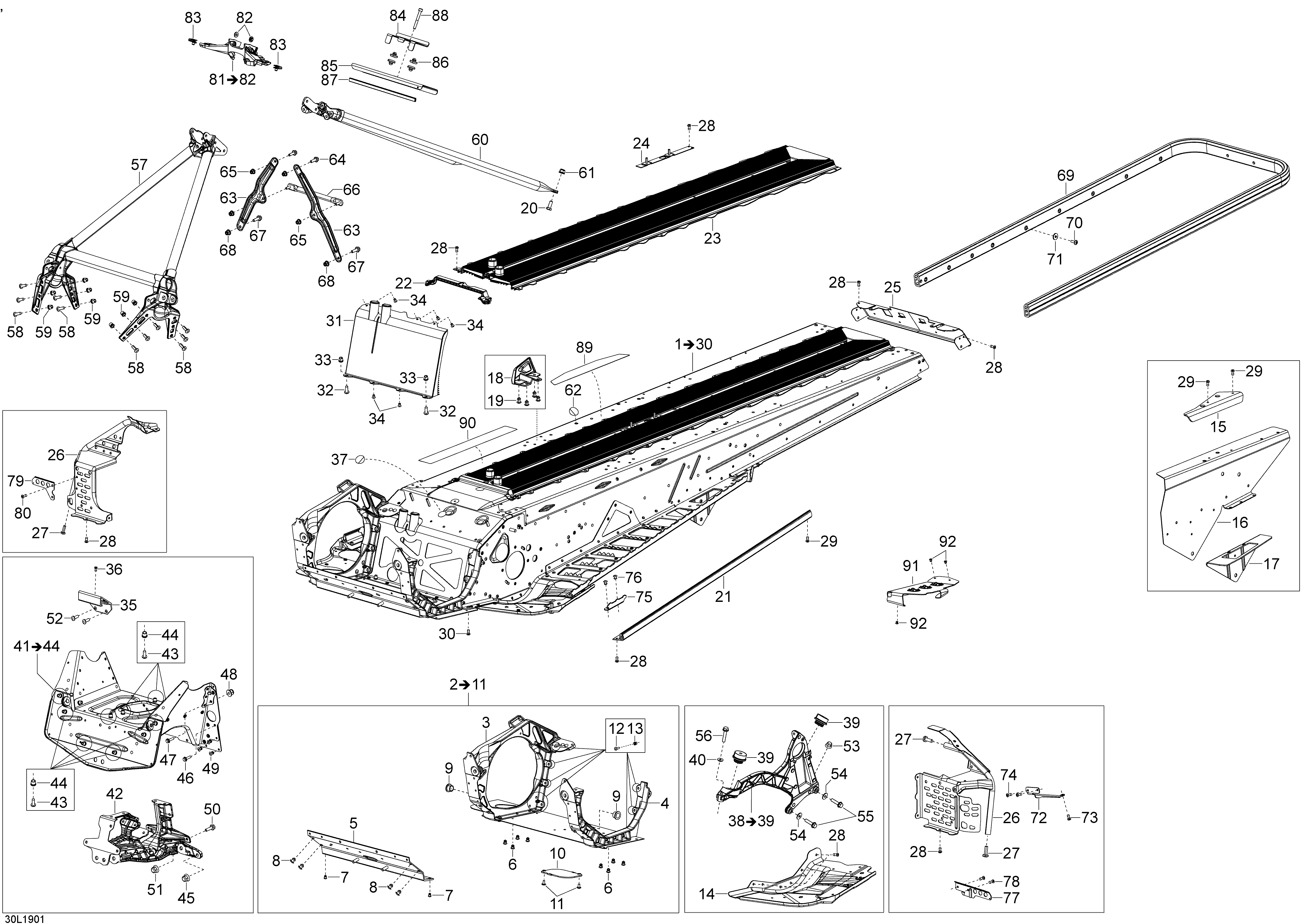

09- Frame Adventure - 600 ACE для BRP Lynx 001 - Adventure LX 600 ACE - 2019
-
№АртикулНазвание
-
1518329732 Black, Frame. Includes 1 to 30Black, Frame. Includes 1 to 30
-
2518327754 Module E. Includes 2 a 11Module E. Includes 2 a 11
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6390909100 Avex RivetAvex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505072690 Leg BushingLeg Bushing
-
11250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
100605636003 Clinch Nut M6 Hexsert. Not ShownClinch Nut M6 Hexsert. Not Shown
-
14518327242 LH, Front, TunnelLH, Front, Tunnel
-
14518327243 RH, Front, TunnelRH, Front, Tunnel
-
14.1518328665 Front, Arm ReinforcementFront, Arm Reinforcement
-
15510006002 LH Backrest ReinforcementLH Backrest Reinforcement
-
15510006003 RH Backrest ReinforcementRH Backrest Reinforcement
-
16518327900 Rear Arm SupportRear Arm Support
-
16518328087 RH Rear Arm SupportRH Rear Arm Support
-
17518327901 Rear SupportRear Support
-
18518328436 No Paint, RH Rear BaseNo Paint, RH Rear Base
-
18518328435 No Paint, LH Rear BaseNo Paint, LH Rear Base
-
19293150147 Hemlock RivetHemlock Rivet
-
20207182086 Screw-hex.cap Din.933Screw-hex.cap Din.933
-
21518327465 Side ProfileSide Profile
-
21.1293450275 InsertInsert
-
22518326656 SealSeal
-
23518325667 Rear Radiator Ass'y. Includes 23 to 23,1Rear Radiator Ass'y. Includes 23 to 23,1
-
23.1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
25518327240 Rear CapRear Cap
-
26518328940 RH StirupRH Stirup
-
26518328528 LH StirupLH Stirup
-
27250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
27.1293450268 Insert M5 X 0.8Insert M5 X 0.8
-
28390909200 Avex RivetAvex Rivet
-
29390909100 Avex RivetAvex Rivet
-
30293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
31518327907 Front Radiator Ass'yFront Radiator Ass'y
-
34390909200 Avex RivetAvex Rivet
-
35518326178 Engine SupportEngine Support
-
36293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
37518325560 Adhesive PatchAdhesive Patch
-
95233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
38518327535 Brace Ass'y. Includes 38 to 39Brace Ass'y. Includes 38 to 39
-
39512060295 Rubber MountRubber Mount
-
40234281474 Conical Spring Washer M8Conical Spring Washer M8
-
41518328393 Cross Member. Includes 41 to 42Cross Member. Includes 41 to 42
-
42518327487 Front Suspension SupportFront Suspension Support
-
45233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
46210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
47207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
48233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
49293150179 Monobolt Rivet 4.8Monobolt Rivet 4.8
-
52207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
96414644300 DartDart
-
53233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
54234281474 Conical Spring Washer M8Conical Spring Washer M8
-
55205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
56207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
57518327565 Front MemberFront Member
-
60518327237 Black, Member-rear. Includes 60 to 60,11Black, Member-rear. Includes 60 to 60,11
-
60.1518326685 Member-rear. Includes 60,1 to 60,11Member-rear. Includes 60,1 to 60,11
-
60.11518326559 Rear MemberRear Member
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62518325560 Adhesive PatchAdhesive Patch
-
63518326848 Upper Column SupportUpper Column Support
-
64207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
65233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
66518326355 Center Column SupportCenter Column Support
-
67207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
68233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
69518328993 Black, Rear BumperBlack, Rear Bumper
-
70250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
71224061201 Flat WasherFlat Washer
-
91518327979 Black, LH FootrestBlack, LH Footrest
-
91518327980 Black, RH FootrestBlack, RH Footrest
-
9236005 RivetRivet
-
72518328079 Black, Brakecover SupportBlack, Brakecover Support
-
73390909200 Avex RivetAvex Rivet
-
74293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
75518328543 Black, Side GripBlack, Side Grip
-
76293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
77518327613 LH Spring Support PlateLH Spring Support Plate
-
78293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
79518327614 RH Spring Support PlateRH Spring Support Plate
-
80390909200 Avex RivetAvex Rivet
-
81518327145 Sub A SupportSub A Support
-
83250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
84513033746 Upper Support PlateUpper Support Plate
-
85513033747 Lower Support Plate. Includes 85 to 85,1Lower Support Plate. Includes 85 to 85,1
-
85.1605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
86605452114 PlugPlug
-
88205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
89516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
90516007041 Fuel Tank Protection Decal, LargeFuel Tank Protection Decal, Large
