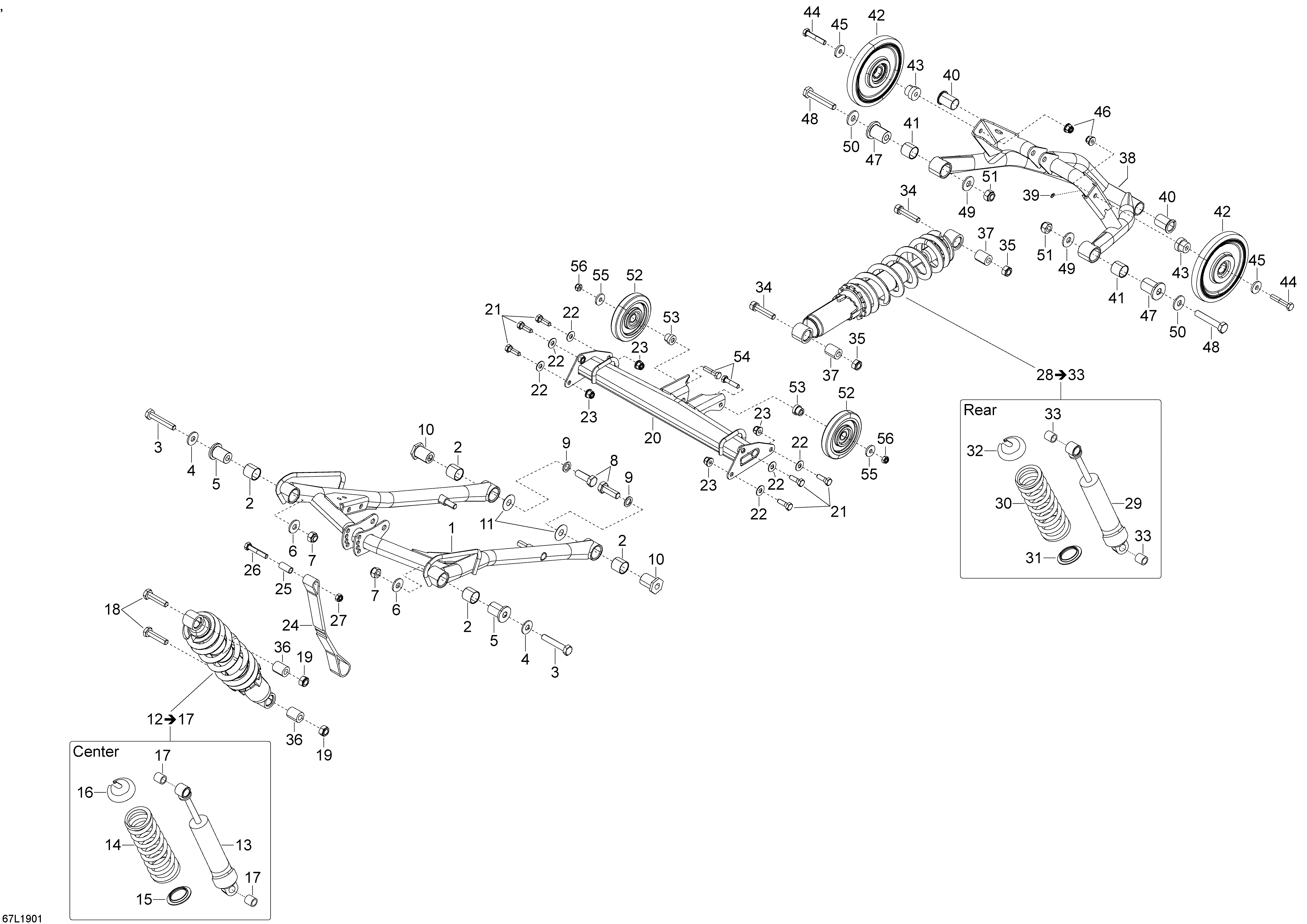

08- Rear Suspension - Upper Section для BRP Lynx 001 - Adventure LX 600 ACE - 2019
-
№АртикулНазвание
-
1503193561 Front ArmFront Arm
-
2503191554 BushingBushing
-
3250000696 Hexagonal ScrewHexagonal Screw
-
4503191926 WasherWasher
-
5503194580 Upper Axle SleeveUpper Axle Sleeve
-
6503191926 WasherWasher
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
9503192491 WasherWasher
-
10503194579 Lower Axle SleeveLower Axle Sleeve
-
11503190656 WasherWasher
-
13503192369 ShockShock
-
14503192358 White Spring 237 mmWhite Spring 237 mm
-
15230078 Adjusting CamAdjusting Cam
-
16230076 Spring SeatSpring Seat
-
1731094 CushionCushion
-
18207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
19232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20503193623 Middle BeamMiddle Beam
-
21250000556 Hexagonal ScrewHexagonal Screw
-
22503192494 WasherWasher
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24605355116 Limiter StrapLimiter Strap
-
25605455335 SleeveSleeve
-
26207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
27232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
29503193518 ShockShock
-
30605625009 SpringSpring
-
31230078 Adjusting CamAdjusting Cam
-
32230076 Spring SeatSpring Seat
-
3331094 CushionCushion
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
365446652 BushingBushing
-
375446652 BushingBushing
-
38503193571 Rear ArmRear Arm
-
39408200700 Grease FittingGrease Fitting
-
40503191640 CushionCushion
-
41503191554 BushingBushing
-
42503193852 Idler Wheel. Includes 42 to 42bIdler Wheel. Includes 42 to 42b
-
42a503190396 Ball BearingBall Bearing
-
42b415129371 Retaining RingRetaining Ring
-
43605454461 SleeveSleeve
-
44207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
4520077 M8 WasherM8 Washer
-
46233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
47503194580 Upper Axle SleeveUpper Axle Sleeve
-
48250000696 Hexagonal ScrewHexagonal Screw
-
49503191926 WasherWasher
-
50503191926 WasherWasher
-
51233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
52572043500 Idler WheelIdler Wheel
-
53503193330 SleeveSleeve
-
54207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
5520077 M8 WasherM8 Washer
-
56232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
