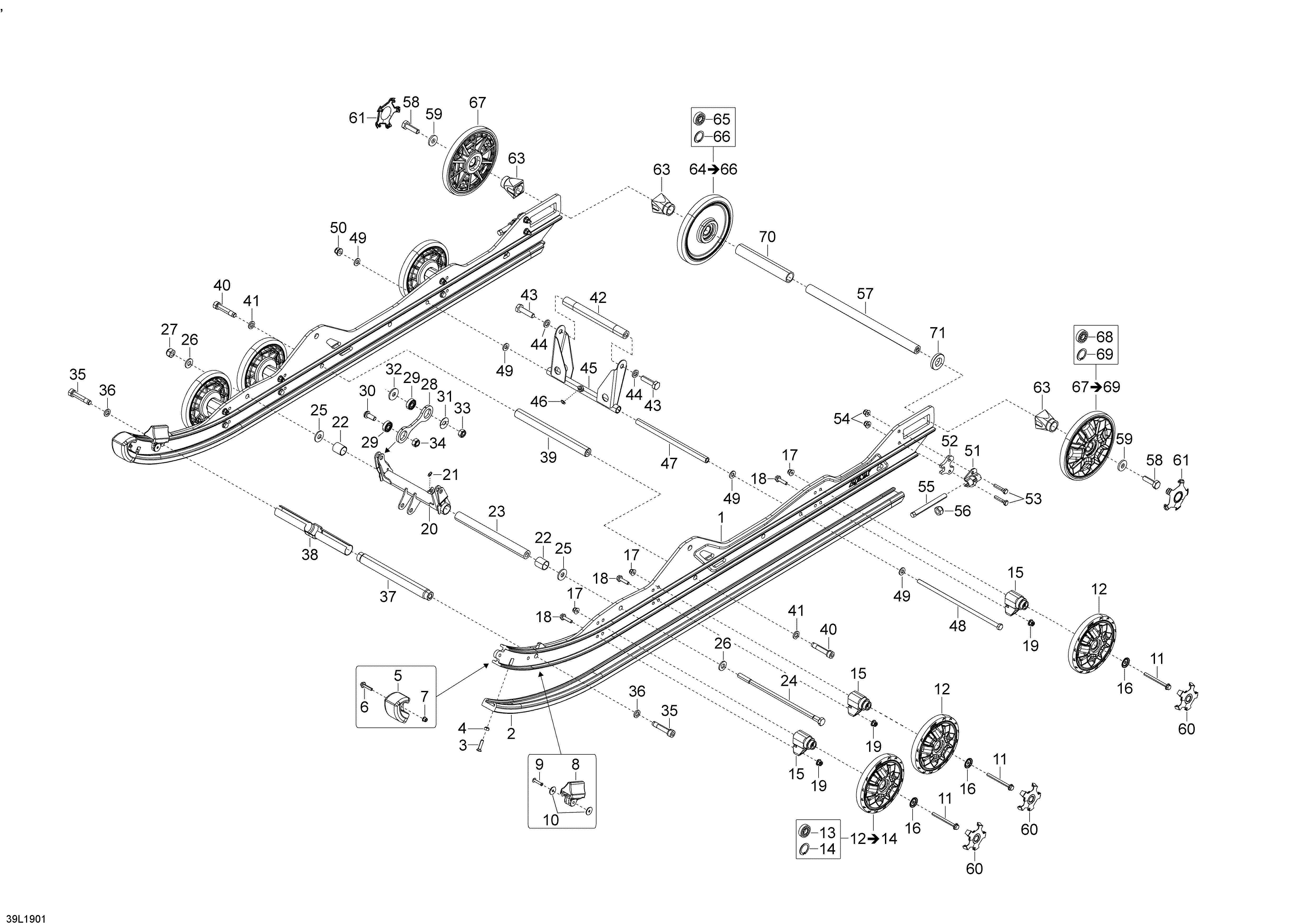

08- Rear Suspension - Lower Section для BRP Lynx 001 - Adventure LX 600 ACE - 2019
-
№АртикулНазвание
-
1503193812 LH RunnerLH Runner
-
1503193916 RH RunnerRH Runner
-
2503191499 Black Slider Shoe 146''Black Slider Shoe 146''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
8503193504 Rubber StopperRubber Stopper
-
9293150224 Rivet Pop 3/16Rivet Pop 3/16
-
10503191273 WasherWasher
-
11207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
12503193734 Wheel-141mm. Includes 12 to 13Wheel-141mm. Includes 12 to 13
-
13503190396 Ball BearingBall Bearing
-
15503193894 Casted SupportCasted Support
-
16503191820 Wheel Cup M6Wheel Cup M6
-
17233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
19233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20503194799 Front SwingFront Swing
-
21408200700 Grease FittingGrease Fitting
-
22503193822 BushingBushing
-
23503193893 Lower ShaftLower Shaft
-
24503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
25503191926 WasherWasher
-
26250200138 WasherWasher
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28605254159 Connecting RodConnecting Rod
-
29503194696 BearingBearing
-
30205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
3125004 Cup SpringCup Spring
-
32234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505054 Socket ScrewSocket Screw
-
36503192496 WasherWasher
-
37503195015 Limiter Strap ShaftLimiter Strap Shaft
-
38503194867 Holder, Limiter StrapHolder, Limiter Strap
-
395343471 ShaftShaft
-
40205505054 Socket ScrewSocket Screw
-
41503192496 WasherWasher
-
42503193638 Shaft-lowerShaft-lower
-
43207204044 Hexagonal ScrewHexagonal Screw
-
44503192496 WasherWasher
-
45503194342 Rear SwingRear Swing
-
46408200700 Grease FittingGrease Fitting
-
47503189156 Pivot Arm AxlePivot Arm Axle
-
48503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
49503192494 WasherWasher
-
50233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
51503192583 TensionerTensioner
-
52503193250 SpacerSpacer
-
53207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
54233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
55230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57503190429 Rear AxleRear Axle
-
58250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
59503190439 WasherWasher
-
60503195347 Red, Wheel CapRed, Wheel Cap
-
61503195350 Red, Wheel CapRed, Wheel Cap
-
63503190428 Rear Wheel SpacerRear Wheel Spacer
-
64503192140 Black, Wheel Ass'y, 165 mm. Includes 64 to 66Black, Wheel Ass'y, 165 mm. Includes 64 to 66
-
65503190396 Ball BearingBall Bearing
-
66415129371 Retaining RingRetaining Ring
-
67503193809 Wheel 165mm. Includes 67 to 69Wheel 165mm. Includes 67 to 69
-
68503190396 Ball BearingBall Bearing
-
69415129371 Retaining RingRetaining Ring
-
70503190430 SpacerSpacer
-
71503190432 WasherWasher
