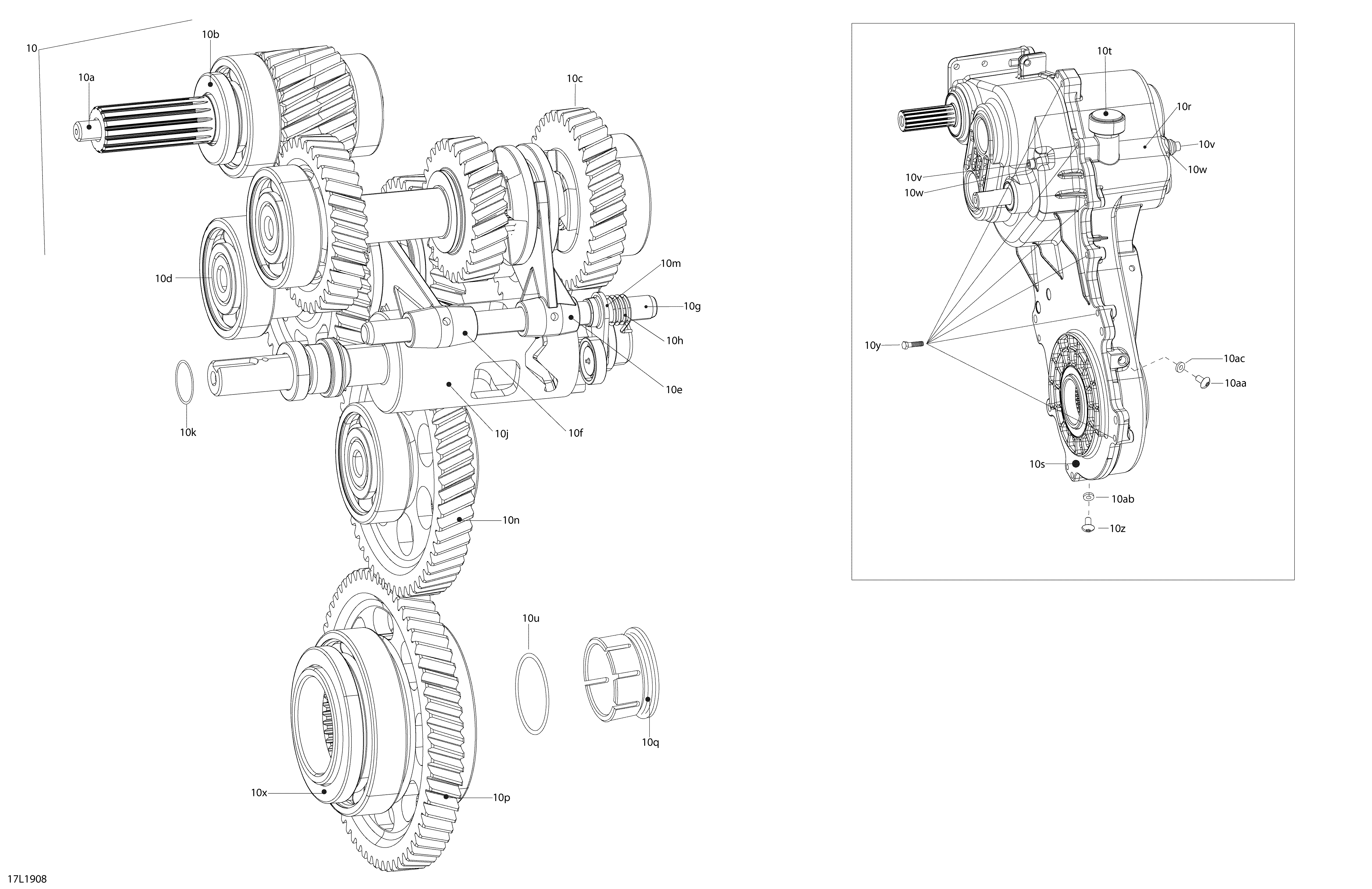

05- Transmission Fast Ratio для BRP Lynx 002 - Commander 800R E-TEC - 2019
-
№АртикулНазвание
-
10619230078 Transmission Ass'y (Fast Ratio). Includes 10 to 10acTransmission Ass'y (Fast Ratio). Includes 10 to 10ac
-
10a619230009 Countershaft Ass'yCountershaft Ass'y
-
10b619230010 Oil sealOil seal
-
10c619230053 Main Shaft Ass'yMain Shaft Ass'y
-
10d619230071 Reverse Shaft Ass'y (Fast Ratio)Reverse Shaft Ass'y (Fast Ratio)
-
10e619230055 Fork, ForwardsFork, Forwards
-
10f619230015 Fork, reverseFork, reverse
-
10g619230016 ShaftShaft
-
10h619230017 SpringSpring
-
10j619230056 Shifting DrumShifting Drum
-
10k619230079 O-RingO-Ring
-
10m619230021 Locking leverLocking lever
-
10n619230022 Middle gearMiddle gear
-
10p619230023 Lower gearLower gear
-
10q619230070 Magnetic PlugMagnetic Plug
-
10r619230060 Outside CoverOutside Cover
-
10t619230027 Oil PlugOil Plug
-
10u619230069 O-RingO-Ring
-
10v619230029 ScrewScrew
-
10w619230030 WasherWasher
-
10x619230031 Oil sealOil seal
-
10y619230076 Screw M6 x 20Screw M6 x 20
-
10z619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
10aa619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
10ab615580812 Gasket RingGasket Ring
-
10ac619230047 Seal RingSeal Ring
