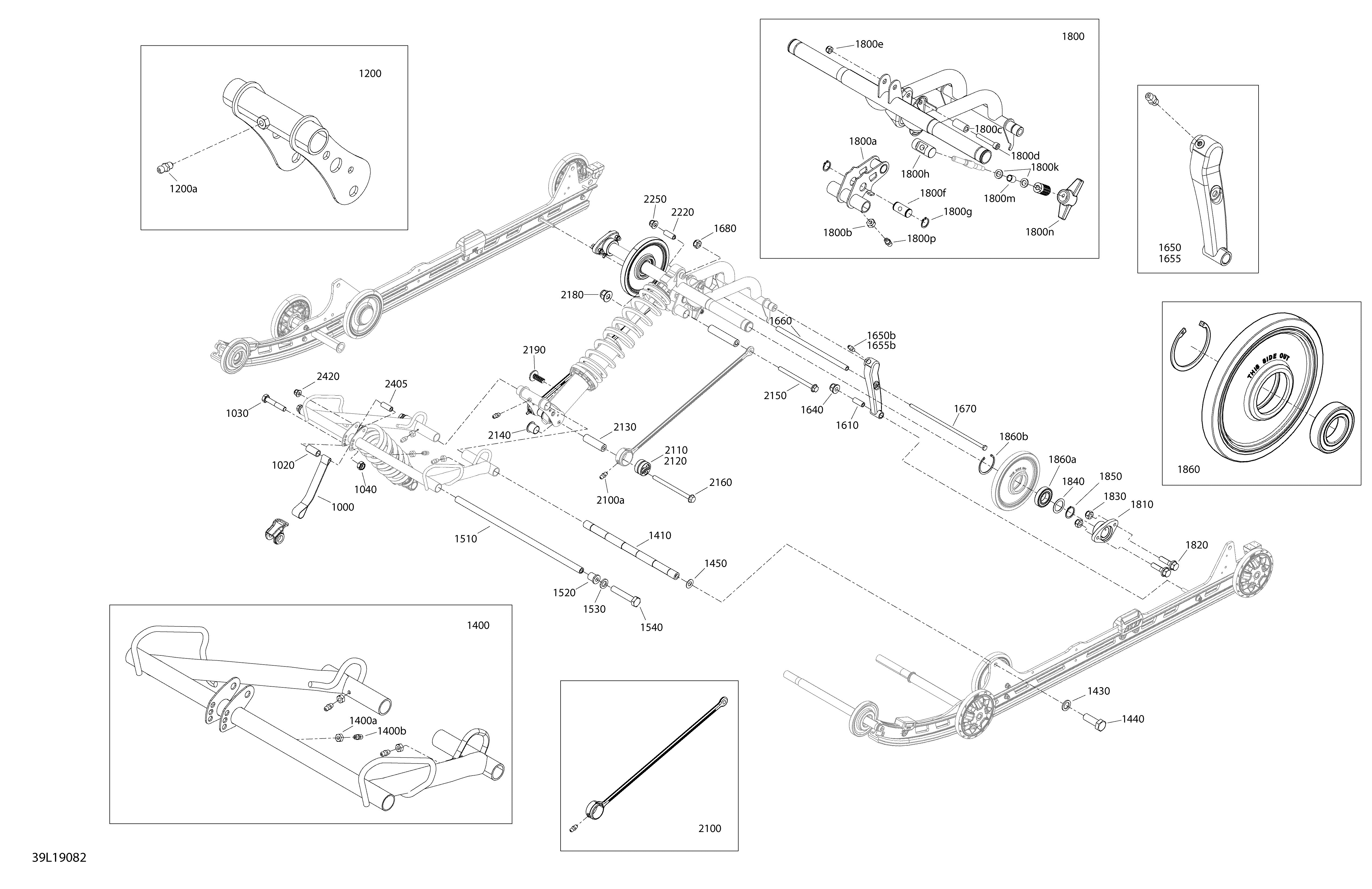

08- Rear Suspensions - 800R E-TEC - Upper Section для BRP Lynx 002 - Commander 800R E-TEC - 2019
-
№АртикулНазвание
-
1000503194940 Strap StopperStrap Stopper
-
1020605455335 SleeveSleeve
-
1030207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
1040232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1200503195305 Rocker Ass'y. Includes 1200 to 1200aRocker Ass'y. Includes 1200 to 1200a
-
1200a408200700 Grease FittingGrease Fitting
-
1400503195304 Front Arm Ass'y. Includes 1400 to 1400bFront Arm Ass'y. Includes 1400 to 1400b
-
1400a232061404 Hexagonal Nut M6Hexagonal Nut M6
-
1400b408200700 Grease FittingGrease Fitting
-
1410503194641 Lower ShaftLower Shaft
-
1430503192491 WasherWasher
-
1440250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
1450250200086 Flat WasherFlat Washer
-
1510503191391 Upper ShaftUpper Shaft
-
1520503189324 BushingBushing
-
1530503189564 WasherWasher
-
1540250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
1610503194726 Pivot Arm AxlePivot Arm Axle
-
1640233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1650503195306 LH Rear Swing Ass'y. Includes 1650 to 1650bLH Rear Swing Ass'y. Includes 1650 to 1650b
-
1650a232061404 Hexagonal Nut M6. Not ShownHexagonal Nut M6. Not Shown
-
1650b408200700 Grease FittingGrease Fitting
-
1655503195307 RH Rear Swing Ass'y. Includes 1655 to 1655bRH Rear Swing Ass'y. Includes 1655 to 1655b
-
1655a232061404 Hexagonal Nut M6. Not ShownHexagonal Nut M6. Not Shown
-
1655b408200700 Grease FittingGrease Fitting
-
1660503195343 SpacerSpacer
-
1670503195342 Bolt M8Bolt M8
-
1680232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1800503195310 Rear Arm Ass'y. Includes 1800 to 1800pRear Arm Ass'y. Includes 1800 to 1800p
-
1800a503194849 Adjuster. Includes 1800a to 1800bAdjuster. Includes 1800a to 1800b
-
1800b232061404 Hexagonal Nut M6Hexagonal Nut M6
-
1800c503195040 SleeveSleeve
-
1800d205085044 Socket Head Screw M8 x 50Socket Head Screw M8 x 50
-
1800e232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1800f503194622 Adjuster NutAdjuster Nut
-
1800g293370095 Snap RingSnap Ring
-
1800h503194623 Adjuster GuideAdjuster Guide
-
1800j232500416 Elastic Stop Nut M10. Not ShownElastic Stop Nut M10. Not Shown
-
1800k503192496 WasherWasher
-
1800m503195189 SleeveSleeve
-
1800n503195185 Adjuster KnobAdjuster Knob
-
1800p408200700 Grease FittingGrease Fitting
-
1810503195042 CushionCushion
-
1820207683054 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1830232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1840503195150 Shim Ring 30X42X1.0Shim Ring 30X42X1.0
-
1850293370098 Snap RingSnap Ring
-
1860503195041 Wheel Ass'y 170 MM. Includes 1860 to 1860bWheel Ass'y 170 MM. Includes 1860 to 1860b
-
1860a503191778 Ball BearingBall Bearing
-
1860b415129598 Retaining RingRetaining Ring
-
2100503195312 Link Rod Ass'y. Includes 2100 to 2100aLink Rod Ass'y. Includes 2100 to 2100a
-
2100a408200700 Grease FittingGrease Fitting
-
2110503195337 Rod ShaftRod Shaft
-
2120503194457 Rod ShaftRod Shaft
-
2130503195030 Front Swing ShaftFront Swing Shaft
-
2140503195184 BushingBushing
-
2150230603044 Screw-Hex.Flanged DIN.6921Screw-Hex.Flanged DIN.6921
-
2160230604044 Hex. Flanged Screw M10 X 140Hex. Flanged Screw M10 X 140
-
2180233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
2190250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
22205446652 BushingBushing
-
2250232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
24055446652 BushingBushing
-
2420232500416 Elastic Stop Nut M10Elastic Stop Nut M10
