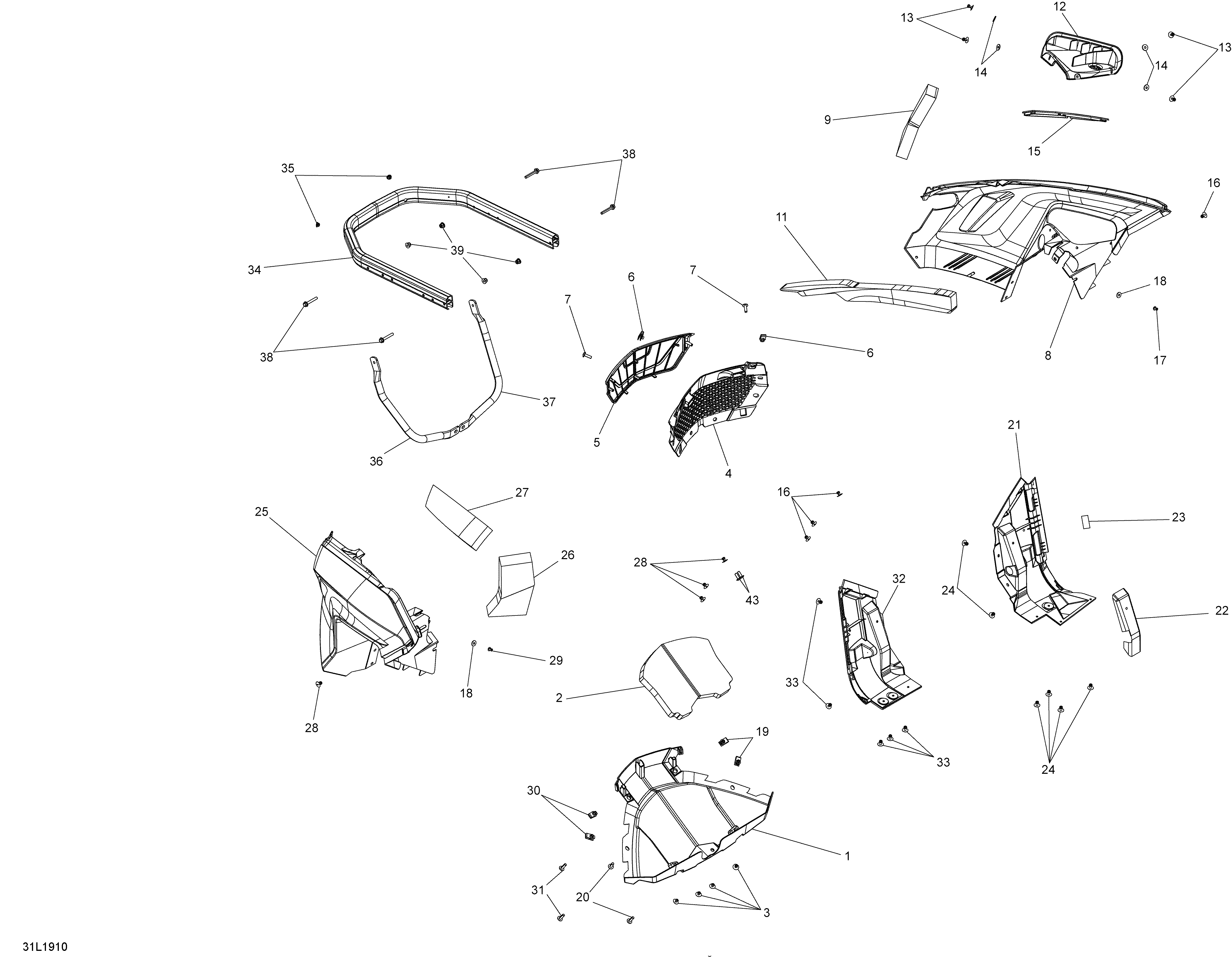

09- Bottom Pan Commander - 800R E-TEC для BRP Lynx 002 - Commander 800R E-TEC - 2019
-
№АртикулНазвание
-
1502008006 Black, Front Bottom PanBlack, Front Bottom Pan
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502007145 GrillGrill
-
5502007393 Front Grill With MeshFront Grill With Mesh
-
50732610072 Push Nut. Not ShownPush Nut. Not Shown
-
6250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
7250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8502007995 RH Bottom Pan Ass'y. Includes 8 to 10RH Bottom Pan Ass'y. Includes 8 to 10
-
9502007526 InsulatorInsulator
-
10517305977 InsulatorInsulator
-
12517306982 RH Bottom Pan Air VentRH Bottom Pan Air Vent
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14250200025 Washer M5Washer M5
-
15517305976 Bottom Pan Grill RHBottom Pan Grill RH
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18234052450 Flat WasherFlat Washer
-
19250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
20250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
21502008008 RH Rear Bottom Pan Ass'y. Includes 21 to 23RH Rear Bottom Pan Ass'y. Includes 21 to 23
-
22502007038 Aluminium FoilAluminium Foil
-
2344110 Aluminum foilAluminum foil
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25502008000 Black, LH Bottom Pan Ass'y. Includes 25 to 27Black, LH Bottom Pan Ass'y. Includes 25 to 27
-
26502007003 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
31250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
32502008012 LH Rear Bottom PanLH Rear Bottom Pan
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34502007761 Bumper, Orange RaceBumper, Orange Race
-
35293730047 Black Dart 8 mmBlack Dart 8 mm
-
36502007014 LH Bumper SupportLH Bumper Support
-
37502007015 RH Bumper SupportRH Bumper Support
-
38207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
39233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
